Bell AH-1Z

The Bell AH-1Z Viper is a twin-engine, tandem-seat, multi-role attack helicopter developed by Bell Textron Inc. as the most advanced member of the legendary Huey family. Purpose-built for the United States Marine Corps (USMC), the AH-1Z is engineered to operate in the harshest maritime conditions and execute precision attack missions across all environments. With cutting-edge avionics, superior survivability features, and a high degree of commonality with the UH-1Y Venom utility helicopter, the AH-1Z is a cornerstone of modern rotary-wing combat operations.

Development and Mission Profile

The AH-1Z was developed to replace older AH-1W SuperCobras in USMC service, incorporating substantial upgrades in performance, avionics, and weapon systems. Designed to meet rigorous USMC readiness requirements, the Viper boasts unmatched flexibility in countering both ground and aerial threats. It can effectively deploy both guided and unguided munitions with high precision, making it a powerful asset in close air support, anti-armor, and air superiority missions.

Design Features and Avionics

The AH-1Z features a fully marinized airframe, designed for shipboard operations and resistance to corrosion in saltwater environments. The aircraft’s glass cockpit—NVG-compatible and identical in the front and rear—reduces crew training requirements and improves mission coordination.

• Helmet Mounted Display: The advanced Optimized TopOwl Helmet Mounted Sight and Display system delivers mission-critical data directly to the pilots while reducing cockpit workload.

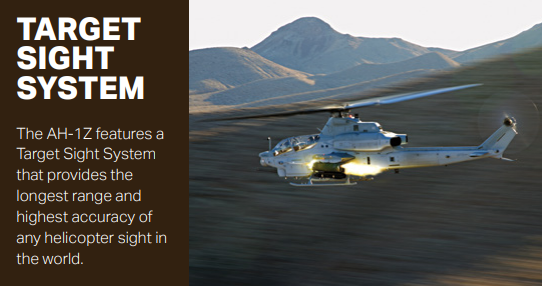

• Target Sight System (TSS): Recognized as the longest-range and most accurate helicopter sighting system in the world.
• Electronic Warfare Suite: Includes robust Electronic Warfare Self Protection (EWSP) systems and ballistically hardened components for enhanced crew survivability.
• Crew Protection: Energy-attenuating seats and reinforced airframe structure increase survivability against threats.

With 85% component commonality with the UH-1Y, the AH-1Z streamlines maintenance, logistics, and pilot training, significantly reducing overall lifecycle costs.

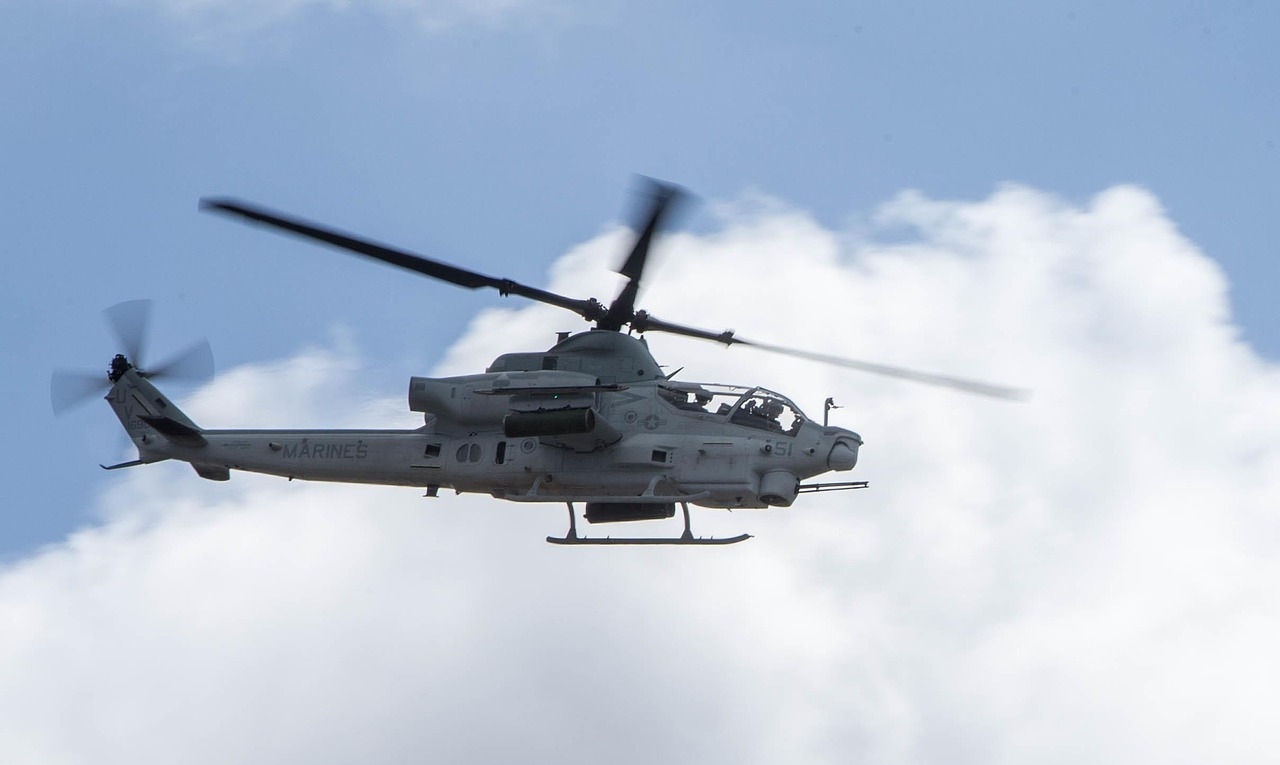

AH-1Z(Bell Flight)

Technical Specifications (Estimated Values)

• Crew: Two-seat (pilot and co-pilot/gunner)
• Length: Approximately 17.8 meters (58.4 feet)
• Rotor Diameter: Approximately 14.6 meters (48 feet)
• Height: Approximately 4.4 meters (14.5 feet)
• Engines: 2 × General Electric T700-GE-401C turboshaft engines (1,800 shp each)
• Maximum Speed: Approximately 370 km/h (200 knots)
• Cruise Speed: Approximately 257 km/h (139 KTAS)
• Maximum Takeoff Weight: Approximately 8,390 kg (18,500 lb)
• Combat Radius: Approximately 243 km (131 nautical miles)
• Fuel Capacity: Approximately 1,562 liters (412.5 gallons)
• Weapon Payload: Approximately 2,600 kg (5,764 lb)
• Armament:
• • 1 × 20 mm M197 three-barrel rotary cannon (nose-mounted)
  • AGM-114 Hellfire missiles
  • Hydra 70 unguided rockets
  • AIM-9 Sidewinder air-to-air missiles
  • Precision-guided munitions (various types)
• Flight Envelope:
• • Sideward/Rearward Flight: up to 83 km/h (45 knots)
  • Maximum Autorotation Speed: 222 km/h (120 knots)
  • Maneuvering Limits: –0.5 to +2.5 g

Operational Capabilities

The Bell AH-1Z Viper offers both anti-armor and air-to-air capabilities at standoff ranges, engaging a wide variety of threats with lethal precision. Its unmatched agility, advanced sensors, and combat-proven weapons systems make it a key asset for modern expeditionary forces. Whether deployed aboard amphibious assault ships or supporting ground forces in complex environments, the AH-1Z is precise, lethal, and ready to win the fight.
