Buck Converter

A buck converter is a DC-DC converter topology that steps down the input voltage to produce a lower output voltage fixed. This converter efficiently transforms energy using components such as key (typically MOSFET), an inductor, diode, and capacitor. The Work principle relies on the periodic switching of the main element to store and release energy in a controlled manner.

A buck converter circuit consists of a single switching element (typically a MOSFET), a single capacitor, coil, a diode, and a load. The buck converter circuit is illustrated in Figure 1.

The switch is one of the most critical components in a buck converter. During operation, the opening and closing of the switch enables energy to be stored in the inductor and subsequently transferred to the output. The switch is typically implemented using a semiconductor device such as a MOSFET (Metal-Oxide-Semiconductor Field-Effect Transistor) or an IGBT (Insulated Gate Bipolar Transistor) like.

The inductor is the energy storage element of the buck converter. When the switch is on, the inductor stores energy; when the switch is off, it releases this energy to the output, maintaining a stable output voltage. The inductor also reduces current ripple. In high-frequency buck converters, the inductor must have a high inductance value to minimize output current fluctuations.

The diode allows the energy stored in the inductor to flow to the output when the switch is off. It permits current flow in one direction while blocking reverse current. In buck converters, the diode’s function is to facilitate the release and transfer of the inductor’s magnetic energy to the output. Proper selection of this diode directly affects the converter’s efficiency.

The capacitor is used in buck converters to smooth the output voltage. The capacitor connected at the output reduces voltage ripple and maintains a steady output voltage. During Load variations, the capacitor stores and releases energy to regulate the output voltage. This component improves system efficiency and minimizes unwanted fluctuations.

The load of a buck converter is the electronic device or system connected to the output. It represents the device powered by the output voltage. As the load increases, its impact on the output voltage becomes more significant; therefore, buck converters are typically designed to remain stable under varying load conditions.

^{Figure 1. Buck Converter (Source: ResearchGate)}

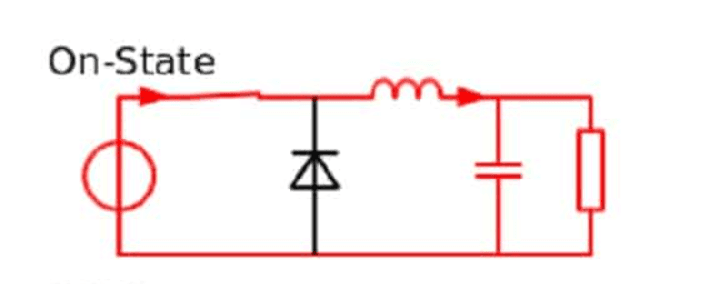

1) Switch ON State: The input voltage is directly applied to the inductor, which stores energy in its magnetic field. During this phase, current increases over time. The capacitor prevents output voltage ripple and maintains a constant voltage. Simultaneously, the diode is reverse-biased and remains non-conducting. This stage phase is critical for energy storage and regulation before transfer to the output. The circuit configuration during the switch ON state is shown in Figure 2.

^{Figure 2. Buck Converter in Conduction Mode. (Source: Mühendis Beyinler)}

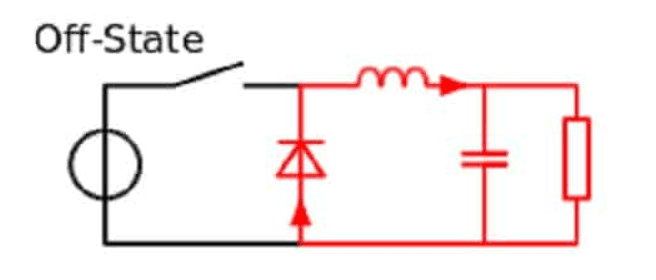

2) Switch OFF State: The energy stored in the inductor is transferred to the output via the diode. As the inductor releases its stored energy, it supplies current to the output, causing the current to decrease. The diode conducts in the forward direction, enabling energy transfer to the output. During this phase, the capacitor maintains a stable output voltage and buffers against load variations. This stage ensures efficient energy delivery to the load and enables the buck converter to operate effectively. The circuit configuration during the switch OFF state is shown in Figure 3.

^{Figure 3. Buck Converter in Non-Conduction Mode. (Source: Mühendis Beyinler)}

Buck converters are commonly used in systems requiring low output voltages. Such applications include power power supplies, battery charge devices, electronic equipment, and motor drives place. Due to their high efficiency and simple structure, this topology is preferred in power electronics systems as common.
