MQ-9 Reaper

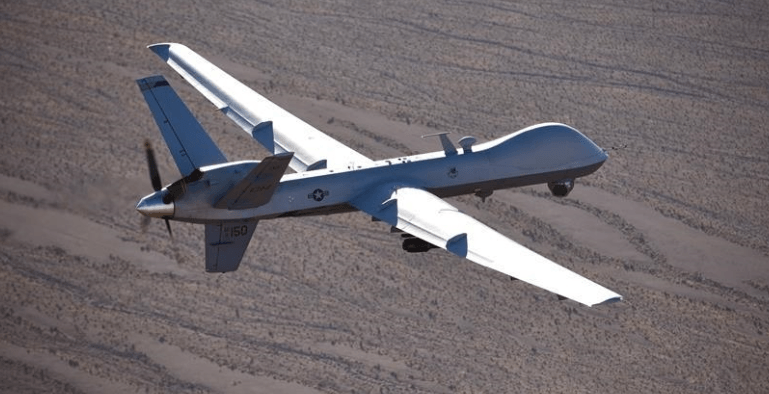

The MQ-9 Reaper is a turboprop-powered, multi-role unmanned aerial vehicle (UAV) developed by General Atomics Aeronautical Systems, Inc. (GA-ASI). The development process was financed by GA-ASI through its own resources, and the aircraft conducted its first flight in 2001. The MQ-9A variant has been designated as “Reaper” by the air forces of the United States and the United Kingdom; the name has since become a general reference for armed Predator B derivatives.

Mission Capabilities

The MQ-9A is designed for long-endurance surveillance and strike missions. It is capable of carrying the following payloads:

• EO/IR (Electro-Optical/Infrared) sensors
• Lynx® multi-mode radar
• Maritime surveillance radar
• Electronic Support Measures (ESM)
• Laser target designators
• A variety of weapon and munition payloads

Safety and Reliability

The MQ-9A Reaper is engineered to maintain operational continuity in both military and civilian missions, with an emphasis on safety and system robustness. Its safety architecture is designed to meet the international reliability standards applied to manned aircraft.

The key safety infrastructure of the aircraft includes:

• Fault-Tolerant Flight Control System: The MQ-9A is equipped with a fault-tolerant flight control system designed to prevent loss of control during flight. This system maintains control authority through redundant pathways in case of a failure in any flight control surface. It activates in the event of electronic or mechanical failure in any component during missions, thus preserving flight safety.

• Triple-Redundant Avionics Architecture: The avionics systems of the MQ-9A are configured using a triple-redundant structure. This ensures that if one system fails, the remaining two can continue to support critical functions such as navigation, communication, and sensor data transmission. This redundancy is vital for maintaining mission success and flight safety, particularly during long-endurance surveillance and strike operations.

• Digital Electronic Engine Control (DEEC): The MQ-9A is powered by the Honeywell TPE331-10 turboprop engine, integrated with a DEEC system. This digital system monitors and controls parameters such as fuel consumption, temperature, and engine performance. It enhances fuel efficiency at low altitudes, optimizes engine performance, and anticipates potential failures to ensure safe operation.

• Redundant Remote Pilot and Control Link: The MQ-9A is operated via secure line-of-sight (LOS) and beyond-line-of-sight (BLOS) communication links between the aircraft and ground control stations. These links are supported by redundant systems, enabling continued safe operation through alternative frequencies and channels in the event of signal loss or interference.
