RASAT (Earth Observation Satellite)

RASAT is Türkiye's first Earth observation satellite that was entirely designed and manufactured using domestic resources. It was developed by the TÜBİTAK Space Technologies Research Institute, which operates under the Scientific and Technological Research Council of Türkiye (TÜBİTAK). Produced within the scope of a project supported by the Presidency of Defense Industries, RASAT aimed to increase Türkiye's independence in the field of space and to strengthen domestic capabilities in satellite technologies.

Launch and Orbital Characteristics

RASAT was launched into space on August 17, 2011, from the Yasny launch base in Russia aboard a Dnepr launch vehicle. Its orbit is sun-synchronous at an altitude of 685 kilometers. This feature enables the satellite to observe any point on Earth at the same local time during each pass. The orbital period is approximately 98 minutes, and it can complete 14 orbits around the Earth in one day.

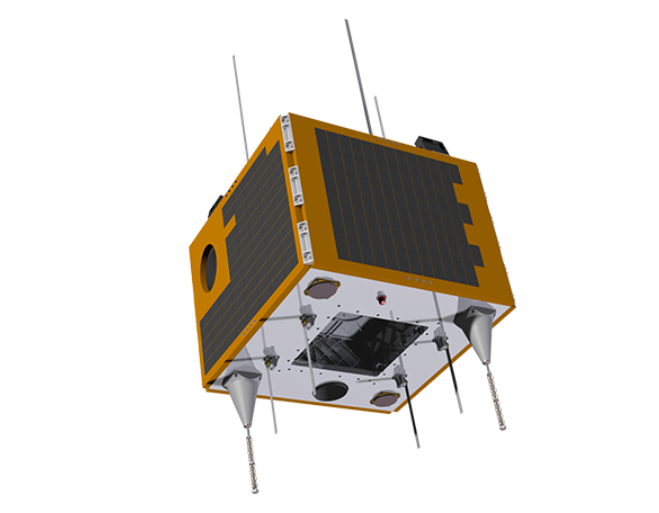

RASAT (Tübitak Uzay)

Design and Technical Specifications

RASAT is a product of 100% domestic engineering. All of its subsystems, including the satellite platform and ground station software, were developed by TÜBİTAK UZAY. The satellite is capable of capturing imagery with a resolution of 7.1 meters in panchromatic (black and white) and 15 meters in multispectral (multi-band) modes. The optical camera system used as the payload was designed for Earth observation. In addition, the satellite includes advanced systems that support functionalities such as data compression, encryption, and high-speed data downlink.

Mission and Applications

RASAT was developed for Earth observation purposes, particularly for civil applications such as urban planning, agriculture, forestry, environmental monitoring, and disaster management. The images acquired by the satellite were processed using domestic software such as TAMSAT and GEZGİN, and utilized in map production, planning, and analysis activities. Throughout its mission, RASAT captured over 30,000 images, which were stored in the TÜBİTAK UZAY Archive.

Mission Duration and Achievements

Although RASAT's initially planned mission duration was three years, the satellite exceeded its technical lifespan and provided uninterrupted data transmission for 11 years. It successfully completed its mission in 2022 and, during this time, made significant contributions to the development of Türkiye's expertise and engineering capabilities in space technologies. In this respect, RASAT has not only been Türkiye's first domestically developed satellite but also a major milestone with its long-lasting and successful mission.

RASAT’s Role in the Turkish Space Program

RASAT marked a turning point in Türkiye's attainment of the capability to send satellites into space using its own engineering resources. The development of the satellite paved the way for subsequent, more advanced satellite projects such as GÖKTÜRK, İMECE, and TÜRKSAT 6A. RASAT has been a foundational element in Türkiye's space vision, both in terms of training technical personnel and developing the necessary infrastructure.
