Supercapacitors are energy storage devices that offer high power density and long cycle life. They are positioned between traditional capacitors and batteries in terms of energy storage mechanisms, making them ideal for short-term energy needs due to their fast charging and discharging capabilities.

Types of Supercapacitors

Supercapacitors are divided into three main types based on their energy storage mechanisms:

Electrochemical Double-Layer Capacitors (EDLCs): EDLCs use carbon-based electrodes to store energy through physical surface adsorption. They offer fast charge/discharge times and long cycle life since they do not rely on chemical reactions. However, their energy density is low, and they exhibit high self-discharge rates.
Pseudocapacitors (PCs): Pseudocapacitors utilize electrode materials such as transition metal oxides to perform reversible redox reactions on the surface. They provide higher energy density and capacity than EDLCs but have shorter cycle life due to their reliance on faradaic processes.
Hybrid Supercapacitors (HECs): Hybrid supercapacitors combine different anode and cathode materials to integrate both faradaic and physical adsorption mechanisms. This structure offers higher energy and power density compared to EDLCs, although they may have limitations in terms of cycle life.

Advantages and Disadvantages of Supercapacitors

Supercapacitors have several advantages and disadvantages that determine their application areas:

Advantages

Fast charge and discharge times.
Long cycle life (up to 1 million cycles).
High power density.
Ability to operate in a wide temperature range.
Potential for environmentally friendly and recyclable materials.

Disadvantages

Low energy density (5-20 Wh/kg).
High self-discharge rate.
Relatively high production costs.
Lower efficiency in long-term energy storage compared to batteries.

Supercapacitors vs. Batteries

Energy Density: Supercapacitors have low energy density (~5-20 Wh/kg), whereas batteries offer much higher energy density (~100-300 Wh/kg).
Power Density: Supercapacitors can achieve very high power density (~10,000 W/kg), whereas batteries have lower power density (~100-300 W/kg).
Charging Time: Supercapacitors can charge within seconds, while batteries may take hours.
Cycle Life: Supercapacitors can last up to 1 million cycles, whereas batteries typically last between 1,000 and 5,000 cycles.
Self-Discharge: Supercapacitors have high self-discharge rates, while batteries have lower rates.
Efficiency: Supercapacitors offer 95-98% efficiency, while batteries typically range between 80-90% efficiency.
Environmental Impact: Supercapacitors have low toxicity and are recyclable, while batteries can contain heavy metals.

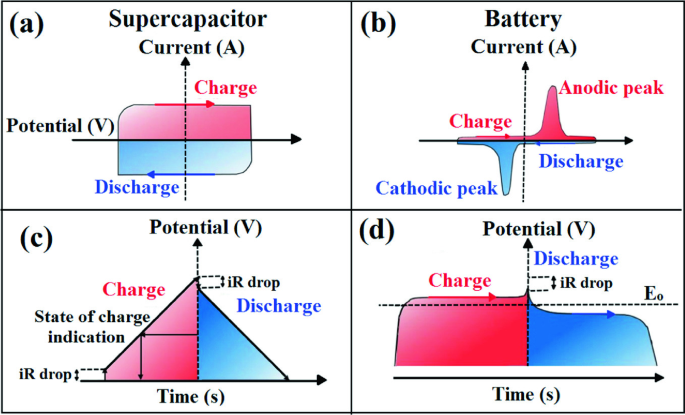

^{Supercapacitor and Battery Voltage-Current Curves}

Cost and Application Areas of Supercapacitors

EDLCs, as the most mature technology in supercapacitors, offer one of the most accessible solutions in terms of cost. For instance, as of 2025, the estimated cost of a 1 MW EDLC system with a 45-second discharge time is approximately $19,200/kWh. These supercapacitors are especially suitable for short-term energy needs, such as grid stabilization, renewable energy systems, and electric vehicles.

Future Perspectives and Cost Reduction Strategies

Various innovations are being explored to reduce the cost and improve the performance of supercapacitors. These include alternative active carbon sources, high-voltage electrolytes, advanced cell packaging methods, and automated production processes. According to the U.S. Department of Energy (DOE), implementing these innovations could reduce the cost of supercapacitors by 23-26%, bringing it down to $0.39/kWh. Further research and development support are crucial for reducing costs to $0.05/kWh in the long term.

Supercapacitors, with their fast charging and discharging capabilities, hold a significant place in energy storage technologies. The development of electrochemical double-layer capacitors, pseudocapacitors, and hybrid supercapacitors offers advantages and drawbacks for different applications. Innovations in materials and manufacturing processes are expected to significantly reduce energy storage costs, contributing to more widespread use of supercapacitors and supporting sustainable energy solutions.
