Magnetic Resonance Imaging (MRI)

Magnetic Resonance Imaging (MRI) is an advanced medical imaging technique that produces detailed images of organs and tissues in the body without using ionizing radiation. MRI generates high-resolution images of soft tissues by analyzing the behavior of hydrogen atoms through strong magnetic fields and radio waves.

Working Principle

These systems consist primarily of three key components: a magnet that generates a strong magnetic field (typically 1.5T or 3T), radiofrequency (RF) coils, and computer systems that collect and process image data. Hydrogen atoms in body tissues align under the influence of the magnetic field. RF waves excite these aligned protons. When the excitation is stopped, the protons return to their original state, emitting RF signals that are detected and converted into images by the computer.

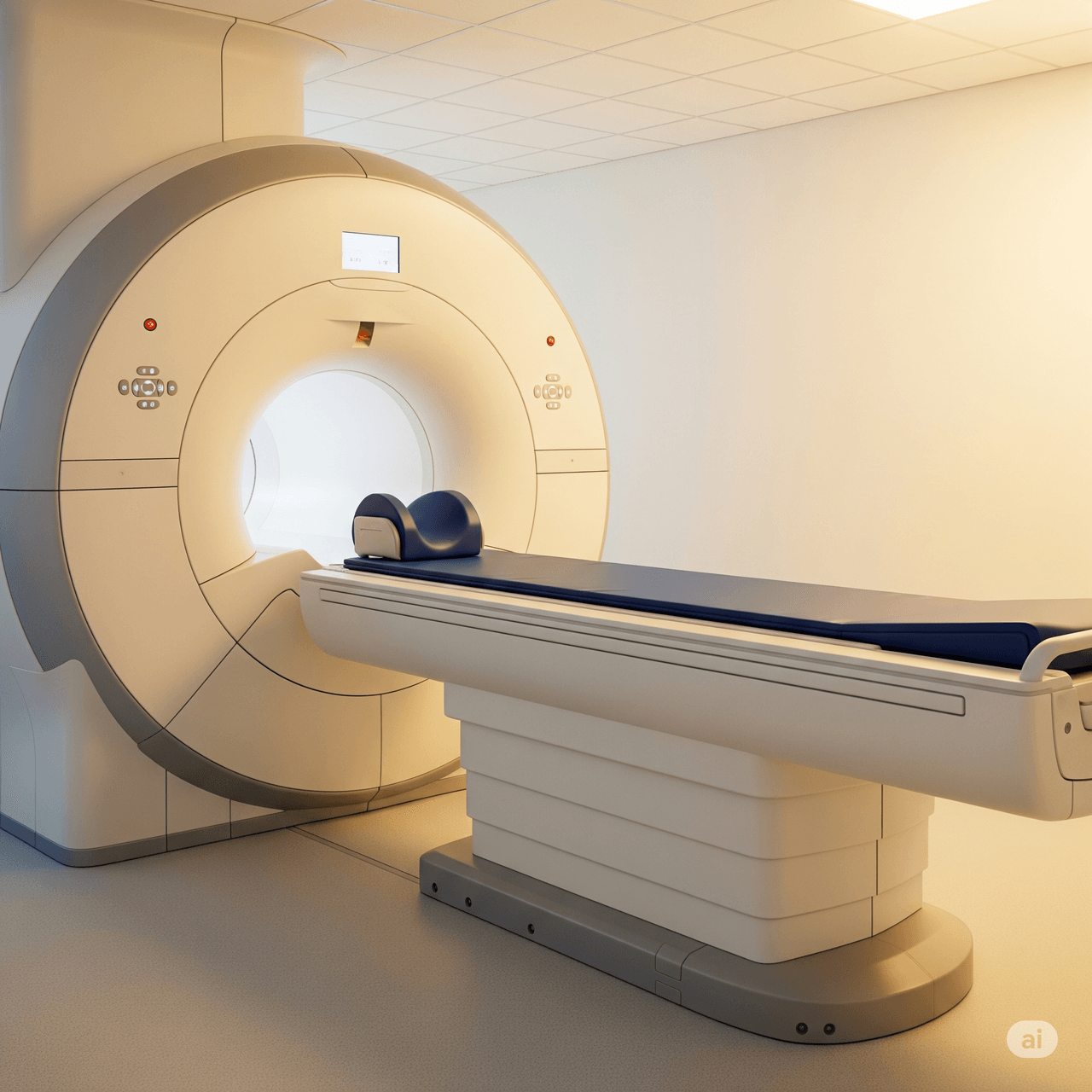

A Visual Depiction of an MRI Scanner (Generated by Artificial Intelligence)

Applications

Magnetic Resonance Imaging is widely used to examine numerous regions including the brain, spinal cord, musculoskeletal system, liver, heart, blood vessels, and internal organs. It is preferred in neuroradiology, cardiac imaging, oncological screening, and orthopedic assessments. Additionally, specialized techniques such as functional MRI (fMRI) enable the analysis of brain activity.

Advantages

These imaging systems provide a safe imaging method for patients due to the absence of ionizing radiation. They offer high contrast resolution between soft tissues, allowing detailed examination of subtle structural differences in organs and tissues. Furthermore, the ability to acquire multiplanar sections through the body enables a more comprehensive evaluation of pathological changes. MRI demonstrates high sensitivity in detecting early-stage diseases, making significant contributions to clinical diagnosis. Its technically flexible nature also facilitates the application of advanced imaging techniques such as functional and metabolic studies.

Disadvantages

The high cost and complex technological structure of MRI scanners limit their accessibility in healthcare institutions. Long imaging durations complicate their use, particularly in patients requiring immobilization and in children, often necessitating multiple scans to obtain accurate results. Additionally, the confined and restricted space of closed MRI scanners can induce claustrophobia in some patients, preventing the procedure from being performed. While open MRI systems have been introduced to address this issue, image quality is generally lower in such systems. Patients with metal implants or devices cannot benefit from this technology.

Safety

These imaging systems are generally safe, but certain special conditions must be considered. Metallic implants placed in the body (such as pacemakers, cochlear implants, or metal prostheses) may interact with the magnetic field, making pre-procedural evaluation essential for patient safety. Patients must not enter the MRI room with any metallic objects (such as magnets, watches, or credit cards). Careful screening must be conducted before entering the MRI suite.

Although MRI scanning is possible for children and pregnant women, it should be used only when medically necessary, particularly during the first trimester of pregnancy. When contrast agents (gadolinium) are used, kidney function must be evaluated.

Technical Advancements

Modern MRI scanners are equipped with numerous technological innovations that reduce imaging time and improve patient comfort. Examples include parallel imaging techniques, multi-channel coil systems, and artificial intelligence-assisted analysis software. Additionally, open MRI systems serve as an alternative for patients suffering from claustrophobia.
