Capacitive Touch Sensor

A capacitive touch sensor is an electronic sensor that detects only finger contact or proximity without requiring physical pressure. These sensors are widely used, ranging from modern smartphone screens to household appliances. Replacing mechanical buttons, these sensors offer advantages such as design integrity, long lifespan, and high sensitivity.

Capacitive sensors have a fundamental capacitance value between a conductive surface (sensor pad) and circuit ground. This creates a stable electric field over the sensor surface. The human body is naturally conductive. When a conductive object such as a finger approaches or touches the sensor’s electric field, it effectively adds a second capacitor to the system. This new capacitor forms between the finger (first plate) and the sensor pad (second plate), creating a path to ground through the human body. This additional capacitance, connected in parallel to the circuit, increases the system’s total capacitance. The sensor’s control circuit continuously measures this sudden increase in capacitance. When the change exceeds a predefined threshold, it is interpreted as a touch event and triggers a corresponding digital output signal. The fundamental mathematical expression determining a capacitor’s capacitance is:

Where:

• $C$: Capacitance (Farad)
• $𝜀$: Dielectric permittivity of the material between the plates (F/m)
• $A$: Surface area of the plates facing each other (m²)
• $d$: Distance between the plates (m)

This formula illustrates the factors affecting the capacitance formed between the finger and the sensor. This additional capacitance generated upon touch forms the foundation of the sensor’s operational principle.

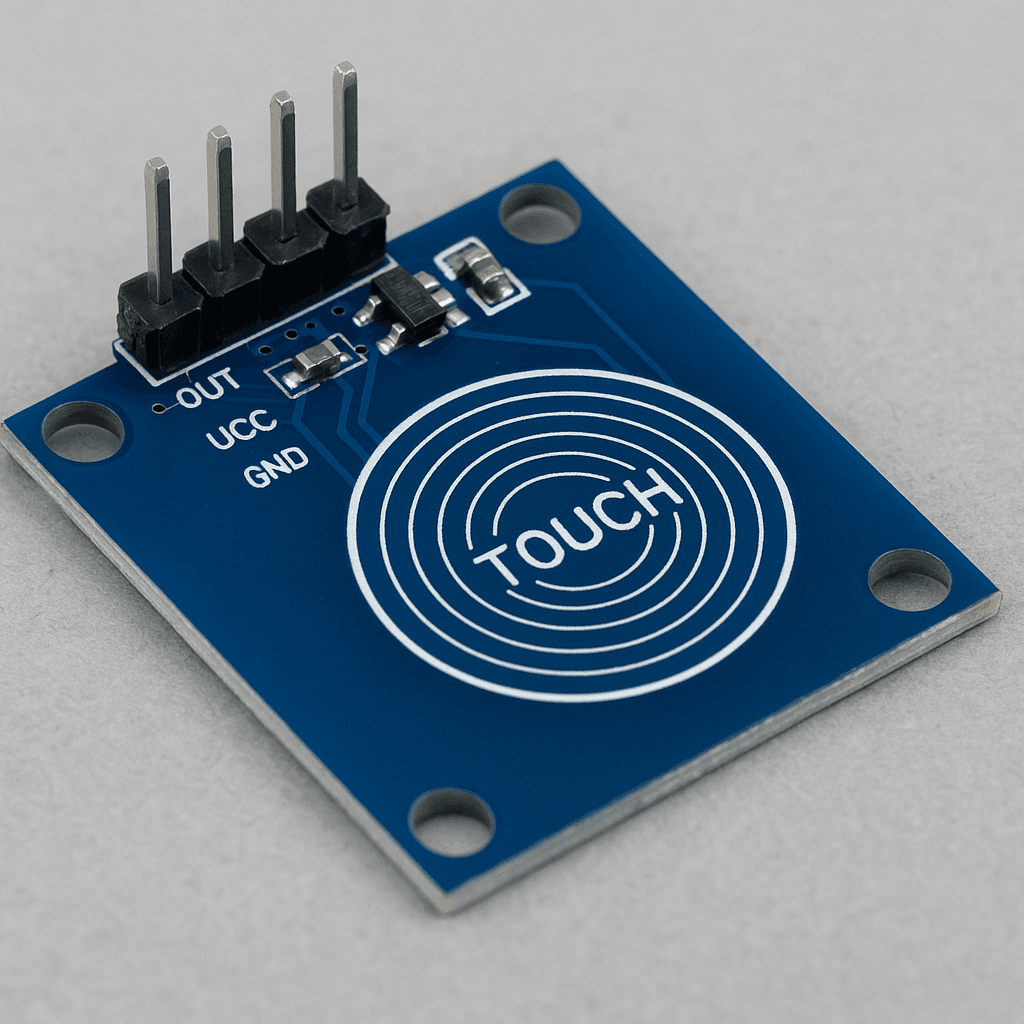

^{Capacitive Touch Sensor (Generated by Artificial Intelligence)}

Capacitive sensors are preferred in many fields due to their ease of use and aesthetic advantages:

• White Goods and Kitchen Appliances: Ovens, microwave ovens, refrigerators, and cooktop control panels.
• Smart Home Systems: Touch-sensitive light switches, thermostats, and control panels.
• Consumer Electronics: Monitor controls, headphone controls, TV remotes.
• Public Spaces and Industry: Elevator buttons, information kiosks, automated systems.
• Automotive: In-vehicle multimedia displays, climate control systems, and door sensors.
• Hobby and Art Projects: Interactive art or musical equipment using conductive objects.
