Chengdu J-20

Chengdu J-20 is a twin-engine stealth fighter aircraft developed by China. The aircraft was designed by the Chinese aerospace manufacturer Chengdu Aircraft Corporation for use by the People’s Liberation Army Air Force. The program emerged as part of China’s modern fighter aircraft development efforts during the early 21st century through research and development activities.

The prototype aircraft developed under the J-20 program made its first flight on 11 January 2011. Following test flights the aircraft gradually transitioned into serial production. According to an announcement by the Chinese Ministry of National Defense the J-20 fighter entered service with the People’s Liberation Army Air Force in 2017.^【1】

The aircraft was developed as a fighter equipped with design features to reduce radar visibility advanced avionics and weapon systems designed for long-range air-to-air missions.

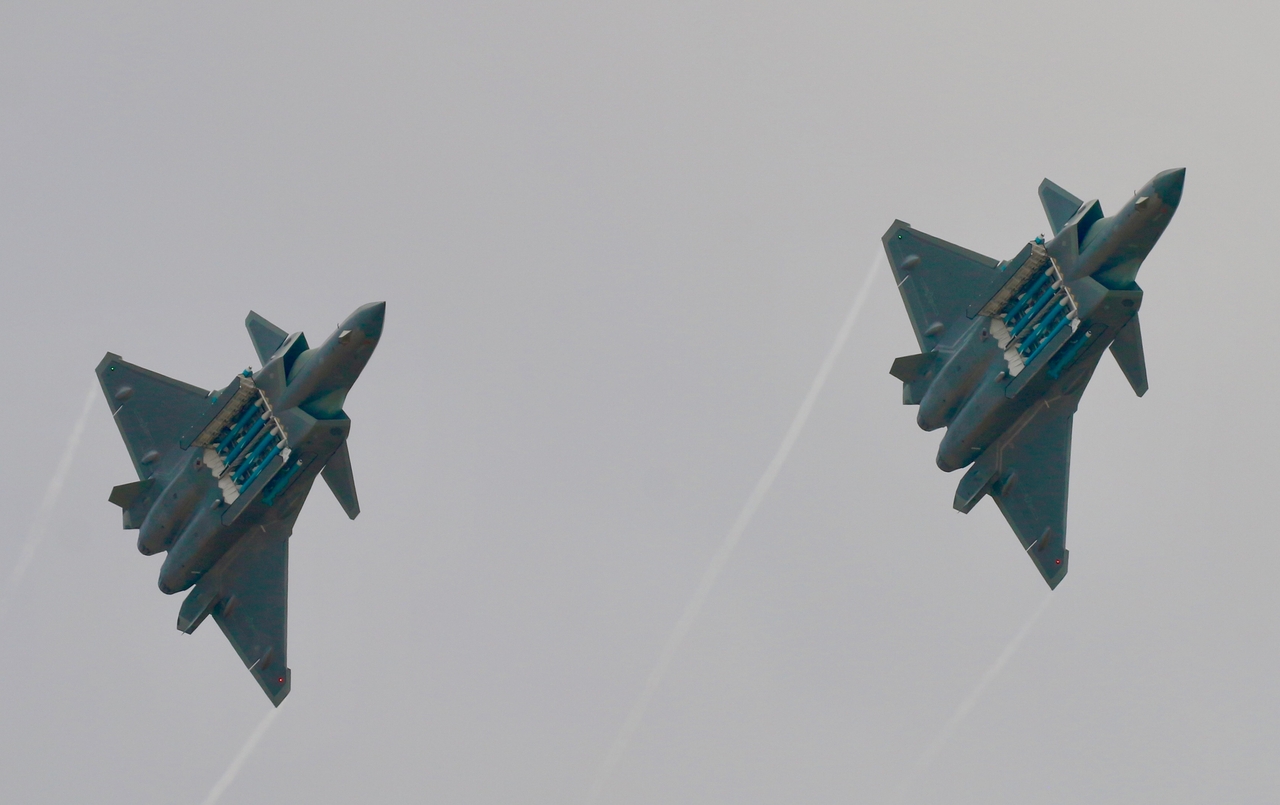

Chengdu J-20 (Colin Cooke)

Development Process

The Chengdu J-20 program is rooted in research and development initiatives launched in the late 1990s as part of China’s strategy to develop a next-generation fighter aircraft. During this period China’s aerospace industry focused on design features for low radar cross-section advanced avionics and long-range air-to-air combat capability to complete the aircraft’s development.

The aircraft developed under the Chengdu J-20 program was designed by Chengdu Aircraft Corporation. The design process involved engineering work on the aerodynamic structure a fuselage geometry that reduces radar visibility and internal weapons bays. Integration of avionics components including radar systems mission computers and flight control systems completed the aircraft’s development.

The first prototype aircraft of the J-20 program made its maiden flight on 11 January 2011 in Chengdu city of Sichuan province China. The test program verified the aerodynamic structure flight control systems and mission systems. Subsequent phases of the program were completed with additional prototypes and pre-production models.

During the development process the engines and avionics systems were configured. Different engine configurations used in the initial production aircraft were later replaced by newly developed Chinese-made engines.

Following flight tests the J-20 gradually entered serial production. According to an announcement by the Chinese Ministry of National Defense the J-20 fighter entered service with the People’s Liberation Army Air Force in 2017.^【2】

Chengdu J-20 Technical drawing (generated by artificial intelligence)

Design and Technical Structure

The Chengdu J-20 features design elements that reduce radar visibility and an aerodynamic structure optimized for high-speed performance. The fuselage is composed of angled surfaces that minimize radar cross-section. Internal weapons bays prevent external ordnance carriage thereby reducing radar reflections.

The aircraft’s aerodynamic configuration consists of a delta wing planform and canard control surfaces located on the forward fuselage. This arrangement provides aerodynamic stability and maneuverability at high speeds. The wing-fuselage junction is engineered to manage aerodynamic effects during supersonic flight regimes.

The J-20 is powered by two turbofan engines. During development various engine configurations were tested and the initial production aircraft were equipped with Russian-made Saturn AL-31F engines. In later stages of the program integration work was conducted on the Chinese-developed WS-15 turbofan engine.^【3】

The aircraft is equipped with advanced avionics and radar systems. The J-20 detects tracks and guides weapon systems toward air targets using an active electronically scanned array (AESA) radar and sensor suite.

The cockpit is configured for a single pilot. The landing gear is a three-wheel retractable system. The wing structure fuselage geometry and internal weapons bays are designed to match the aircraft’s mission profile.

Operational Use

The Chengdu J-20 is a fighter aircraft in service with the People’s Liberation Army Air Force (PLAAF). After its development and flight testing it entered operational service in 2017.

The aircraft performs air superiority and long-range air defense missions within the PLAAF. Its mission profile includes detection and tracking of air targets and interception using long-range air-to-air missiles.

J-20 aircraft are stationed at air bases under the command of the Chinese Air Force. After completing training and evaluation phases the aircraft have been assigned to operational units. The number of aircraft in inventory continues to grow as serial production and delivery proceed.

The J-20 platform is employed as part of the Chinese Air Force’s next-generation fighter program. Operational usage data is based on official statements and defense reports.

Chengdu J-20 (Colin Cooke)

Variants

Aircraft developed under the Chengdu J-20 program have appeared in various configurations during testing and production phases. While these variants share the same basic aerodynamic structure and mission concept they differ in engine systems avionics components and production standards.

The earliest aircraft developed under the J-20 program were prototype test aircraft. These were used to evaluate flight characteristics aerodynamic design and mission systems. The first prototype made its maiden flight on 11 January 2011 and additional prototypes were later added to the test program.

The aircraft’s early production configuration is commonly referred to as the J-20A. This production model features two turbofan engines and retains the internal weapons bays and radar-reducing fuselage design. It has been reported that the initial production aircraft were equipped with Russian-made AL-31F engines.^【4】

In later stages of the program aircraft were equipped with Chinese-developed WS-10C turbofan engines. These production aircraft are referred to by some sources as an improved production standard.

Additionally work is underway to integrate the Chinese-developed WS-15 turbofan engine onto the J-20 platform. Defense reports indicate that this engine is planned for use in future production aircraft.^【5】

Industrial Legacy

The Chengdu J-20 program is part of China’s broader modern fighter aircraft development initiatives in its military aerospace industry. Engineering efforts during the aircraft’s development focused on low-observable fuselage design advanced avionics and sensor integration. These efforts encompass China’s research and development activities in fighter aircraft design and manufacturing.

The design and production activities of the J-20 program have been carried out as part of projects aimed at developing next-generation fighter technologies within China’s aerospace industry. During this process radar systems mission computers flight control systems and engine technologies have been advanced.

The development of the J-20 is part of the People’s Liberation Army Air Force’s modernization program. The aircraft is employed as part of China’s next-generation fighter programs and is integrated into the country’s military aerospace research and production initiatives.
