Helical Springs

Helical springs are a type of spring wound in a helical shape, used to store mechanical energy, absorb shocks, and support loads. They have a wide range of applications, from automotive suspension systems to balancing mechanisms in industrial machinery.

Structural Characteristics

Helical springs are typically manufactured by winding steel wire with a circular cross-section into a spiral pattern at a specific diameter and pitch spacing. The steels used in spring production are alloy materials with high strength, high elastic modulus, and fatigue resistance (e.g., SAE 9254, 60SiCr7). Helical springs are classified into two groups based on manufacturing method:

• Cold Formed Springs: Produced by winding thin steel wires at low temperatures.
• Hot Formed Springs: Created by shaping thicker steel sections at high temperatures.

The spring's stiffness depends on the coil diameter, wire thickness, number of coils, and the elastic modulus of the material used. Variations in these parameters directly affect the spring's characteristic behavior.

Working Principle

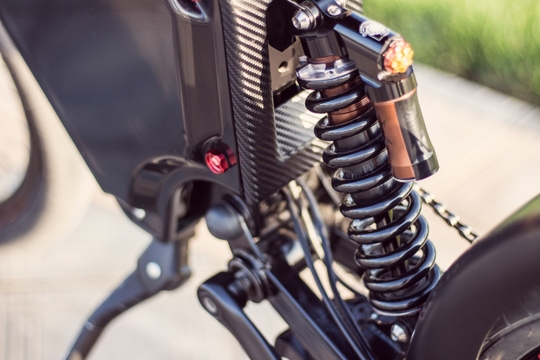

Helical springs store energy mechanically by undergoing elastic deformation when subjected to a force. When the force is removed, the spring returns to its original shape, releasing the stored energy. In suspension systems, they dampen shocks from the wheels, enhancing road grip and ride comfort. Helical springs typically operate in conjunction with shock absorbers; this combination controls oscillations and ensures system stability.

Applications

• Automotive Industry: Widely used in front and rear suspension systems. In passenger vehicles, they provide a more balanced ride compared to torsion bars.
• Heavy Vehicles and Agricultural Machinery: Used to balance axle loads.
• Industrial Machinery: Employed in vibration damping and load balancing systems.
• Rail Systems: Applied in secondary suspension systems of rail cars.
• Everyday Life: Found in consumer products such as mattresses, seats, and children's swings.

Advantages

• High mechanical strength and long service life.
• Simple design enables easy manufacturing and maintenance.
• Compatibility with diverse systems due to a wide range of forms and stiffness levels.

Disadvantages

• Fixed spring rate prevents adjustment to varying loads.
• Risk of permanent deformation (set) under excessive load.
• Comfort level is limited compared to air springs.
