The angle of attack (AOA) is an aerodynamic concept that describes the position of an aircraft's wing—or more generally, its lifting surface—in relation to the incoming airflow. Technically, it is the angle between the chord line of the wing and the direction of the oncoming airstream.
The angle of attack is a fundamental parameter in flight aerodynamics, as it is one of the most critical factors determining the lift and drag forces acting on an aircraft. It is also directly related to the understanding and prevention of stall conditions.

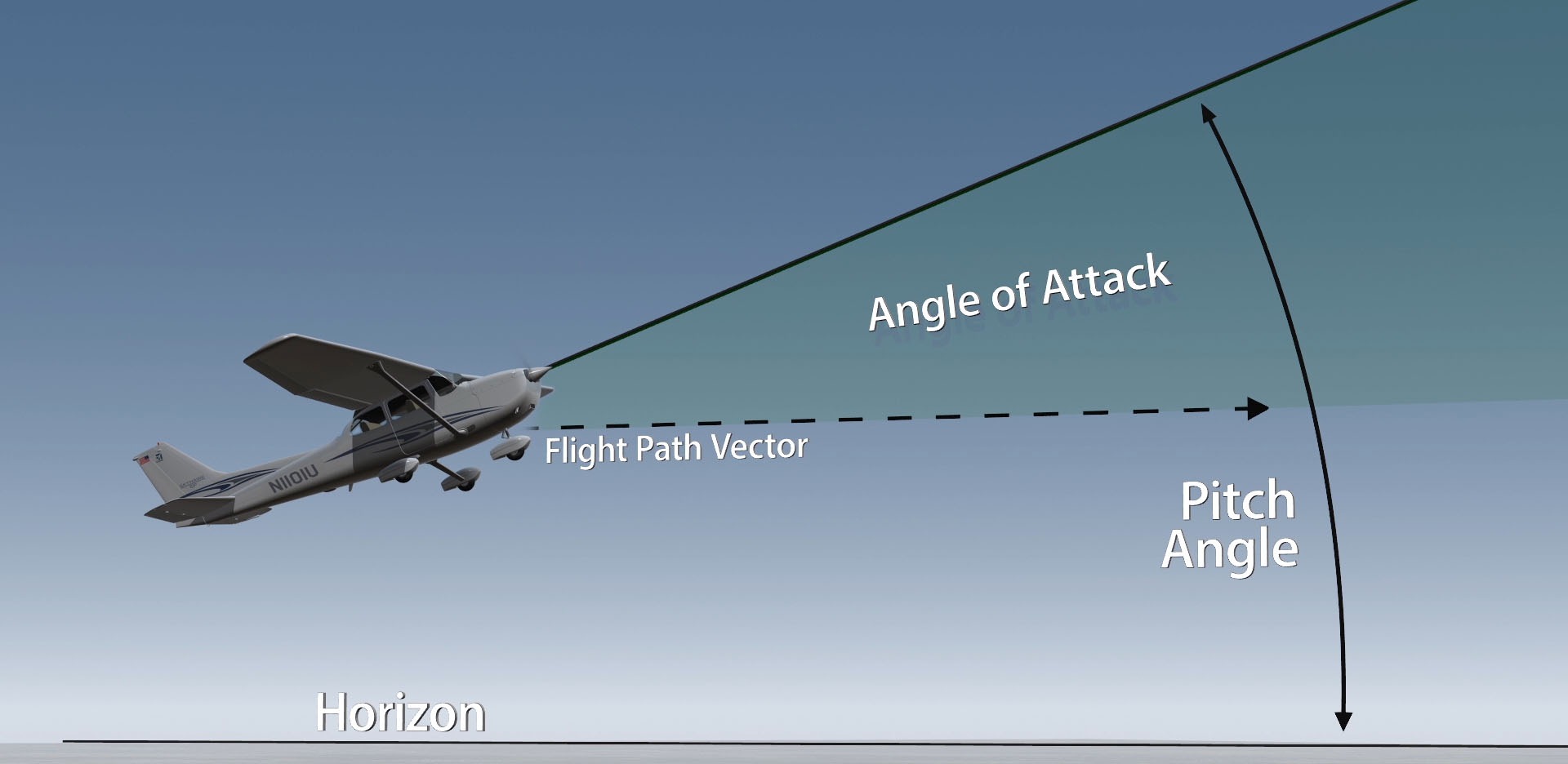

Angle Of Attack (Flight Training Central)
Aerodynamic Importance
The angle of attack directly affects the magnitude and direction of aerodynamic forces acting on an aircraft's lifting surfaces. The angle formed between the wing (or other aerodynamic surfaces) and the oncoming free airstream plays a decisive role in the generation of lift and drag forces.
As the angle of attack increases—up to a certain point—the lift generated on the wing also increases. This increase has a direct impact on load-carrying capacity, maneuverability, and overall flight performance. However, every wing profile has a characteristic critical angle of attack (stall angle). When this angle is reached or exceeded, airflow over the upper surface of the wing becomes turbulent and separates from the surface. This flow separation leads to a sudden drop in lift and an increase in drag. This phenomenon is called a stall, and it can severely compromise the aircraft's flight stability.
An aircraft entering a stall may lose control surface effectiveness and experience a rapid loss of altitude. Therefore, accurate monitoring and control of the angle of attack is critical—especially during low-speed phases such as takeoff and landing. In modern aircraft, systems that continuously monitor the angle of attack (angle of attack sensors) provide real-time alerts to pilots or flight control computers. This allows for early detection of stall risk and appropriate preventive measures.
The effects of angle of attack are not limited to conventional fixed-wing aircraft. In helicopters, unmanned aerial vehicles (UAVs), rockets, and even some underwater vehicles, the angle of attack and its related aerodynamic effects are also taken into account. The management of angle of attack is considered an essential aerodynamic concept for ensuring general flight safety and mission success.
Measurement of Angle of Attack
The angle of attack is difficult to measure directly because it is defined relative to the direction of the airflow. Therefore, special sensor systems are used.
Mechanical Sensors
Vane-Type Sensors
Vane-type sensors are one of the most commonly used mechanical methods for directly measuring the angle of attack on aircraft. These sensors consist of a small vane structure mounted externally on the fuselage, which can freely rotate under the influence of airflow. The angular position of the vane relative to the oncoming airflow is detected via potentiometric, optical, or magnetic position sensors and converted into an electrical signal. The resulting data is then transmitted to flight computers or directly to cockpit indicators to provide angle of attack information.
Vane-type sensors are structurally simple, reliable, and capable of quick response. However, due to their mechanical moving parts, they may require protective measures against icing, contamination, or other external influences. Such sensors are usually designed with heating elements to resist icing.
Vane-Type Sensors (Airplane Tech Talk)
Alpha Probes (AOA Probes)
The alpha probe is another physical measurement device used to determine the angle of attack. Typically located on the aircraft's nose section, this probe consists of a heated metal structure that detects pressure from incoming air through small holes. The pressure differences between holes positioned in different directions allow for the calculation of the angle of attack.
Alpha probes are commonly used in high-speed aircraft and modern jets. Their structural robustness enables them to provide reliable data even in high-altitude and harsh environmental conditions. In terms of working principle, alpha probes are similar to Pitot tubes, but while Pitot tubes focus on measuring airspeed, alpha probes are dedicated to determining flow direction.
Differential Pressure-Based Systems
Dual Pitot System
The dual Pitot system is based on positioning two separate Pitot tubes at different angles. Each Pitot tube measures air pressure along its own axis. By comparing the pressure readings from both tubes, the angle of attack can be determined. This system is mechanically simple and reliable but requires precise calibration and accurate placement.
Multi-Hole Probe
A multi-hole probe includes several small air inlets positioned to face different directions. These inlets measure pressures from airflow coming from various angles. By analyzing the resulting pressure distribution, not only the angle of attack but also the sideslip angle and airspeed can be derived.
This method is particularly used in flight testing, research aircraft, and advanced aerial platforms where high accuracy is required. Multi-hole probes allow for a more detailed analysis of flight dynamics.

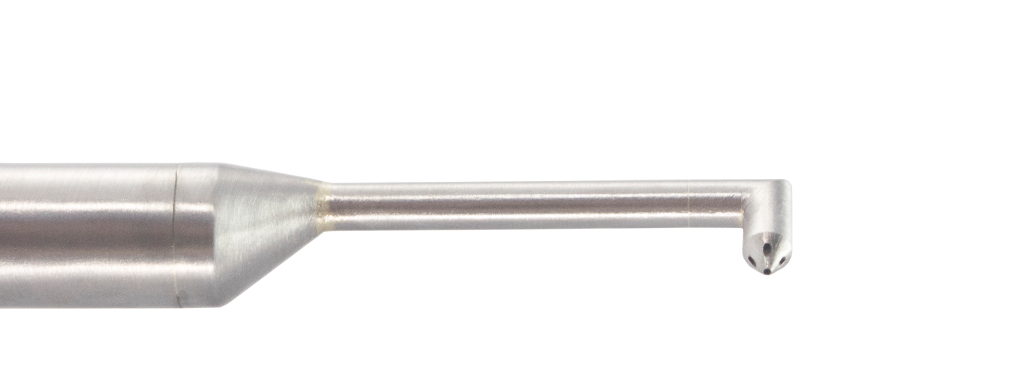

Multi-Hole Probe (Aeroprobe)
Electronic and Computational Methods
In modern aircraft, in addition to mechanical sensors, software-based indirect measurement methods have also been developed. In these systems, the angle of attack is not directly measured by a physical sensor; instead, data from GPS, accelerometers, gyroscopes, and airspeed sensors is combined and processed using mathematical models to estimate the angle.
These methods offer advantages in terms of weight reduction, ease of maintenance, and data integration. They are especially preferred in UAVs and modern avionics systems as cost-effective and reliable solutions. Electronic methods can also provide system redundancy in case of sensor failures.
Angle of Attack and Flight Control Systems
In modern aircraft, angle of attack data is critically used by flight control systems to ensure flight safety and optimize performance. In fly-by-wire systems, the angle of attack is continuously monitored, and automatic interventions are triggered if certain threshold values are exceeded. These systems perform vital functions such as preventing excessive angles of attack, detecting stall conditions early, and protecting the flight envelope. Based on angle of attack data, flight computers may limit nose-up (pitch-up) maneuvers or perform automatic trim adjustments. In some aircraft, angle of attack information is directly displayed to pilots, while in others, it is used internally by the flight computers only. The use of angle of attack data in flight control systems plays a critical safety role both during manual and autopilot flight modes.
Applications
Commercial Aircraft
Angle of attack (AOA) sensors are standard avionics components in large commercial airliners such as those manufactured by Boeing and Airbus. These sensors are not always displayed directly to pilots but are actively used by flight management systems, autopilot systems, and flight control computers. AOA data is a critical parameter in automatic flight modes, stall protection systems, flight envelope protection, and speed adjustments. It is also one of the main data sources for control surface interventions to prevent excessive angles of attack. The correct functioning of AOA sensors is especially important for flight safety during low-speed, high-AOA phases like takeoff and landing.

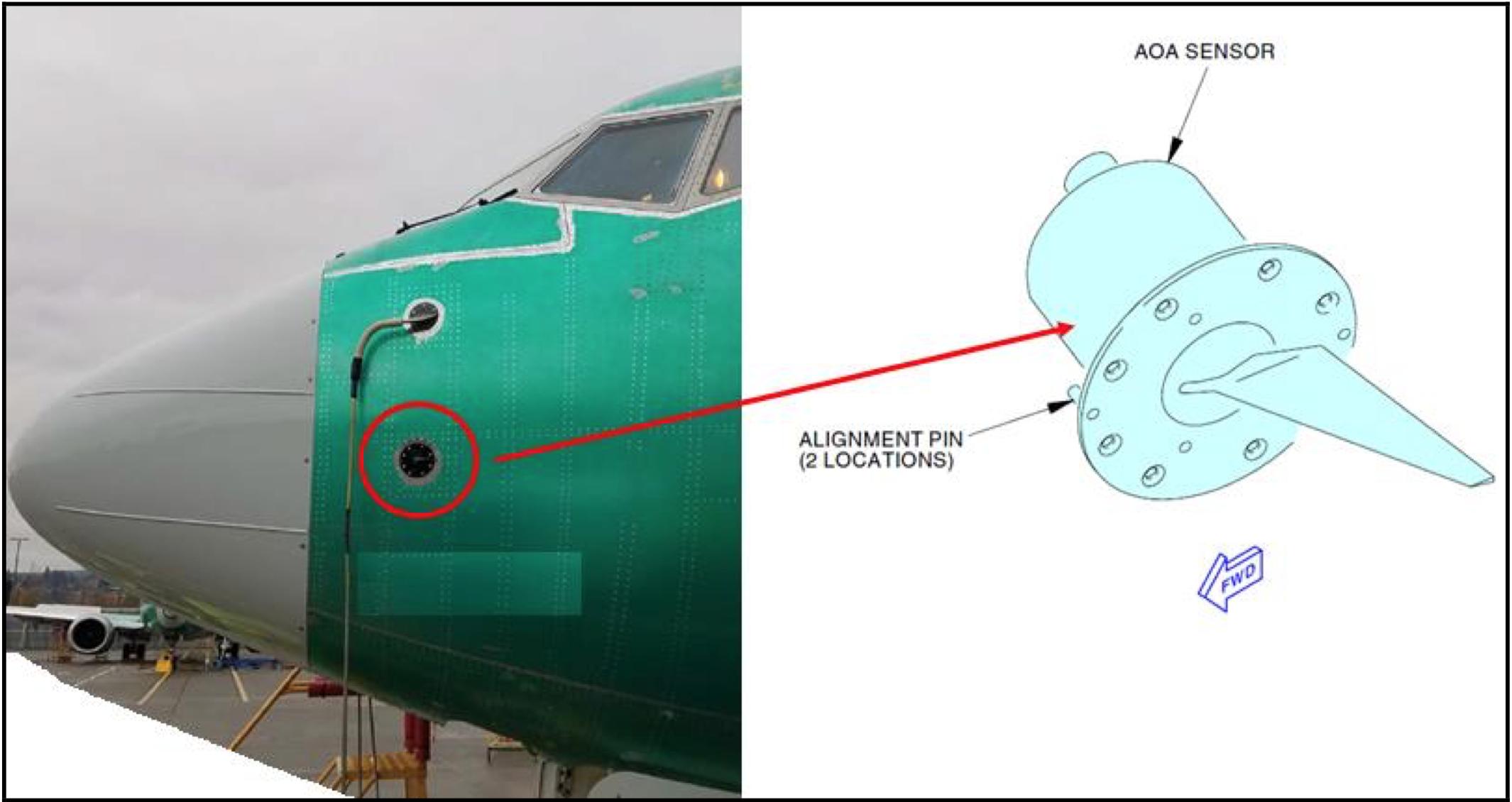

Angle Of Attack Sensors on Commercial Aircraft (Aviation)
Military Aircraft
Military aircraft—especially highly maneuverable fighter jets—are heavily dependent on angle-of-attack-based flight control. Modern fighter jets like the F-16 Fighting Falcon, F/A-18 Hornet, Su-35, and Eurofighter Typhoon are capable of flying at wide ranges of angle of attack. These aircraft are equipped with precise AOA sensors to maintain stability and controllability even at high angles of attack.
AOA data ensures that the flight envelope is maintained during offensive and defensive maneuvers. In advanced fly-by-wire systems, flight computers constantly evaluate angle of attack to prevent the aircraft from exceeding structural limits under extreme conditions.
Unmanned Aerial Vehicles (UAVs)
In UAVs, accurate measurement and evaluation of angle of attack is crucial for maintaining flight stability, guidance accuracy, and mission efficiency. UAVs often operate in environments with variable airspeeds, turbulence, and changing weather conditions, and angle of attack information is essential for their autopilot and navigation algorithms to make appropriate control adjustments.
In long-endurance UAVs, AOA data is used to optimize flight performance and minimize fuel consumption. In tactical and high-speed UAVs, AOA sensors help maintain control during rapid maneuvers and in critical flight phases. Due to their relatively lightweight and cost-effective nature, both mechanical and electronic angle of attack sensors are commonly used in UAV platforms.
In addition, modern UAV control software utilizes artificial intelligence and machine learning techniques to estimate and interpret angle of attack in real time, improving performance and resilience in complex mission environments.
Light Aircraft and Training Aircraft
AIn light general aviation aircraft and aircraft used for pilot training, AOA indicators are becoming increasingly important. AOA indicators that can be retrofitted into training aircraft allow student pilots to recognize stall symptoms earlier and to better understand the boundaries of the flight envelope.
In some training aircraft, AOA information is directly integrated into the instrument panel, while in others, it may be presented in the form of audible or visual warning systems. These systems enhance safety especially during low-speed maneuvers and landing approaches.
Safety and Maintenance
Angle of attack sensors are external environment sensors that provide critical data for flight safety. By their nature, they are continuously exposed to atmospheric conditions, water, dust, icing, and physical impacts. Therefore, regular maintenance and calibration procedures must be carried out. Icing, in particular, can severely affect AOA sensor performance. For this reason, many AOA sensors are designed to be heated. In aircraft flying at high altitudes and in cold weather conditions, the functionality of anti-icing heater systems is of vital importance.
Faulty operation of AOA sensors can lead to the flight control systems being fed incorrect data. Such a situation may result in false stall warnings, erroneous nose-down interventions, or improper responses from flight envelope protection systems. The 737 MAX accidents that occurred in 2018 and 2019 are striking examples that highlight the direct impact of AOA sensor failures on flight safety. Therefore, within the scope of maintenance procedures applied to AOA sensors, cleaning, visual inspection, functional tests, and verification calibrations must be performed at regular intervals. In addition, service bulletins and updates issued by the manufacturers should be closely followed.
