Ariane 5

Ariane 5 is a heavy-lift launch vehicle system developed under the leadership of the European Space Agency (ESA) and operated by Arianespace. The rocket is optimized particularly for geostationary transfer orbit (GTO) missions and has been used in satellite launches, scientific missions, and uncrewed space missions. Ariane 5 represents the fifth generation of the Ariane rocket family.

Ariane 5 is being launched from the European Spaceport in French Guiana. (ESA)

Development Process and Design Philosophy

The development of Ariane 5 began in 1985, with the primary goal of creating a platform that could support ESA’s manned space vehicle project, Hermes. Although the Hermes program was later canceled, the development of Ariane 5 continued, and the rocket stood out with its heavy payload capacity.

The rocket’s design was carried out by the French space agency CNES (Centre National d'Études Spatiales), while production and integration activities were distributed among various European industrial firms. This approach gave the project a multinational character.

Technical Specifications

Ariane 5 primarily served in two main variants: Ariane 5G (Generic) and its later upgraded versions, Ariane 5 ECA and ES. The following technical data pertains to the Ariane 5 ECA model:

• Payload Capacity (GTO): Approximately 10,865 kg
• Payload Capacity (LEO): Approximately 20,000 kg
• Total Length: 53 meters
• Lift-off Weight: 777 tons
• Propulsion Systems:
• • Main stage: Vulcain 2 liquid-fueled engine (LOX/LH2)
  • Two solid rocket boosters: EAP (Étage d’Accélération à Poudre)
  • Upper stage: HM7B (ECA) or Aestus (ES) engine
• Launch Complex: Centre Spatial Guyanais (CSG), Kourou, French Guiana

Mission Profiles and Applications

The Ariane 5 rocket was primarily used to launch commercial communication satellites into GTO. In addition, it played an important role in scientific missions. Some notable missions include:

• Rosetta Spacecraft (2004): ESA’s comet mission.
• James Webb Space Telescope (2021): The JWST, developed in partnership between NASA, ESA, and CSA, was launched aboard the Ariane 5 ECA rocket.
• ATV (Automated Transfer Vehicle) Missions: The Ariane 5 ES variant was used for cargo delivery missions to the International Space Station (ISS).

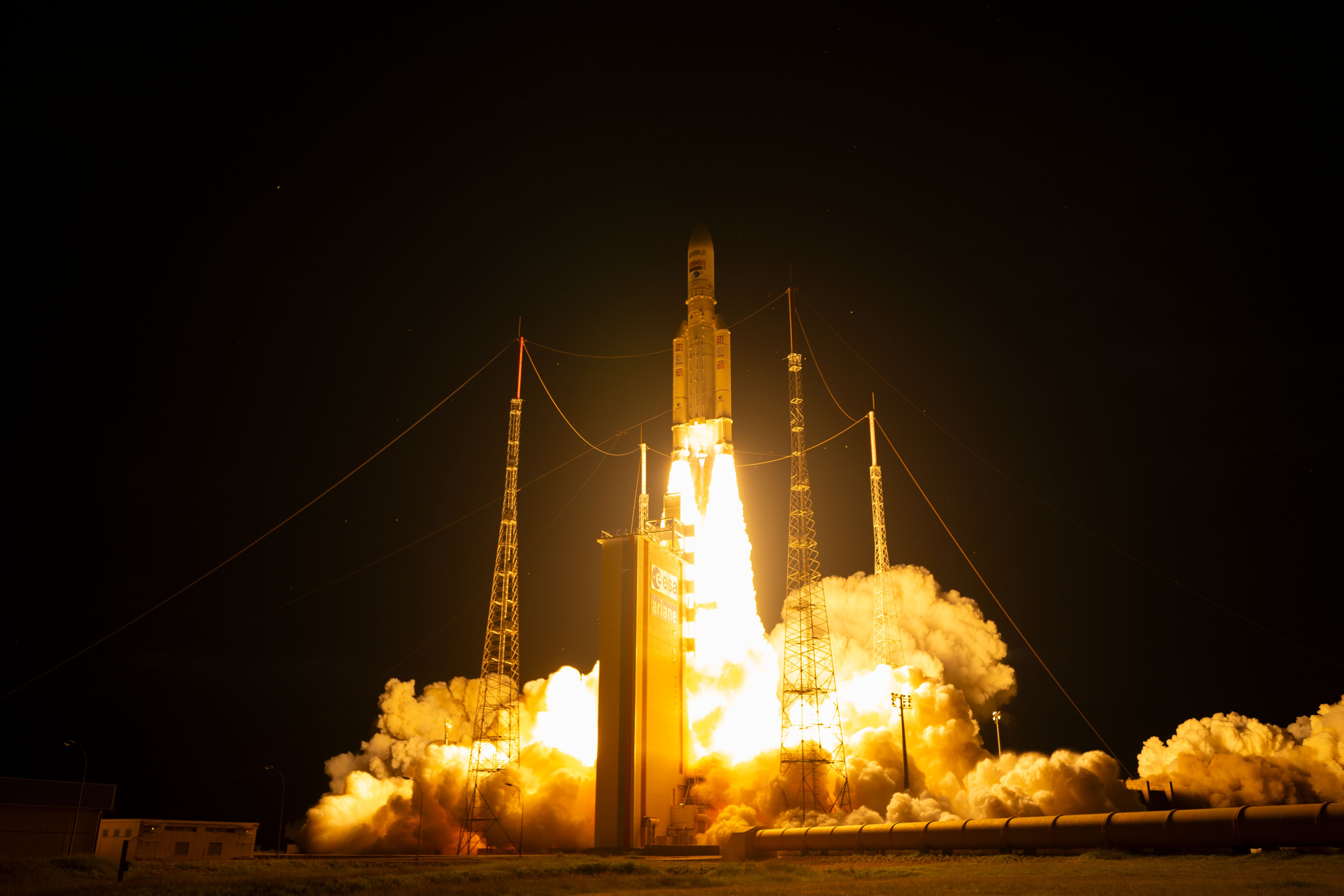

The Final Launch of the Ariane 5 Rocket. (ESA)

Performance and Reliability

The first flight of Ariane 5 took place on June 4, 1996, but the mission ended in failure. In subsequent flights, design updates improved the system’s reliability. The Ariane 5 ECA variant, in particular, demonstrated a high success rate throughout its operational life.

The total number of launches exceeded 100, and the rocket’s flight reliability offers statistically strong performance when compared with other systems in its class.

Production and Operational Structure

Ariane 5 was integrated by Arianespace, while its production was distributed among various suppliers across Europe. The rocket was launched from the Guiana Space Centre (CSG) in French Guiana. This location, due to its proximity to the equator, provides a thrust advantage and is preferred for GTO missions due to fuel efficiency.

Retirement and Successor System

The operational lifespan of Ariane 5 was limited due to increasing competition, production costs, and technological advancements. ESA and Arianespace developed the Ariane 6 system to succeed Ariane 5. Ariane 6 is reported to be more cost-effective, with flexible configurations and suitable for a wider range of missions.

Ariane 5’s final launch took place on July 5, 2023, and the mission was completed successfully. Thus, Ariane 5 concluded an operational legacy of nearly 27 years and marked the end of a significant era in space transportation history.

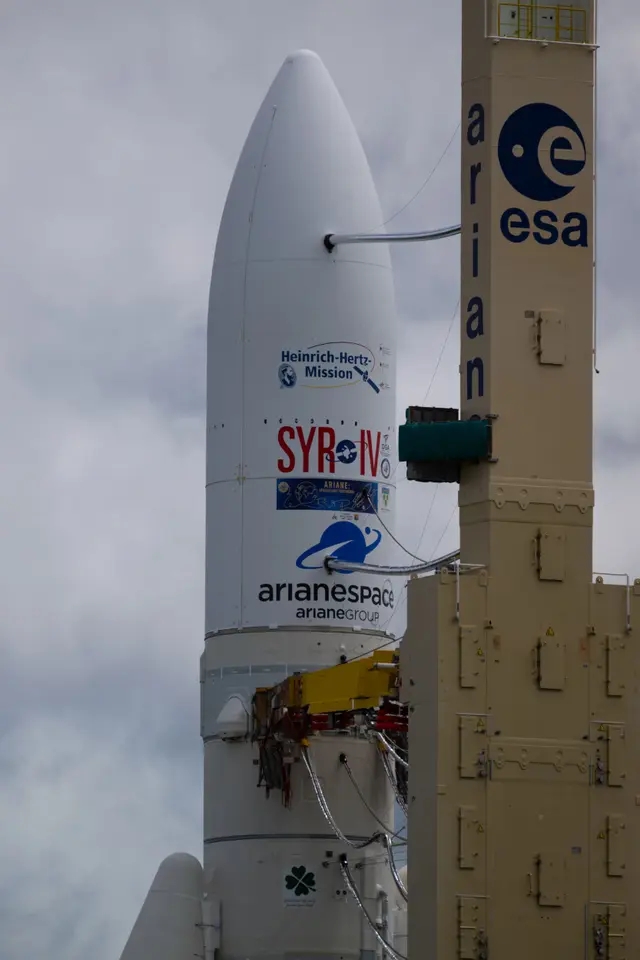

^{25 Years of Ariane 5. (}ESA⁾

Ariane 5 is a major launch system that represented Europe’s independent space launch capability. When analyzed in terms of its development process, technical infrastructure, applications, and mission performance, the role of this rocket in space missions carries historical significance. With the introduction of Ariane 6, European space transportation systems are transitioning into a new era.
