Artillery rockets developed by Roketsan are rocket systems with high accuracy and destructive power, designed to provide effective fire support to land forces against targets ranging from 3 to 40 kilometers. These rockets offer a quick response to the needs of tactical maneuver units on the field and are user-friendly thanks to their modular pod system.
General Features
Artillery rockets are available in various range and warhead configurations to meet different operational requirements. The pod system, which holds 20 rockets ready for use, enables fast and efficient transport, storage, and launch operations.
Pod System Advantages
- Protection against all weather and environmental conditions
- Long shelf life
- Ease of transport
- Fast and easy loading
- Quick reaction time
- Maintenance-free
- In-pod test capability
Artillery Rockets (Roketsan)
Rocket Models and Technical Specifications
TR-107
Feature | Value |
Caliber | 107 mm |
Weight | 20 kg |
Minimum Range | 3 km (Sea level) |
Maximum Range | 11 km (Sea level) |
Propellant Type | Low-smoke composite solid |
Warhead Type | High-explosive + fragmentation |
Warhead Weight | 8.4 kg |
Warhead Effective Radius | ≥ 14 m |
Fuse Type | Impact |
TR-122
Feature | Value |
Caliber | 122 mm |
Weight | 66 kg |
Minimum Range | 16 km (Sea level) / 21 km (600 m altitude) |
Range with Brake Ring | 10 km |
Maximum Range | 36 km (Sea level) / 40 km (600 m altitude) |
Propellant Type | Composite solid |
Warhead Type | High-explosive + fragmentation |
Warhead Weight | 18.4 kg |
Warhead Effective Radius | ≥ 20 m |
Fuse Type | Impact |
TRB-122
Feature | Value |
Caliber | 122 mm |
Weight | 66 kg |
Minimum Range | 16 km (Sea level) / 21 km (600 m altitude) |
Range with Brake Ring | 10 km |
Maximum Range | 36 km (Sea level) / 40 km (600 m altitude) |
Propellant Type | Composite solid |
Warhead Type | High-explosive + fragmentation |
Warhead Weight | 18 kg |
Warhead Effective Radius | ≥ 40 m |
Fuse Type | Impact and Proximity |

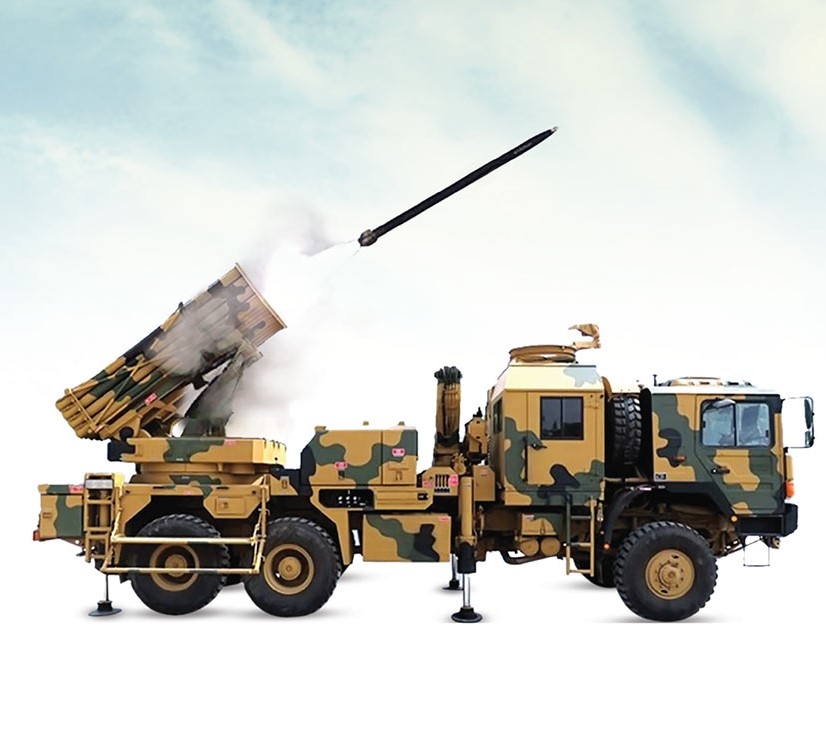

Roketsan Rocket Launcher System (Roketsan)
