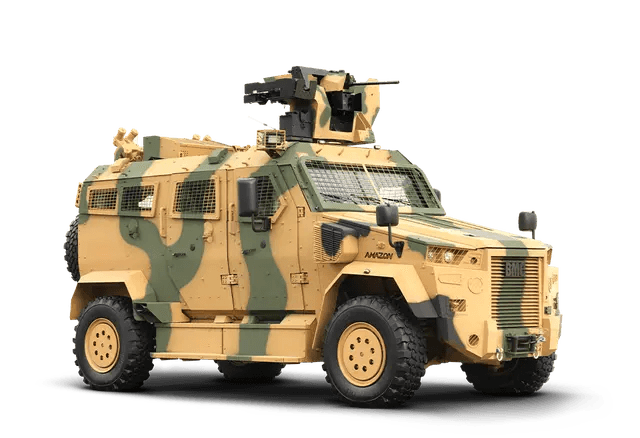

BMC Amazon is a 4x4 tactical wheeled armored vehicle produced by the Turkish defense industry company BMC. Classified as a multi-purpose armored vehicle (MPAV), the Amazon is designed to be used in various missions such as personnel transport, reconnaissance, command and control, border security, and internal security operations.

BMC Ottonom 4x4 (BMC)

Design and Technical Specifications

The Amazon features a monocoque V-shaped hull design. This special design provides a high level of protection against mines and improvised explosive devices (IEDs). The vehicle offers varying levels of ballistic protection according to STANAG 4569 standards. While the Amazon's armored structure protects the crew against various threats, its high mobility allows for effective operations even in challenging terrain conditions.

• Engine: Cummins ISB 360 turbo intercooler diesel engine
• Maximum Speed: 110 km/h
• Range: 800 km
• Fording Depth: 800 mm
• Climbing Capability: 60%
• Side Slope: 30%
• Personnel Capacity: Up to 7 people (may vary by configuration)
• Weight: 14500 kg (maximum loaded weight)
• Drive System: 4x4
• Suspension: Independent suspension
• Tire System: Central tire inflation system (CTIS)
• Other Features: Automatic fire suppression system, run-flat tires, air conditioning

Variants

• Amazon RWS (Remote Weapon System): This is the remotely controlled version. This version has been developed to reduce the need for manned operations, especially in risky areas.
• Amazon Autonomous: A prototype with autonomous driving capability has been developed. This version is considered an important step for future unmanned ground vehicle (UGV) projects.

Areas of Use

The Amazon is actively used by both the Turkish Armed Forces and the security forces of other countries. The vehicle's versatility enables it to meet various operational needs:

• Personnel transport
• Reconnaissance
• Command and control
• Border security
• Internal security operations
