BMC Tank Carrier Vehicle (8x8)

The BMC 8x8 Tank Carrier is a critical logistics support vehicle developed and manufactured by the Turkish defense industry company BMC, designed to safely and efficiently transport heavy armored vehicles, particularly main battle tanks and other high-weight military equipment. Engineered to meet the operational requirements of modern armies, it aims to deliver high payload capacity, superior mobility in challenging terrain, and reliable performance over long distances. The vehicle is in active service with the Turkish Armed Forces and has also been evaluated by several foreign militaries with similar needs.

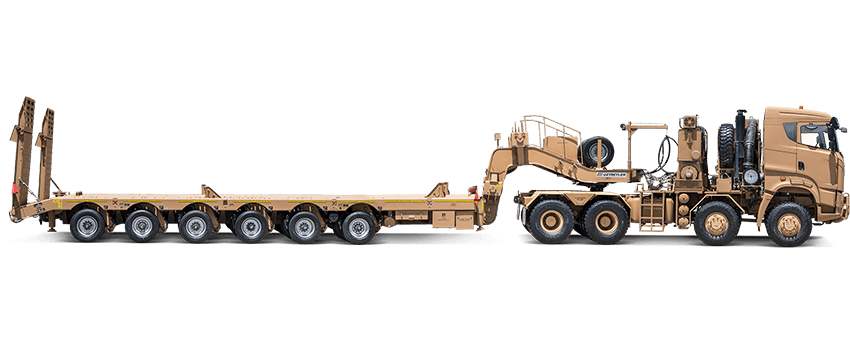

^{BMC 8x8 Tank Carrier (}BMC⁾

The engineering design of the BMC 8x8 Tank Carrier focuses on meeting the demands of transporting heavy loads and operating in demanding terrain conditions. The vehicle features a robust chassis for balanced load distribution and a suspension system that ensures stability across varied ground surfaces. Operationally, the vehicle is typically used in conjunction with a specialized heavy-duty trailer tailored to the load being transported.

• Engine: Cummins ISX15 turbo intercooler diesel engine delivering high torque and power output. The engine produces 620 horsepower, enabling the vehicle to perform effectively under heavy loads. Fuel efficiency and durability are key factors considered in operational use.
• Transmission: Allison fully automatic transmission offering seven forward and one reverse gear. The automatic transmission enhances driving ease while optimized gear shifts contribute to improved fuel economy. The transmission’s adaptability to different terrain and road conditions affects the vehicle’s overall performance.
• Drive System: The 8x8 configuration, with all eight wheels driven, significantly enhances off-road performance. This system improves traction and mobility especially on slippery, muddy, or uneven surfaces.
• Speed and Range: The vehicle can reach a maximum speed of 90 km/h. With a range of 950 km, it reduces the need for refueling during long-distance logistics missions.
• Off-Road Capabilities: The vehicle can climb gradients of up to 60% on its own and 30% when towing a trailer. It can ford water up to 75 cm deep, providing flexibility in overcoming natural obstacles.
• Weight and Payload Capacity: With a total weight of 120 tons, the vehicle offers a towing capacity of 70 tons, enabling the transport of heavy main battle tanks.
• Driving and Comfort Features: Rigid axles are supported by parabolic springs and a sway bar. Air and drum brake systems, along with EBS, engine braking, and retarder systems, ensure safe driving. The four-person “Tuğra Cab” includes two sleeping berths, heating, and air conditioning, enhancing crew comfort during extended missions.

The BMC 8x8 Tank Carrier holds a vital role in the logistics operations of modern armies. Its primary applications include:

• Transport of main battle tanks (MBTs) to operational areas.
• Transport of heavy armored personnel carriers (APCs) and other tracked or wheeled armored vehicles.
• Movement of heavy artillery systems and other large-scale military equipment.
• Recovery and transport of damaged or malfunctioning heavy vehicles.
• Logistical support during military exercises and deployments.

The use of such vehicles supports the strategic mobility of armed forces and enables the rapid and secure delivery of heavy equipment to desired locations.
