Dielectric Barrier Discharge

Dielectric Barrier Discharge (DBD) is a type of electrical discharge in which one or more dielectric (insulating) layers are positioned between two electrodes. DBD systems are typically designed to operate at atmospheric pressure, generating electrical forces that interact with the surrounding air by creating an ionized gas medium (plasma). These systems are particularly used in flow control applications, known as “plasma actuators,” especially in surface discharge configurations.

Working Principle

In a DBD system, one electrode is covered with a dielectric material while the other is in direct contact with air. When an alternating current (AC) is applied to the two electrodes, charge accumulates over time on the dielectric surface. These charges ionize air molecules via the electric field, initiating a flow known as ion wind. The collision of ionized particles with neutral molecules results in momentum transfer, generating a flow parallel to the surface.

This mechanism can vary depending on the applied voltage, frequency, electrode geometry, and properties of the ambient gas. The plasma is self-limiting in nature, allowing it to be sustained without forming an arc discharge. This characteristic makes DBD a safe and controllable method for plasma generation at atmospheric pressure.

Typical operating voltages are in the range of several kilovolts, and frequencies are in the kilohertz range. The overlapping region between the electrodes is where the electric field is concentrated and plasma is generated. Plasma typically initiates at the exposed edge of the electrode and propagates toward the dielectric surface.

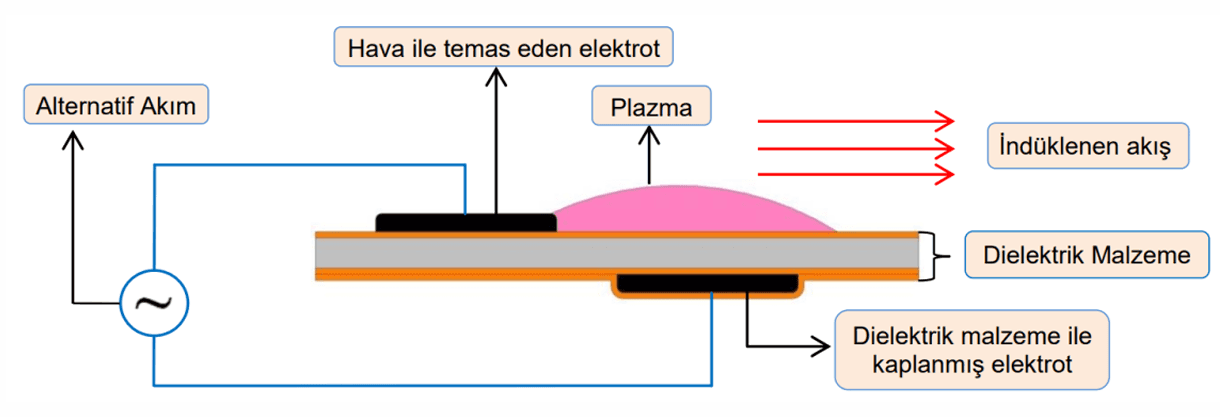

Dielectric Barrier Discharge Plasma Schematic (ResearchGate)

Applications

DBD plasma actuators are widely used to delay flow separation, reduce drag, and enhance lift on aerodynamic surfaces. They can be integrated onto flow-perpendicular bodies such as aircraft wing profiles, helicopter rotors, turbine blades, compressor vanes, and landing gear.

Advantages and Limitations

DBD systems offer advantages including the absence of moving parts, light weight, rapid response, integrability into surfaces, and low energy consumption. Additionally, they require less maintenance compared to conventional methods. However, the force generated by DBD actuators is limited, and their effectiveness may remain constrained in high-speed flows.
