The Ducati Panigale V4 is the flagship supersport motorcycle model of the Italian manufacturer Ducati. Introduced in 2018, it marked the brand’s first mass-produced motorcycle to feature a V4 engine, derived from the Desmosedici GP—Ducati’s MotoGP race bike—departing from the company’s traditional V-twin configuration. Designed to maximize track performance, the Panigale V4 is positioned at the pinnacle of the supersport segment with its advanced aerodynamic features, state-of-the-art electronic systems, and lightweight chassis architecture.

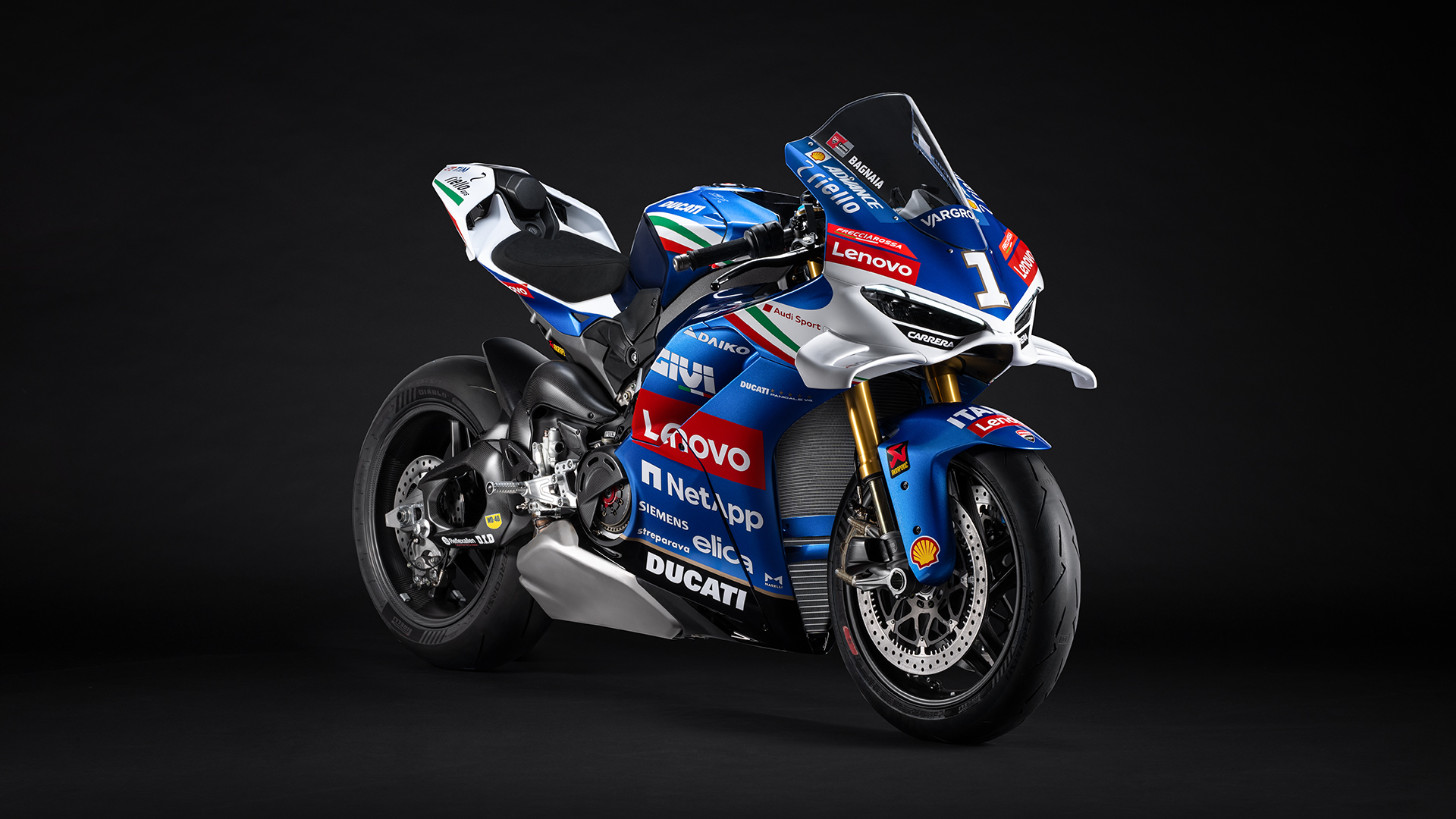

^{The Ducati Panigale V4 (Ducati)}

Design and Aerodynamics

The design of the Panigale V4 is characterized by its aerodynamically optimized form, reflecting its track-focused purpose. Its aesthetics are directly influenced by Ducati's heritage, emphasizing both performance and visual impact.

Key Design Elements:

• Integrated Aerodynamic Wings (Winglets): Featured on certain variants, these are designed to increase downforce at high speeds, improving stability and reducing wheelie tendency.
• Compact LED Lighting: Features sharp, distinctive LED headlights and taillights that contribute to its aggressive front profile and minimalist rear.
• Muscular Fuel Tank and Fairings: Designed for optimal rider ergonomics during aggressive cornering and high-speed maneuvers, while also enhancing aerodynamic efficiency.
• Single-sided Swingarm: A signature Ducati design element that contributes to the motorcycle's aesthetic appeal and facilitates quick wheel changes.

Engine Specifications and Power Delivery

The Ducati Panigale V4 is powered by the liquid-cooled, 90-degree V4 "Desmosedici Stradale" engine. This engine architecture is derived directly from Ducati's MotoGP racing program, offering high power output and a broad torque curve.

Key Specifications of the Engine and Drivetrain:

• Engine Type: Liquid-cooled, 90° V4, Desmodromic valve actuation, 4 valves per cylinder, "Desmosedici Stradale."
• Displacement: 1,103 cc (for standard V4 models; R and Superleggera variants feature different displacements).
• Maximum Power Output: Approximately 214 PS (157.5 kW) @ 13,000 rpm (for standard V4 models, may vary by year/variant).
• Maximum Torque: Approximately 124 Nm @ 10,000 rpm (for standard V4 models, may vary by year/variant).
• Fuel Delivery System: Electronic fuel injection with Ride-by-Wire throttle control.
• Transmission: 6-speed manual gearbox.
• Clutch System: Equipped with a hydraulically controlled slipper and assist clutch.

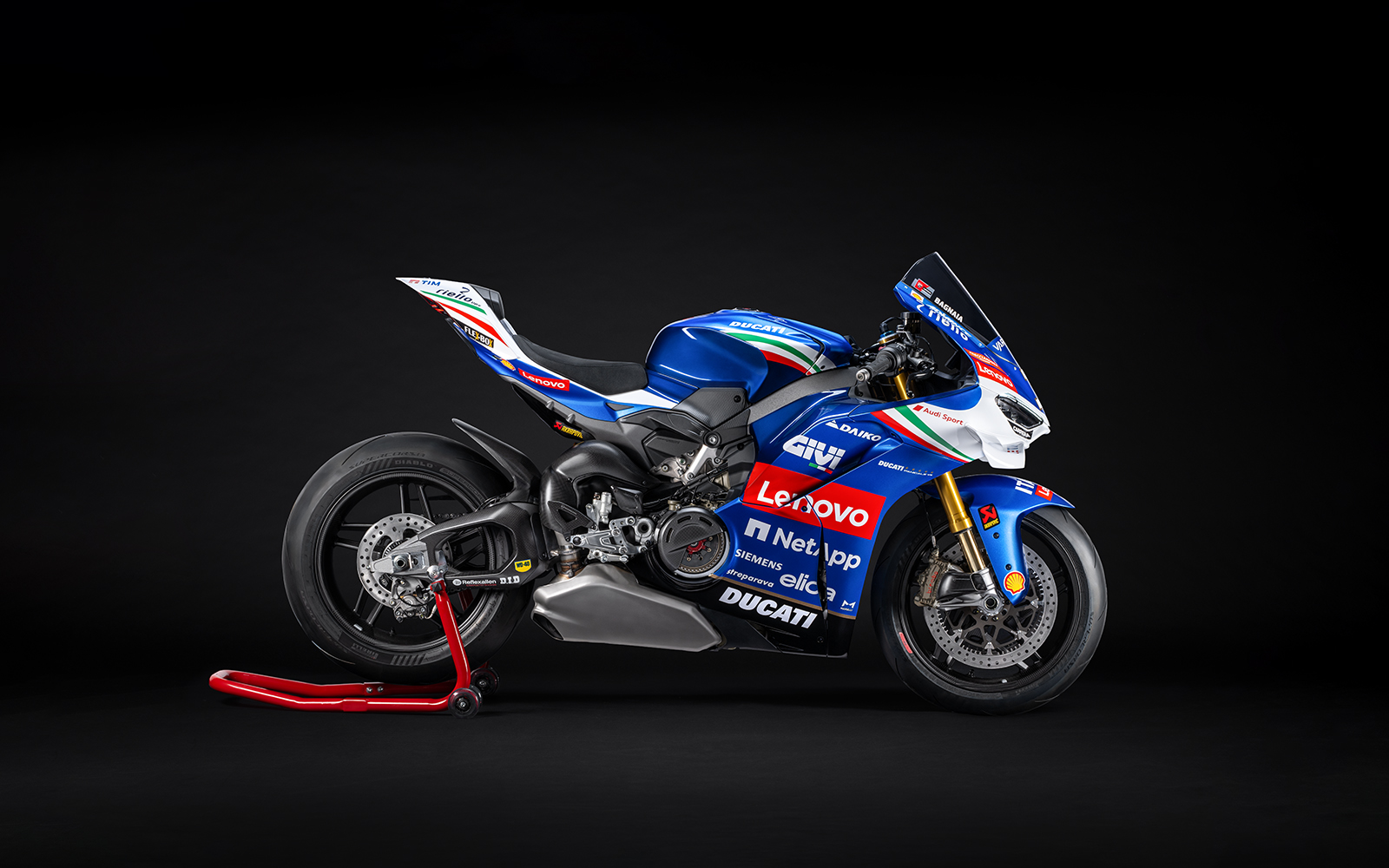

^{The Ducati Panigale V4 (Ducati)}

Chassis, Suspension, and Braking Systems

The Panigale V4's chassis is designed to maximize stiffness and agility for track performance, utilizing the engine as a stressed member. High-specification suspension and braking components are integrated to manage its power output effectively.

Details of the Chassis, Suspension, and Braking System:

• Frame: "Front Frame" aluminum alloy structure, which uses the V4 engine as a load-bearing element, contributing to its lightweight design.
• Front Suspension: Features 43 mm fully adjustable Showa Big Piston Forks (BPF) on standard models, with Öhlins electronically adjustable suspension on higher-spec variants (e.g., V4 S, V4 SP2).
• Rear Suspension: Fully adjustable monoshock absorber, with Öhlins electronically adjustable units on higher-spec variants.
• Braking System: Features top-tier Brembo Stylema monobloc radial calipers with dual front discs and a single rear disc. Bosch Cornering ABS EVO is standard, providing optimized braking performance even at lean angles.
• Wheels and Tires: Lightweight alloy wheels (forged aluminum or carbon fiber on higher-spec models) fitted with high-performance Pirelli Diablo Supercorsa SP tires, designed for track and aggressive road use.

Electronic Systems and Rider Aids

The Ducati Panigale V4 integrates a comprehensive suite of electronic systems managed by a 6-axis Inertial Measurement Unit (IMU). These systems are designed to enhance control, safety, and track performance, allowing riders to fine-tune the bike's behavior.

Core Electronic and Rider Assistance Features:

• Riding Modes: Pre-configured settings (e.g., Race, Sport, Street) that adjust engine power delivery, throttle response, and electronic intervention levels.
• Power Modes: Allow riders to select different engine power maps.
• Ducati Traction Control (DTC EVO 2): An advanced, lean-angle sensitive traction control system.
• Ducati Wheelie Control (DWC EVO): Manages front wheel lift during acceleration.
• Ducati Slide Control (DSC): Assists the rider in managing power-slides during corner exits.
• Engine Brake Control (EBC EVO): Optimizes engine braking based on lean angle and rear wheel slip.
• Ducati Quick Shift (DQS EVO 2) up/down: Enables clutchless upshifts and downshifts.
• Bosch Cornering ABS EVO: Provides optimized braking performance in corners.
• Ducati Launch Control (DPL): Aids in maximizing acceleration from a standstill.

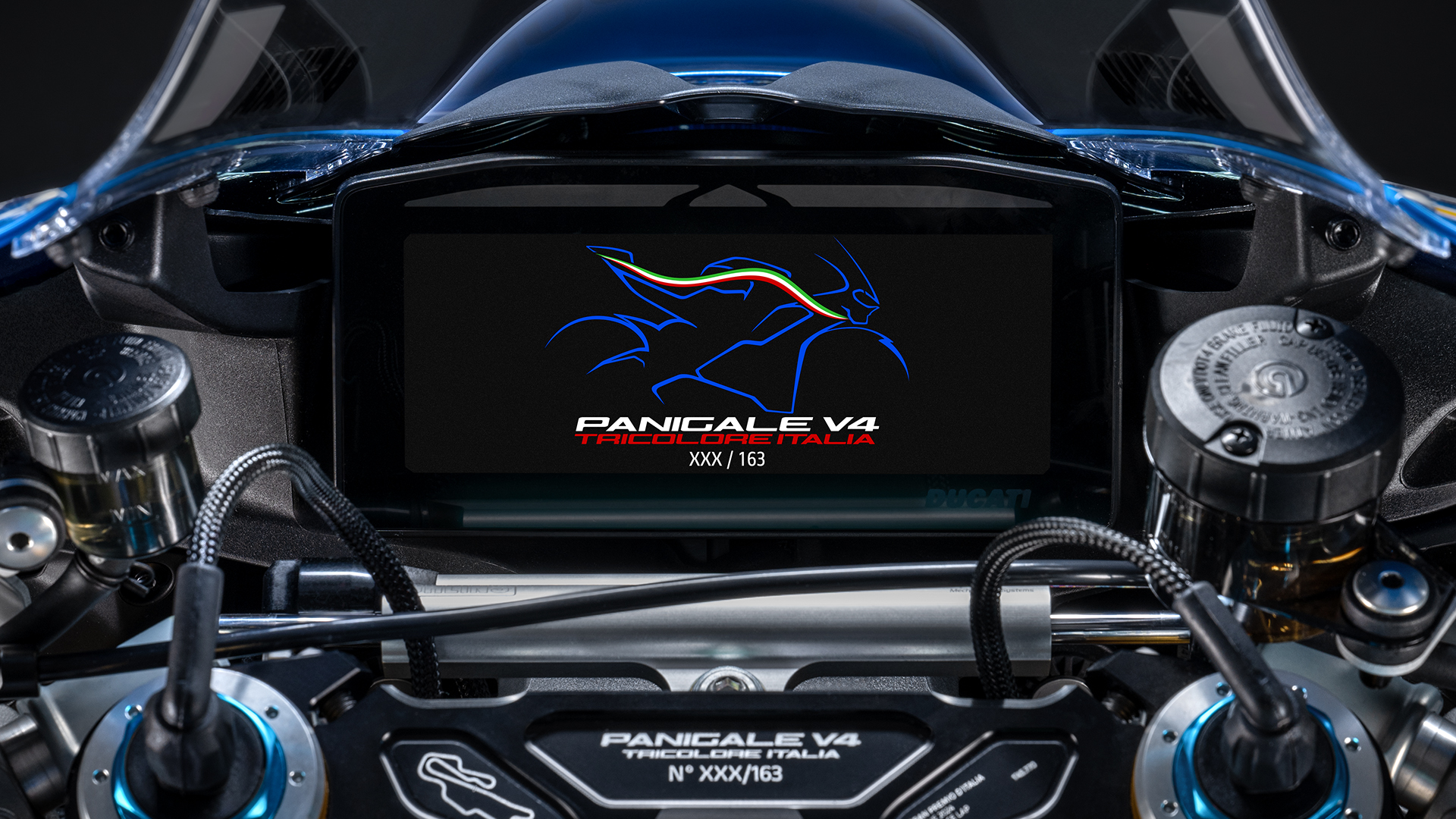

• Full-Color TFT Instrument Panel: A high-resolution display providing extensive riding data, system settings, and lap timer functionality.
• Ducati Data Analyser+ (DDA+): Allows for comprehensive analysis of riding performance (optional/standard on some variants).

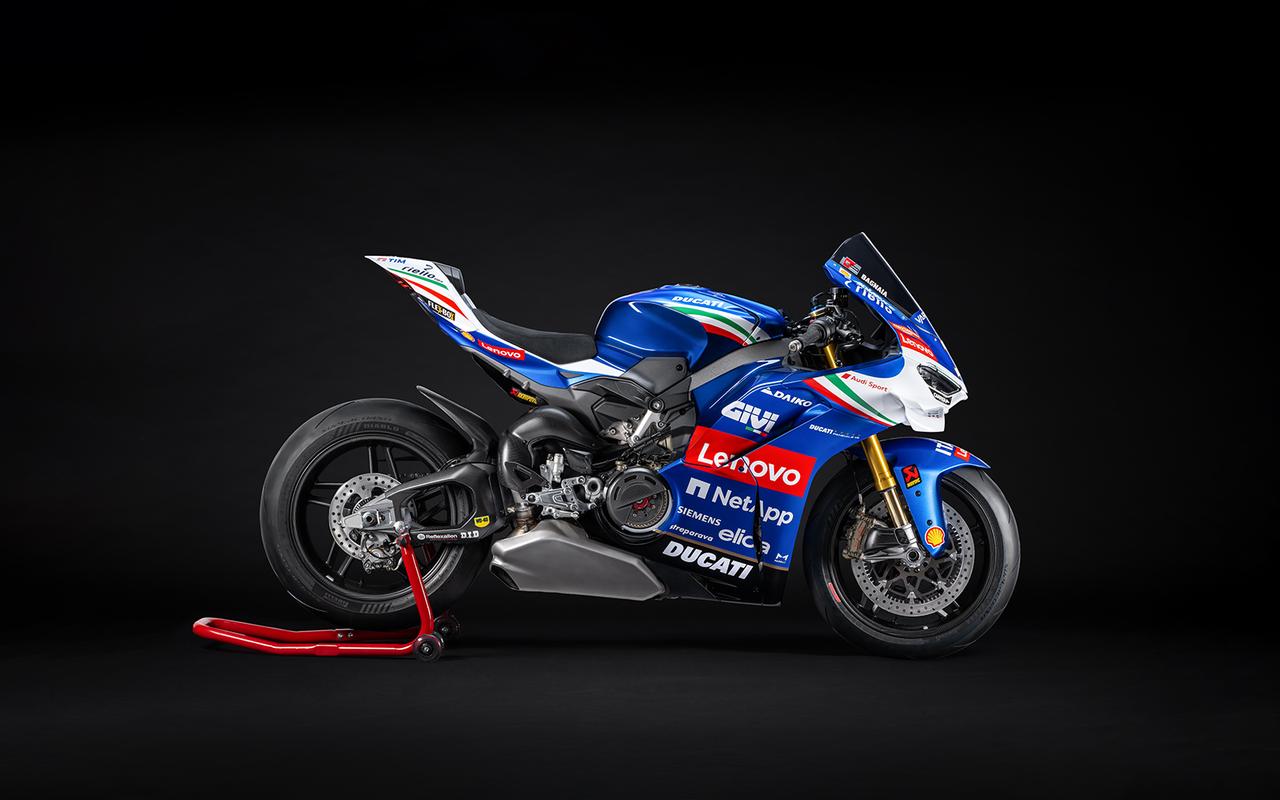

^{The Ducati Panigale V4 (Ducati)}

Intended Use and Target Audience

While the Ducati Panigale V4 is designed with a focus on track performance, it is also constructed for legal road use. It is intended to deliver speed for experienced riders, while the advanced electronic rider aids enhance usability and control in various riding conditions.
