Frame Relay is a fast, flexible, and cost-effective communication technology developed for data transmission over wide area networks (WANs). This technology provides a structure that transmits data packets by switching them between endpoints. Its primary purpose is to meet organizations’ varying bandwidth needs and offer an alternative to expensive leased lines.

Frame Relay uses a packet-switched transmission structure and operates at the data link layer, which is the second layer of the OSI model. For physical connections, digital signal interfaces such as V.35 and G.703 are typically used, while the data structure employed in transmission is a frame format similar to HDLC (High-level Data Link Control). Thanks to this structure, different types of information—such as voice, data, and video—can be transported across the network in small-sized frames.

The technology creates logical connections through virtual circuits, known as Permanent Virtual Circuits (PVCs). PVCs are defined at the outset and remain constantly ready for connection. This method allows immediate data transmission without the need to establish a connection beforehand. In this respect, it reduces both latency and protocol complexity.

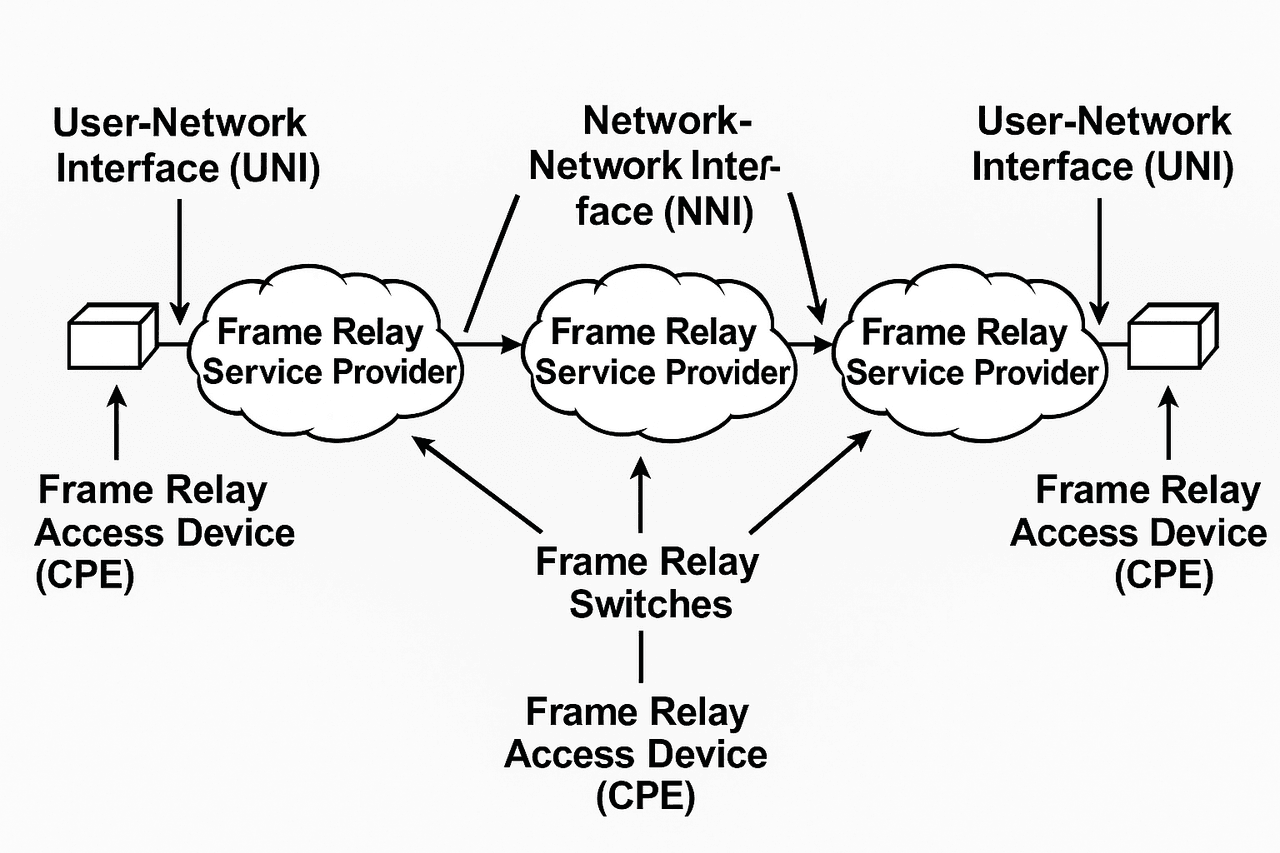

^{Visual Representing the Frame Relay Communication Structure (Generated by Artificial Intelligence)}

Operating Structure and Transmission Mechanism

Frame Relay networks enable data transmission between “access devices” (e.g., routers) and “network terminal units” (e.g., modems, CSU/DSU units). Each connection within the network is marked with a unique identifier called DLCI (Data Link Connection Identifier). Thanks to this identifier, many logical circuits can be created over the same physical line. In this way, multiple institutions can access multiple remote locations through a single connection. During transmission, frames can be prioritized; for instance, prioritizing voice packets helps reduce latency. Moreover, since Frame Relay has a low level of error control, its transmission speed is high. Error control is generally handled by upper-layer protocols.

Technical Infrastructure and Standards

The fundamental layer on which Frame Relay operates is the data link layer, which is the second layer of the OSI model. This layer is responsible for the creation, addressing, and transmission of frames. Frame Relay frames typically include the following:

• DLCI: Identifier unique to each connection
• FECN/BECN: Indicators that notify of congestion in the network
• DE (Discard Eligibility): A flag indicating that low-priority data can be discarded during congestion

At the physical connection layer, Frame Relay typically supports interfaces such as V.35 or G.703. These interfaces, commonly used for WAN connections, provide high-speed digital transmission. In addition, Frame Relay includes the concept of “Committed Information Rate” (CIR), which refers to the guaranteed bandwidth. CIR is the minimum data transmission rate guaranteed by the network provider. Transmissions above this rate occur as bursts, meaning extra data can be sent as long as network capacity allows.

Use Cases and Application Examples

Since the 1990s, Frame Relay has been preferred especially by public institutions, universities, banks, and large-scale companies operating over wide areas. Common areas of use include inter-campus connections, remote office access, video conferencing systems, and access to centralized databases.

In a sample study conducted in Türkiye^【1】 , a point-to-point Frame Relay connection was established between Fırat University and Anadolu University, and video conferencing was performed over this line. In this application, modems (e.g., HTU-2M or BTE-2048), routers, and specially defined IP addresses were used to establish a virtual circuit, and transmission was provided within a range of 512 Kbps to 1 Mbps. Tests showed that audio and video quality varied depending on bandwidth. At 1 Mbps transmission speed, video conferencing quality was found to be high.

Frame Relay Topologies

Frame Relay technology can be implemented in various network structures using logical virtual circuits (PVC – Permanent Virtual Circuit). The way these structures are built, the path of data transmission, and the central-edge relationships determine the type of topology used. The most common topologies in Frame Relay networks are point-to-point, hub-and-spoke (star), and mesh topologies.

Point-to-Point Topology

This is the simplest topology, where a virtual circuit is defined between only two endpoints. Each connection includes only two devices, either physically or logically. Data is transmitted directly between the endpoints. Due to its simplicity, it is commonly preferred in applications that require uninterrupted and direct communication between two points.

Hub-and-Spoke Topology

In this structure, separate virtual circuits are defined between a central hub and multiple spoke points. Spoke endpoints communicate with each other indirectly through the hub. While this structure provides ease of management, dependency on the central point increases. If the hub experiences an issue, the entire system can be affected.

Mesh Topology

The mesh topology allows each endpoint to communicate directly with other endpoints through virtual circuits. In full mesh, all nodes are interconnected; in partial mesh, only the necessary connections are established. This structure provides high availability and flexible data transmission. However, due to the large number of virtual circuits needed, it is complex in terms of configuration and management.

The flexibility offered by Frame Relay has allowed institutions to develop customized WAN solutions according to their network needs. The chosen topology is determined based on the scale of the network, cost objectives, and performance expectations.

Advantages

• Cost-effectiveness: Lower cost compared to leased lines
• Flexibility: Ability to offer services at various speeds and allocate bandwidth as needed
• Multi-access: Multiple logical connections can be established over a single physical connection
• Application diversity: Supports transmission of data, voice, and video

Disadvantages and Limitations

• Weak error control mechanisms: Packet loss or corruption directly affects transmission quality
• Delay sensitivity: High latency cannot be tolerated in real-time applications (e.g., video conferencing)
• Technological obsolescence: Offers less flexibility and service diversity compared to next-generation WAN technologies

Over time, Frame Relay technology has been replaced by more advanced and flexible solutions such as MPLS (Multi Protocol Label Switching), Metro Ethernet, and VPN-based WAN services. Nevertheless, Frame Relay formed the foundation of packet-switched networks, provided economical solutions for wide-area communication, and was widely preferred by institutions seeking low-cost network infrastructure for a long period.
