Fundamentals of Power Electronic

Power electronics is a branch of engineering concerned with the control, conversion, and regulation of electrical energy. This field focuses on semiconductor devices, circuit design, control systems, and energy conversion applications.

Power electronics enables the following through controlling high-power electrical signals using low-power control signals:

• Conversion (e.g., from AC to DC or vice versa),
• Control (e.g., motor speed control),
• Storage and transmission of electrical energy.

Power Electronic Circuit

Semiconductor Devices

The fundamental components used in energy conversion include:

• Diodes: Allow unidirectional current flow (e.g., used in rectifiers).
• Bipolar Junction Transistor (BJT): A type of transistor used for current control.
• Metal Oxide Semiconductor Field Effect Transistor (MOSFET): Commonly used in fast-switching and low-power applications.
• Insulated Gate Bipolar Transistor (IGBT): Preferred for high-voltage and high-power applications.
• Thyristor (SCR): Utilized in high-power rectification and switching applications.

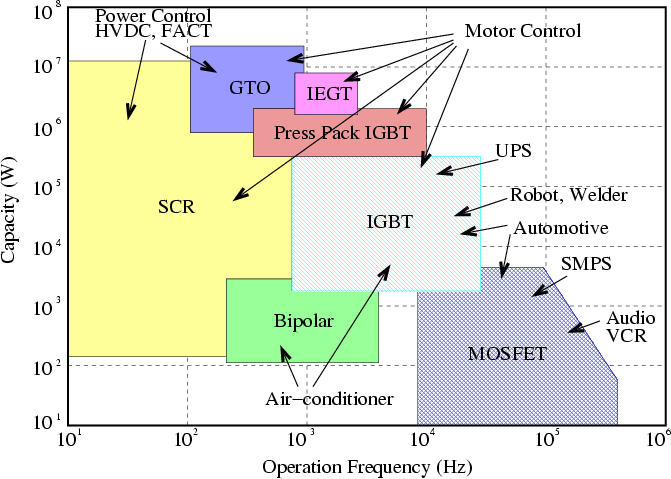

Power vs Frequency Values for Semiconductor Components

Converters

Key converters in power electronics that enable energy conversion:

1. AC-DC Converters (Rectifiers): Convert AC to DC. Include half-wave and full-wave rectifiers.
2. DC-DC Converters: Transform one DC voltage level to another. Examples include Buck (step-down), Boost (step-up), and Buck-Boost converters (step-down/step-up).
3. DC-AC Converters (Inverters): Convert DC to AC.
4. AC-AC Converters: Adjust AC voltage and frequency. Examples include voltage regulators and phase shifters.

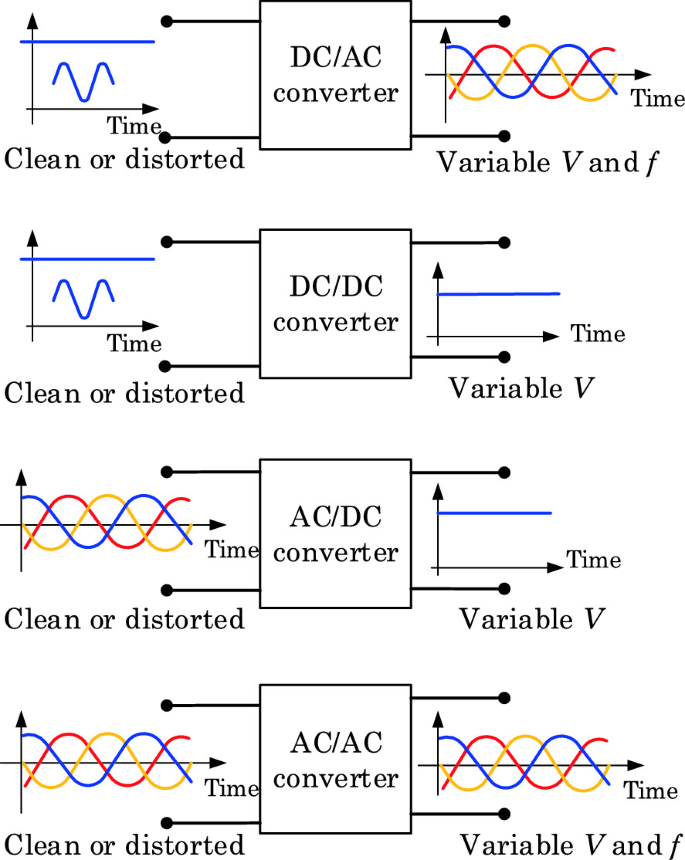

Converter Types

Key Concepts in Power Electronics

• Switching: Semiconductor devices operate in "on" or "off" states to minimize energy losses.
• Harmonics: Undesirable high-frequency signals generated during conversion. Filters are used to suppress harmonics.
• Efficiency: Minimizing energy losses in power converters is crucial for improved efficiency.
• Power Factor: The ratio of active power to apparent power in circuits. A high power factor improves energy transmission efficiency.

Applications

• Renewable Energy Systems: Conversion of energy from solar panels and wind turbines.
• Motor Control: Speed and torque control of industrial motors.
• Energy Storage: Battery management systems and electric vehicles.
• Consumer Electronics: Power supplies and chargers.
• Electric Grids: High-voltage energy transmission and distribution.

Power electronics form the backbone of modern energy systems and are essential for improving energy efficiency and sustainability.
