Hiller VZ-1 Pawnee

The Hiller VZ-1 Pawnee was an experimental aircraft evaluated by the U.S. Army in the 1950s. Described as a "flying platform," the vehicle was intended to allow a single person to be directed a few meters above the ground with vertical take-off and landing (VTOL) capability. The design is a notable example of the research conducted on individual air mobility.

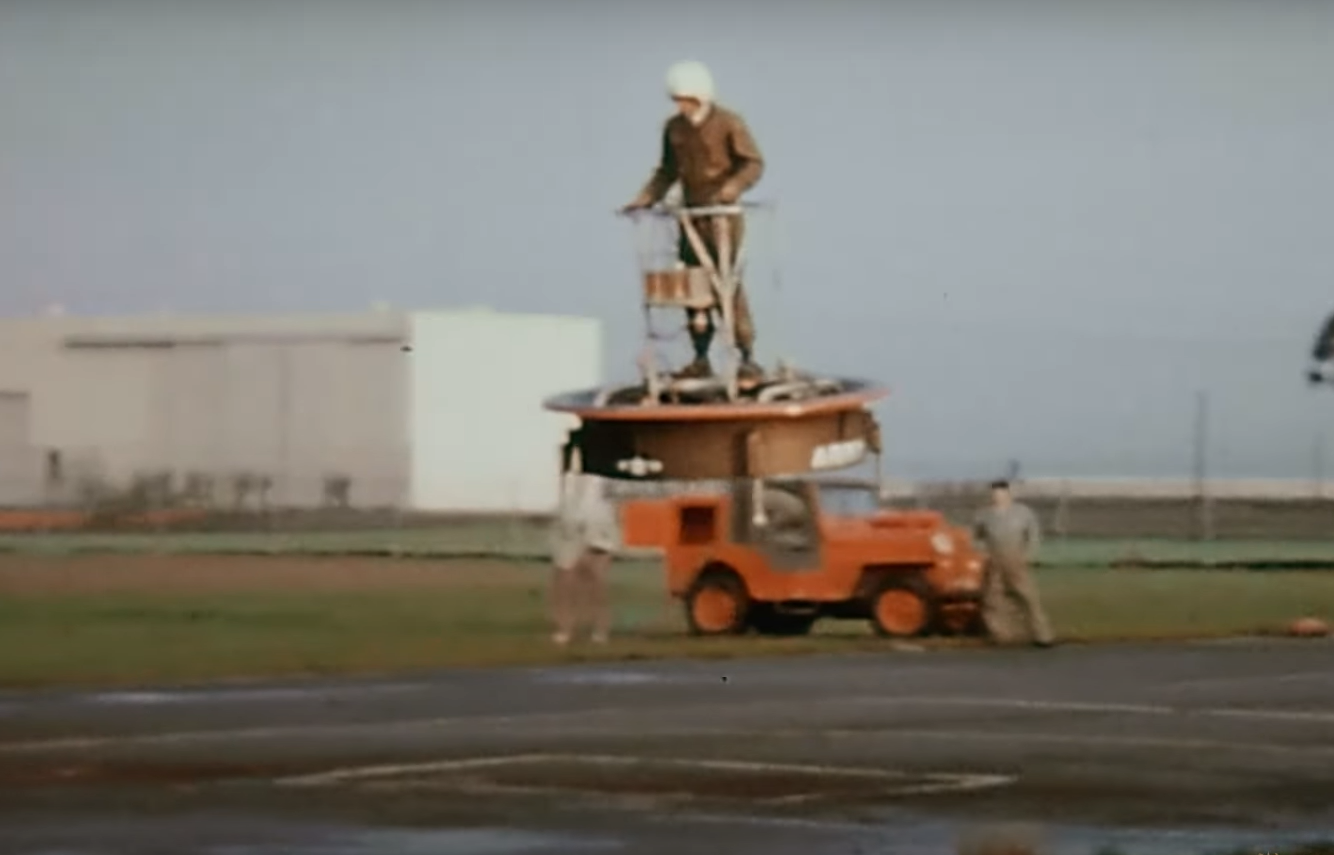

Hiller VZ-1 Pawnee (Retro Transport)

Purpose of Development and History

In the 1950s, the U.S. Army was exploring small, highly maneuverable aircraft that could be used alongside ground troops. As part of this effort, it sought alternative solutions for reconnaissance, surveillance, and light cargo transport. Hiller Aircraft developed the VZ-1 Pawnee project within this framework. The goal was to design a simple flying platform that a pilot could steer using their body movements.

Design and Technical Specifications

The Hiller VZ-1 Pawnee had the following design characteristics:

• Platform Structure: At the center of the vehicle was a circular platform where the pilot stood, positioned as if on a flying step.
• Ducted Fan System: The vehicle's lift was generated by two concentric, counter-rotating propellers located within a circular duct directly beneath the platform. This "ducted fan" system increased the safety of the propellers while also optimizing lift efficiency.
• Engine Power: Early prototypes used piston engines like the Nelson H-59, while later tests experimented with more powerful engines such as the Porsche 821.
• Intuitive Control: The pilot steered the Pawnee by using control sticks and, most importantly, by shifting their body weight. This was intended to provide a direct and intuitive control experience. Small control vanes were also present on the sides for balance.
• Compact Dimensions: It had a very compact structure, with a diameter of approximately 2.59 meters (8 feet 6 inches) and a height of 2.13 meters (7 feet).

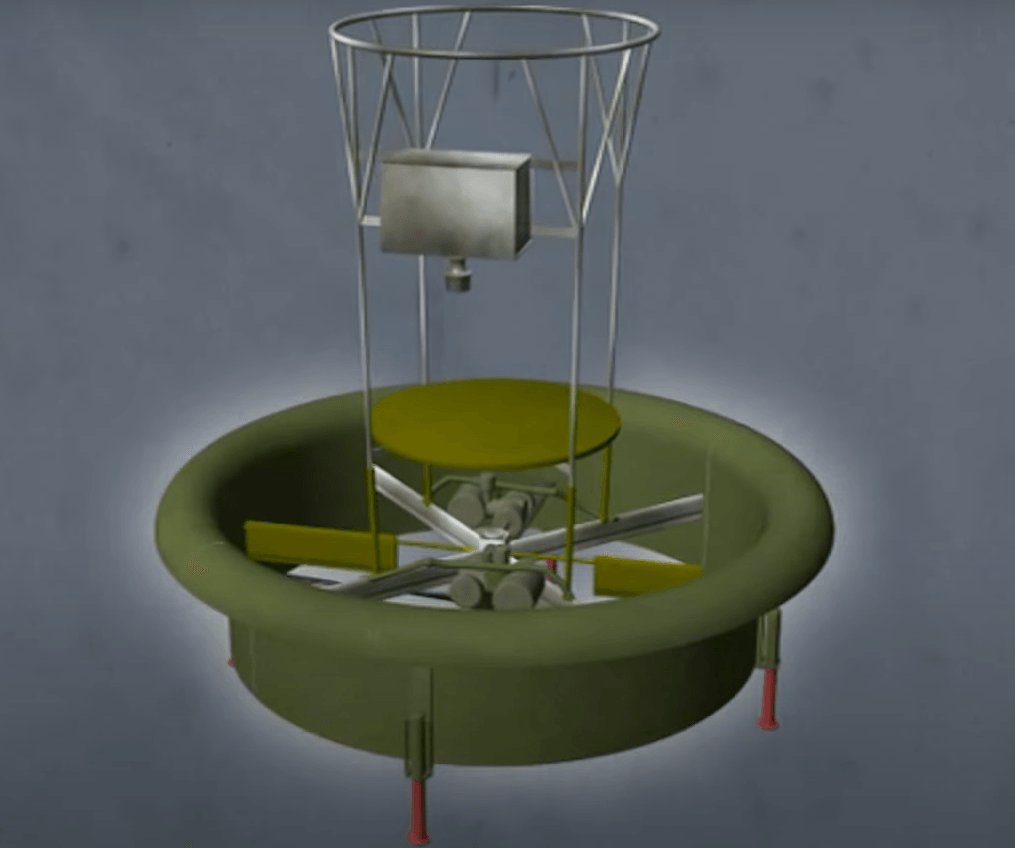

Hiller VZ-1 Pawnee (Smithsonian Channel)

Operational Status and Fate

The Hiller VZ-1 Pawnee was subjected to various test flights in the late 1950s. These tests evaluated the vehicle's flight capabilities and its body-movement-based control concept. However, the tests revealed the aircraft's operational limitations. Its low speed, limited range, and insufficient carrying capacity restricted its suitability for military missions. Control difficulties in windy conditions and stability issues at higher altitudes were also factors that prevented the continuation of the project. For these reasons, the VZ-1 Pawnee was removed from the development process in the early 1960s and never reached an operational stage. A few prototypes that were produced are now exhibited in museums.

Significance and Legacy

Although it was never used operationally, the Hiller VZ-1 Pawnee is regarded in aviation history as an example of experimental research into personal aircraft and vertical take-off and landing (VTOL) technologies. The "flying platform" concept and the body-movement-based control approach provided technical data and experience for subsequent VTOL systems and individual air mobility projects. The project holds a place in historical records as part of the engineering trials and technological quests in this field.
