The Internal Oblique Muscle is one of the major muscles in the abdominal wall. It lies just below the External Oblique Muscle and above the Transversus Abdominis Muscle. This muscle plays a critical role in the movement and support of the abdominal region.

Anatomy

Morphology and Connection Points

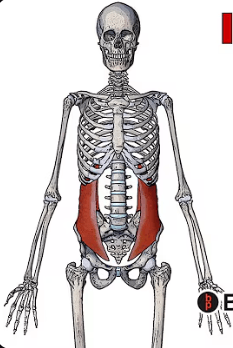

The Internal Oblique is a powerful oblique muscle located in the middle layer of the abdominal wall. Its fibers originate from the lower back portion of the thoracolumbar fascia, the anterior two-thirds of the iliac crest, and the lateral half of the inguinal ligament. These fibers run superomedially (upward and inward), perpendicular to the fibers of the external oblique muscle. These fibers extend to the inferior borders of the 10th, 11th, and 12th ribs, as well as the linea alba. The Internal Oblique, along with the External Oblique muscle, forms the sheath of the rectus abdominis (rectus sheath). In males, the lower fibers of this muscle contribute to the formation of the cremaster muscle, which descends into the testicle, and form a functional connection with it. This structure enhances the anatomical importance of the internal oblique muscle as well as its functional impact.

Embryological Origin and Classification

The internal oblique muscle is part of the ventrolateral abdominal wall muscle group, which develops embryologically from somites derived from paraxial mesoderm. It lies in the middle of the three-layered system that forms the anterolateral abdominal wall. It lies below the external oblique and above the transversus abdominis. Developmentally, it forms a functional unit with the external oblique and transversus abdominis muscles.

Nerve Innervation and Vascular Supply

The Internal Oblique Muscle is innervated by the iliohypogastric and ilioinguinal nerves (L1), along with the lower intercostal nerves (T7–T12). These nerves provide motor control to the muscle and branch along the abdominal wall in accordance with its segmental structure. The muscle's vascular supply is primarily provided by the lower intercostal arteries, lumbar arteries, and branches of the iliac artery. These vessels provide adequate perfusion to the different segments of the muscle.

Function and Clinical Relationships

The internal oblique muscle has two primary functions: assisting respiration and enabling trunk movements. In terms of breathing, the internal oblique muscle is the diaphragm's antagonist. When the diaphragm contracts, it expands the chest cavity, enabling inhalation; conversely, when the internal oblique muscle contracts, it pushes the abdominal organs upward, narrows the chest cavity, and supports exhalation (exhalation). Its most important motor functions are ipsilateral rotation and lateral flexion, that is, turning and bending the trunk to the same side. This muscle works particularly well with the contralateral external oblique muscle to produce torsional movements. For example, when the right internal oblique and left external oblique muscles contract together, the right shoulder rotates to the left. Therefore, the internal oblique muscles are described as ipsilateral rotators. This muscle's function is crucial for postural control and dynamic stabilization. Clinically, weakness or asymmetric activation of this muscle can lead to postural deformities and low back pain. Furthermore, the connection between the cremasteric reflex and muscle function is particularly important in evaluating the inguinal region in boys.
