Lenz's Law

Lenz's Law is crucial in electromagnetism and expresses a fundamental principle of electromagnetic induction. Discovered in 1834 by German physicist Heinrich Friedrich Emil Lenz, it determines the direction of induced electric current. Lenz's Law is based on Faraday's Law of Electromagnetic Induction, which states that the induced current will flow in a direction that opposes the change in the magnetic field that produced it. This principle is rooted in the law of conservation of energy and Newton's third law of motion.

Fundamental Principle of Lenz's Law

According to Lenz's Law, the induced electric current within a conductor creates a magnetic field that opposes the change in the magnetic field that caused it. In other words, the induced current works to counteract the effects of the magnetic field's change. The induced current moves in such a way as to resist any change in the magnetic field.

The mathematical expression of Lenz's Law is based on Faraday's Law of Electromagnetic Induction but includes a negative term. Faraday’s law defines the induced electromotive force (emf) due to a change in the magnetic field as follows:

Where:

• ϵ: Induced electromotive force (emf) [V]
• N: Number of turns in the coil
• ΔΦ: Change in magnetic flux [Wb]
• Δt: Time change [s]

The negative sign represents Lenz's Law's core principle of "opposing the change." In essence, the induced current generates a magnetic field that opposes the change in the magnetic field.

How Can a Magnetic Field Change Be Induced?

According to Lenz's Law, several methods can induce a change in the magnetic field:

1. Changing the orientation of the coil relative to the magnetic field: When the coil moves relative to the magnetic field, the magnetic flux changes.
2. Moving the coil into or out of the magnetic field: The magnetic flux changes when the coil enters or exits the magnetic field.
3. Changing the coil's surface area within the magnetic field: Altering the area of the coil exposed to the magnetic field results in a change in the magnetic flux.changes
4. Movement of a magnet: Moving a magnet towards or away from the coil causes a change in the magnetic flux.

Experiments to Demonstrate Lenz's Law

Lenz validated his law experimentally through several key experiments:

1. First Experiment: When a current is induced in a coil, it is observed that the magnetic field in the coil increases. Lenz discovered that the induced current creates a force that opposes this increase in magnetic flux.

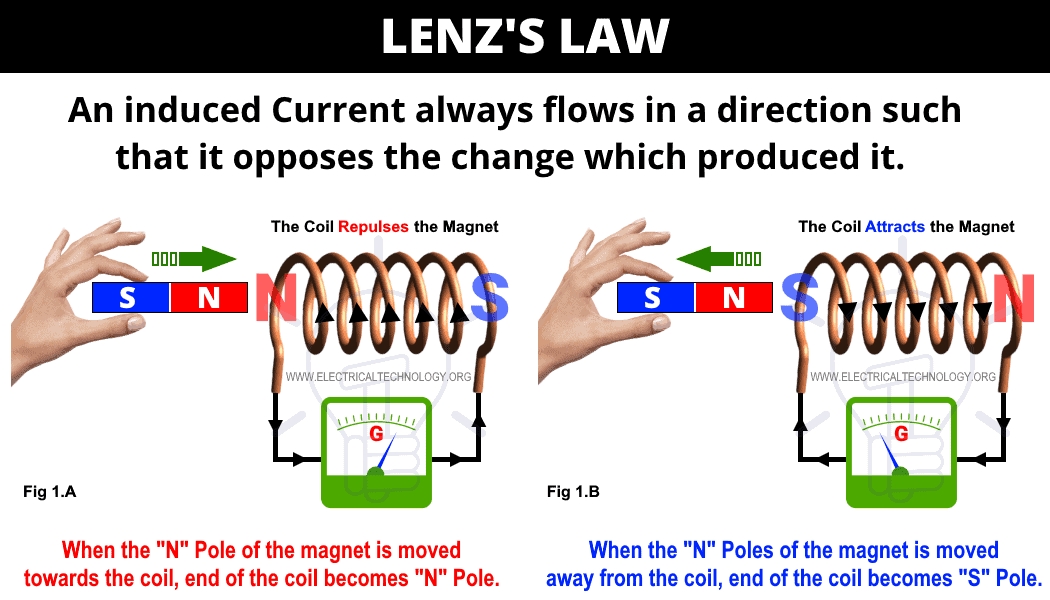

2. Second Experiment: When a magnet is brought near a coil, an induced current is generated due to the movement of the magnet. This current opposes the change in the magnetic field caused by the magnet's movement.
3. Third Experiment: When the coil is moved toward the magnetic field, the area of the coil within the field increases, influencing the direction of the induced current.

Applications of Lenz's Law

Lenz's Law is widely applied in various technologies and devices in everyday life and industry. This law ensures that technological devices function efficiently:

• Electromagnetic brakes: These brakes use Lenz's Law to reduce the speed of moving parts by generating currents that work against the motion.
• Induction cooktops: These cookers use Lenz's Law to induce currents in the cooking pots, causing them to heat up.
• Electric generators: Lenz's Law efficiently directs the energy generated through the motion of a magnetic field to produce electrical energy.
• Eddy current braking systems: These systems use Lenz's Law to direct currents that slow down moving parts.
• Metal detectors and card readers: These devices rely on Lenz's Law to detect metal objects and read cards.

Lenz's Law determines the direction of electromagnetic fields and currents and is fundamental to the law of conservation of energy. It is significant both theoretically and practically. Lenz's discovery has allowed us to understand the direction of responses to magnetic field changes, and this principle forms the foundation for many modern technologies. In conclusion, Lenz's Law is a crucial scientific principle governing energy transformation and the interaction of magnetic fields.
