Lithium Batteries

Lithium-based batteries are among the energy solutions of modern technology, offering high energy density, long lifetimes, and broad application ranges. These batteries, used from portable electronics to electric vehicles and large-scale energy storage systems, have created a modern in the energy sector.

Historical Development of Lithium Batteries

The earliest research on lithium batteries was initiated by G.N. Lewis in 1912, but commercial applications remained limited until the 1960s. During this period, primary (non-rechargeable) lithium batteries offered high energy density through metallic lithium anodes. In the 1970s, commercial success was achieved with systems combining lithium with electrolytes such as lithium-thionyl chloride and lithium-sulfur dioxide. Rechargeable (secondary) batteries progressed slowly in the 1980s due to problems caused by the reactivity of metallic lithium and dendrite formation. In 1991, Sony commercialized the lithium-ion (Li-ion) battery, overcoming these limitations with a graphite anode and lithium-cobalt-oxide (LiCoO₂) cathode, enabling widespread adoption of the technology.

Chemical Structure and Working Principle of Lithium Batteries

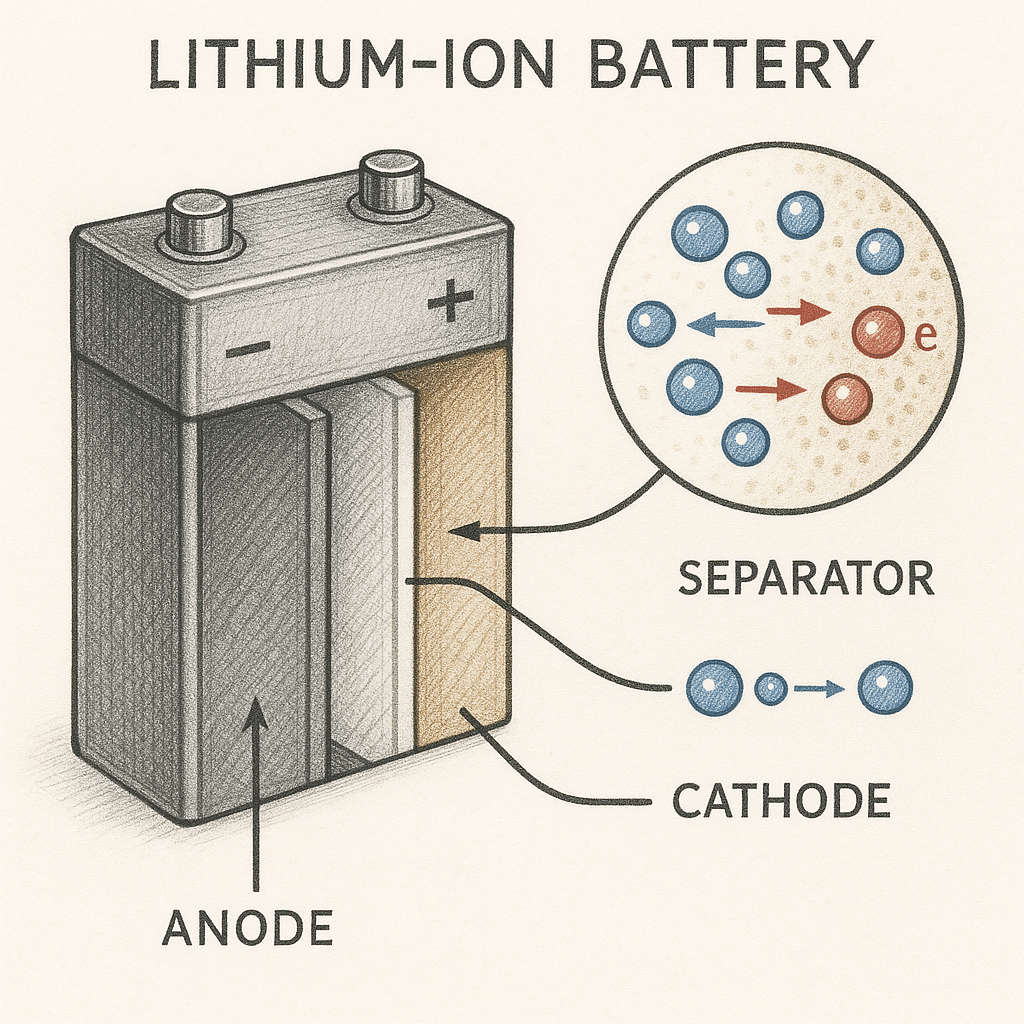

Lithium provides high energy density in batteries due to its electrochemical potential of 3.04 V and atomic weight of 6.94 g/mol. In primary batteries, lithium serves as the anode while the cathode consists of materials such as thionyl chloride (SOCl₂), sulfur dioxide (SO₂), or manganese dioxide (MnO₂). In secondary Li-ion batteries, lithium ions (Li⁺) move via an intercalation mechanism through an organic electrolyte between a graphite anode (LixC) and a metal oxide cathode such as LiCoO₂. During charging, oxidation occurs at the cathode (LiCoO₂ → Li₁₋ₓCoO₂ + xLi⁺ + xe⁻) and reduction at the anode (C + xLi⁺ + xe⁻ → LixC); during discharge, this process reverses. Tension varies between 2 and 4.1 V depending on the chemical composition.

Types and Characteristics of Lithium Batteries

Lithium batteries are divided into two main categories: primary and secondary. The following summarizes the types:

Primary Lithium Batteries

1. Lithium-Sulfur Dioxide (Li-SO₂): 2.9 V, 260-330 Wh/kg, operating range -40 to +70°C.
2. Lithium-Thionyl Chloride (Li-SOCl₂): 3.6 V, 500-700 Wh/kg, operating range -55 to +150°C.
3. Lithium-Manganese Dioxide (Li-MnO₂): 3 V, 215-225 Wh/kg, operating range -40 to +85°C.
4. Lithium-Iodine (Li-I₂): 2.8 V, 200-530 Wh/dm³, solid electrolyte with no leakage risk.
5. Lithium-Iron Disulfide (Li-FeS₂): 1.5 V, 240 Wh/kg, alternative to alkaline batteries.

Secondary Lithium Batteries

1. Lithium-Ion (Li-ion): 4.1 V theoretical voltage, 150 Wh/kg practical energy density, over 500 cycles.
2. Lithium-Polymer (Li-Po): 100-150 Wh/kg, flexible design, solid or gel electrolyte.
3. Lithium-Molybdenum Disulfide (Li-MoS₂): 2.4-1.1 V, 61 Wh/kg, 200 cycles.

Performance Comparison

• Energy Density: Li-ion offers 150 Wh/kg and 400 Wh/L, surpassing lead-acid (35 Wh/kg) and Ni-MH (75 Wh/kg). Primary Li-SOCl₂ reaches up to 700 Wh/kg.
• Power Capacity: Li-ion provides 350 W/kg, suitable for EVs; Ni-MH offers 150 W/kg and lead-acid 220 W/kg.
• Cycle Life: Li-ion achieves 20,000 cycles at 20% DOD, Ni-MH 500 cycles, and lead-acid 200 cycles.
• Temperature Range: Li-ion operates between -20 and +60°C, while Li-SOCl₂ functions from -55 to +150°C.

Advantages

Lithium batteries offer significant advantages across various applications due to their diverse types:

High Energy Density

Li-ion batteries deliver 150 Wh/kg and 400 Wh/L, providing 1.7 times the energy density of Ni-MH and 5.7 times that of lead-acid. Primary Li-SOCl₂ further enhances this advantage with 700 Wh/kg. This makes them ideal for applications such as electric vehicles and portable devices where weight and volume are critical.

Long Life and Low Self-Discharge

Li-ion batteries offer long-term use with self-discharge rates below 10% and cycle lives exceeding 500. Primary Li-I₂ provides a shelf life of up to 20 years, making it a reliable option for heart batteries. Li-SO₂ and Li-SOCl₂ maintain storage capacity for 10 to 12 years with self-discharge rates of 1-5%.

Wide Temperature Range

Li-SOCl₂ can operate under extreme conditions from -55 to +150°C, while Li-ion performs reliably between -20 and +60°C. This provides advantages in military and industrial applications.

Fast Charging and High Power Capacity

Li-ion delivers high performance in electric vehicles with a 2C charging rate and 350 W/kg power capacity. Li-SO₂ stands out for its high current capability.

Flexibility and Safety Features

Li-Po eliminates leakage risk with solid electrolytes and allows flexible shaping. Primary batteries ensure long-term reliability through hermetic sealing.

Disadvantages

Despite their advantages, lithium batteries have certain limitations and risks:

Safety Risks

High energy density increases the risk of thermal runaway. Overcharging or short circuits in Li-ion batteries can lead to explosion or fire. Li-SOCl₂ carries a risk of explosive decomposition at high currents. In 2006, Sony recalled six million Li-ion batteries due to metal particle contamination.

High Cost

• Li-ion batteries have high initial costs due to expensive raw materials such as cobalt and complex manufacturing processes. Certification costs (USD 10,000-20,000) add further burden. In primary batteries, specialized sealing and material requirements increase prices.

Capacity and Power Loss

Li-ion batteries lose capacity over cycles due to increasing internal resistance and electrode degradation. Mechanisms such as SEI layer growth and lithium plating reduce performance. Cycling at high voltages accelerates capacity loss.

Limited Temperature Performance

Li-ion batteries face lithium plating risks at low temperatures (below -20°C) and increased degradation and gas generation at high temperatures (above 60°C). Although they offer a wider December than NiMH, performance declines under extreme conditions.

Raw Material Dependence and Recycling Challenges

Raw materials such as lithium, cobalt, and graphite are sourced from limited geographic regions and recycling is costly. For example, one ton of lithium is recovered from 20 tons of used Li-ion batteries, but the purity is insufficient for second-life applications.

Safety and Design Features

Li-ion batteries employ protection mechanisms such as PTC, CID, and safety vents. Primary batteries reduce risks through hermetic sealing and low-pressure design. 18650 cells offer cooling and cost advantages, while large prismatic cells provide high current capacity. Certifications such as UN 38.3 ensure safety compliance.

Environmental Impact and Raw Material Use

Lithium: 70% is extracted from salt lakes.

Cobalt: 50% is sourced from the Democratic Republic of the Congo; it carries ethical and environmental concerns.

Graphite: Purification for Battery generates environmental pollution.

Although reserves are sufficient, rare earth elements may lead to supply issues in the future.

Future Perspectives

Although Li-ion technology approaches its theoretical limits, graphene anodes and vanadium oxide cathodes can enhance charging speed and energy density. Recycling and hydroelectric production can reduce environmental impact. Solid electrolyte systems in primary batteries will support long-life applications.

Lithium batteries have revolutionized energy storage through advantages such as high energy density and long life. However, disadvantages including safety risks, high cost, and material dependencies remain challenges for sustainability. Scientific innovation and industrial efforts hold the potential to make this technology safer and more efficient in the future.
