Logic gates are fundamental circuit elements that process input signals according to specific logical rules to produce a single output signal in digital systems. Inputs and outputs are represented by binary signals in two states (0 and 1). Therefore, logic gates operate in accordance with Boolean algebra. The functions of the gates are defined by truth tables and symbols, which show what the output will be for each possible input combination.

Logic gates are used to perform the most basic functions in the design of digital circuits. Basic operations are usually carried out by AND, OR, and NOT gates. More complex operations are provided by composite gates formed by combinations of these basic gates.

Basic Types of Logic Gates

The most commonly used logic gates in digital design are as follows:

• AND Gate: A gate that produces an output of 1 when all inputs are 1; in other cases, the output is 0.
• OR Gate: A gate that produces an output of 1 when at least one of the inputs is 1.
• NOT Gate: A gate with a single input that produces the inverse of the input value.
• NAND Gate: Produces the inverse of the AND gate. The output is 0 only when all inputs are 1; in other cases, it is 1.
• NOR Gate: The inverse of the OR gate. The output is 1 when all inputs are 0.
• XOR Gate: Produces an output of 1 when the inputs are different.
• XNOR Gate: The inverse of the XOR gate; the output is 1 when the inputs are the same.

NAND and NOR gates are called universal gates; any logical function can be implemented using only these two gates.

Implementation and Areas of Use

Logic gates are physically implemented within integrated circuits using different semiconductor technologies. Today, the most widely used technology is CMOS. CMOS gates are preferred in the production of both simple and complex digital circuits due to their advantages of low power consumption, high speed, and small size. In addition, alternative technologies such as TTL (Transistor-Transistor Logic) are also used in certain application areas.

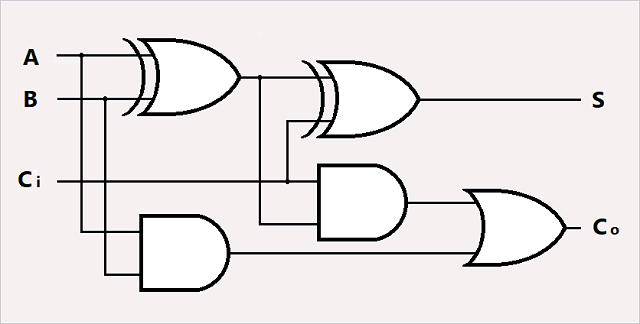

Logic gates primarily perform digital data processing tasks. Functions such as arithmetic and logical operations, counters, comparators, code converters, multiplexers, and memory units are created by arranging logic gates in an orderly manner. For example, a four-bit adder circuit consists of many AND, OR, and XOR gates connected together.

In the design process, logical functions are first defined with Boolean expressions, expressed with truth tables, and converted into gate-level circuit diagrams. Then, these circuits are either designed manually or modeled in a software environment using hardware description languages. In modern design approaches, HDL-based modeling is gaining increasing importance and is widely used in verification processes.

Logic gates are widely used not only in computer- and microcontroller-based systems but also in communication infrastructures, automation systems, sensor applications, and digital signal processing circuits. In addition, in educational environments, logic gates are the main topic of basic digital electronics courses and laboratory studies. In this way, students learn the basic principles of digital design in a practical manner and build the necessary foundation to understand more complex systems. In the video below, the basic logic of Logic Gates is explained step by step.

^{Understanding Logic Gates (Spanning Tree)}

Truth Tables and Symbols

The truth tables of the seven basic logic gates are given below:

• The truth table of a two-input AND gate is as follows.

^{A two-input AND Gate (BasicTables)}

• The truth table of a two-input OR gate is as follows.

^{A two-input OR Gate (BasicTables)}

• The truth table of a single-input NOT gate is as follows.

^{A single-input NOT Gate (BasicTables)}

• The truth table of a two-input NAND gate is as follows.

^{A two-input NAND Gate (BasicTables)}

• The truth table of a two-input NOR gate is as follows.

^{A two-input NOR Gate (BasicTables)}

• The truth table of a two-input XOR gate is as follows.

^{A two-input XOR Gate (BasicTables)}

• The truth table of a two-input XNOR gate is as follows.

^{A two-input XNOR Gate (BasicTables)}

Evaluation and Overview

Logic gates are the basic components of digital electronic systems and are used to process binary data. These gates, which perform simple operations, form the basis for more complex structures such as arithmetic processors, memory units and control circuits. Today, logic gates are mostly designed as highly integrated circuits with CMOS technology, so they can be produced in smaller sizes and with low power consumption.

In addition, thanks to hardware description languages, logic circuits can be modeled and tested in a software environment, which speeds up the design process and reduces the possibility of errors. Logic gates are used to provide data processing, storage and transmission in digital systems and are widely preferred in various application areas. In education and research, they are important tools for understanding basic electronic and digital design.
