Malaman Smart Bottom Mine

Malaman is Türkiye’s first indigenous and nationally developed smart sea mine. Developed by MKE, this system aims to enhance defense capabilities and strengthen Türkiye’s deterrence in its maritime domains. The name “Malaman” was chosen for its historical resonance within Türkiye’s defense tradition.

Development Process and Initial Tests

Under the coordination of the Presidency of Defense Industries (SSB), development efforts culminated in Malaman being first observed in a test area as of 2023. In early 2024, the first detonation test was successfully conducted at the Sinop Test Center, confirming the system’s operational effectiveness. During these tests, underwater target detection, discrimination capability, and the detonation mechanism were successfully validated.

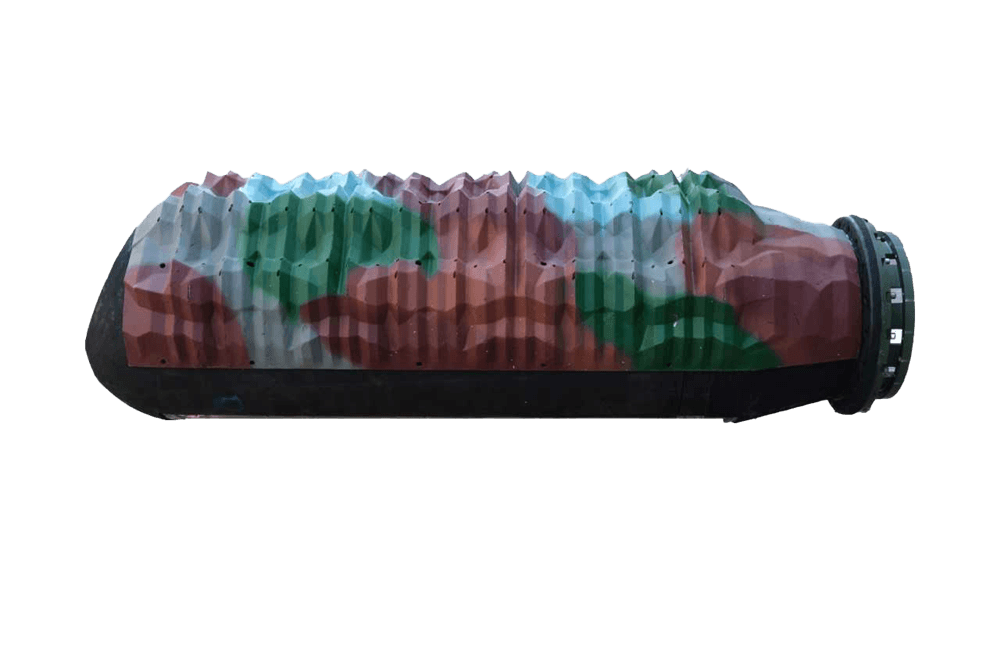

Malaman Smart Sea Mine (MKE)

Technical Features and Capabilities

Malaman distinguishes itself from conventional sea mines through its advanced sensor systems and modular design. This system responds to both underwater acoustic signatures and the target’s magnetic and pressure profiles, enabling it to distinguish between different types of maritime vessels and deliver target-specific responses. The Malaman Smart Sea Mine features the following specifications:

• Operating Depth: 5 – 100 meters
• Salinity Compatibility: 15% – 40%
• Operating Temperature: 0°C to +35°C
• Storage Temperature: -20°C to +50°C
• Weight: < 250 kg
• Dimensions: Diameter < 534 mm, Height < 1140 mm
• Mine Type: Smart, remotely commandable, selective targeting capability
• Hull: Pressure-resistant, marine-environment-compatible composite structure
• Detection Capability: Acoustic, magnetic, and pressure sensors
• Communication Feature: Remote activation or deactivation via command signal

This technical configuration transforms Malaman not only into an effective defensive asset in maritime security operations but also into an advanced tactical decision-support element. Thanks to its sophisticated sensor suite, Malaman can identify the type of target vessel, avoid engaging non-targets, and is configured for remote control.

Purpose of Use and Strategic Importance

Malaman is specifically designed for deployment in critical coastal areas, strait entrances, and harbor protection zones. Positioned as a key component of Türkiye’s Blue Homeland doctrine, the system serves as a low-cost yet highly effective defense against asymmetric threats.

Production and Export Potential

In June 2024, MKE announced that Malaman had reached readiness for serial production. This milestone is significant both for meeting the requirements of the Turkish Armed Forces and for opening export opportunities to friendly and allied nations. As one of the few smart mine systems in the world, Malaman highlights Türkiye’s advancement in maritime defense technology.
