The Messerschmitt Bf 109 is one of the most iconic and widely produced fighter aircraft of World War II. It made its first flight in 1935, and this single-engine, low-wing aircraft was used effectively by the German Air Force (Luftwaffe) in various theaters of war, particularly on the European front. Designed by the famous designer Willy Messerschmitt and his team, the Bf 109 was equipped with inline engines developed by Daimler-Benz, and became one of the most competitive aircraft of its time in terms of speed, climb rate, and maneuverability.
The different variants of the aircraft (such as Bf 109E, F, G, and K) gained a significant advantage in aerial combat due to their engine power, weapon load, and aerodynamic innovations. These variants provided a constantly evolving platform throughout the war, allowing the Bf 109 to play critical roles in both defense and offensive missions. Furthermore, some countries continued to produce or use the aircraft under license even after the war. Aviation historians regard the Bf 109 as one of the most effective examples of modern combat aviation due to its modular design, which made maintenance easier, and the innovations it brought to air superiority strategies.
Historical Development and Early Prototypes
The Messerschmitt Bf 109 was developed in the early 1930s during Germany's rearmament process. The initial model was prepared in May of that year, and a more comprehensive design prototype was completed in January 1935. The Reichsluftfahrtministerium (RLM) used the next available number in the block assigned to the BFW company, thus the project that was shaped in 1934 was named the "Bf 109."
The design process for the Bf 109 began shortly after the development contract was signed in the early months of 1934. Given the aviation trends of the time, the goal was to create a lightweight, aerodynamic airframe with high altitude performance and a powerful engine. Although new German engines were not yet fully in production, foreign engines (such as the Rolls-Royce Kestrel) were temporarily acquired to continue flight testing, preventing delays in the prototype's flight tests.
During the development of the Bf 109, Messerschmitt and his team implemented several innovations in the aircraft's fuselage design and engine integration. The low-mounted wings and the use of lightweight yet durable materials in the fuselage increased the speed and maneuverability needed for the changing combat doctrines. These design features quickly gave the Bf 109 an advantage over other fighter aircraft of the time and accelerated the ongoing prototype development.
The first prototype of the aircraft was called "Versuchsflugzeug 1" or simply V1. The V1 was finalized in May 1935 and registered under the civilian registration code D-IABI. As German engines were not yet ready, Rolls-Royce Kestrel engines were acquired for flight tests, and the engine mounts of the prototype were adapted to allow the engines to be installed in a vertical position. The V1 made its first flight at the end of May 1935 and, after approximately four months of testing, was sent to the Luftwaffe’s test center, Erprobungsstelle Rechlin.

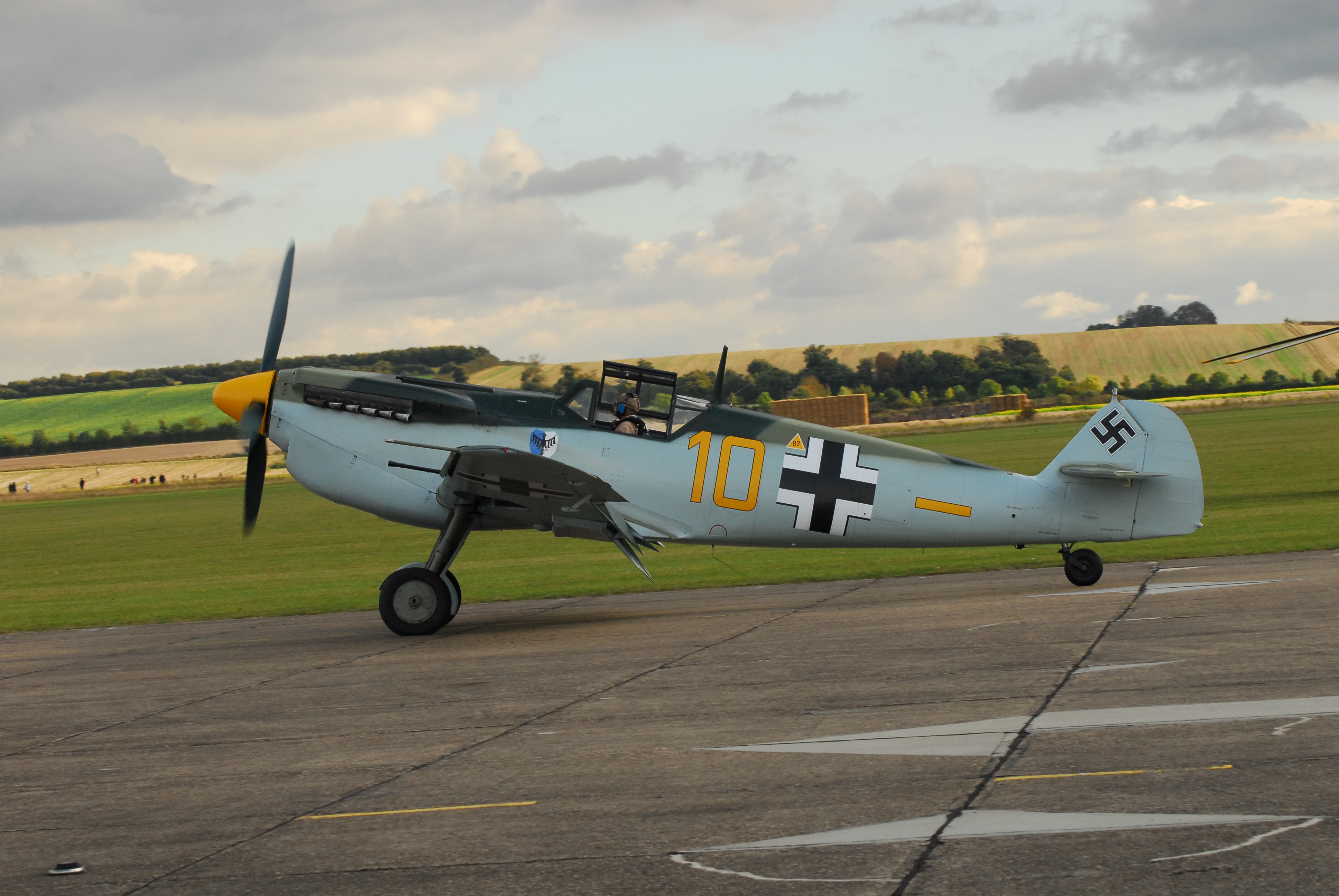

Bf 109 V1 (Photo: Ronnie Bell, flickr.com)
After the V1, the introduction of the Jumo 210 series engines at the end of 1935 gave new momentum to the Bf 109’s development process. The V2 prototype, equipped with these engines, was completed in October 1935, and shortly thereafter, designers created the V3 prototype to test the weapon systems. The V3 combined the Bf 109’s weapon load and performance suitable for combat for the first time, but due to delays in engine supply, it did not fly until mid-1936. These prototypes laid the foundation for the later E, F, G, and K series, allowing for continuous improvements of the Bf 109 throughout the course of World War II.
Thus, the Bf 109 became a symbol of German air power (Luftwaffe) and advanced aviation technology in the 1930s. With approximately 33,000 units produced, the Bf 109 became one of the most widely produced fighter aircraft models in aviation history.
Germany had been subjected to significant restrictions on military aircraft production after World War I by the Treaty of Versailles. Despite limited resources and harsh wartime conditions, the production process was remarkably efficient. In addition to the main factories in Germany, production also took place in allied countries such as Chile, Hungary, and Romania.
The development of the Bf 109 demonstrates Germany’s determination to bypass these restrictions and emphasize national independence. This reflects the political and strategic motivations behind the technical innovations of the aircraft.
Design Features
The Messerschmitt Bf 109, in addition to being one of the most recognized fighter aircraft of World War II, is also noted for its advanced design features. This single-engine, single-seat, low-wing configuration aircraft was designed from the outset to maximize speed, maneuverability, and firepower. The airframe was constructed using all-metal, stress-skin (monocoque) design, one of the most advanced technologies of the time, which balanced both durability and lightness.
Another driving force behind the aircraft's success was the use of liquid-cooled, inverted V-type Daimler-Benz engines. These engines were positioned within the airframe with aerodynamic efficiency in mind, helping to keep the nose narrow. The wings were equipped with automatic leading-edge slats and had a relatively narrow structure. These features allowed for more controlled flight even at low speeds and provided a significant advantage, particularly during takeoffs and landings.

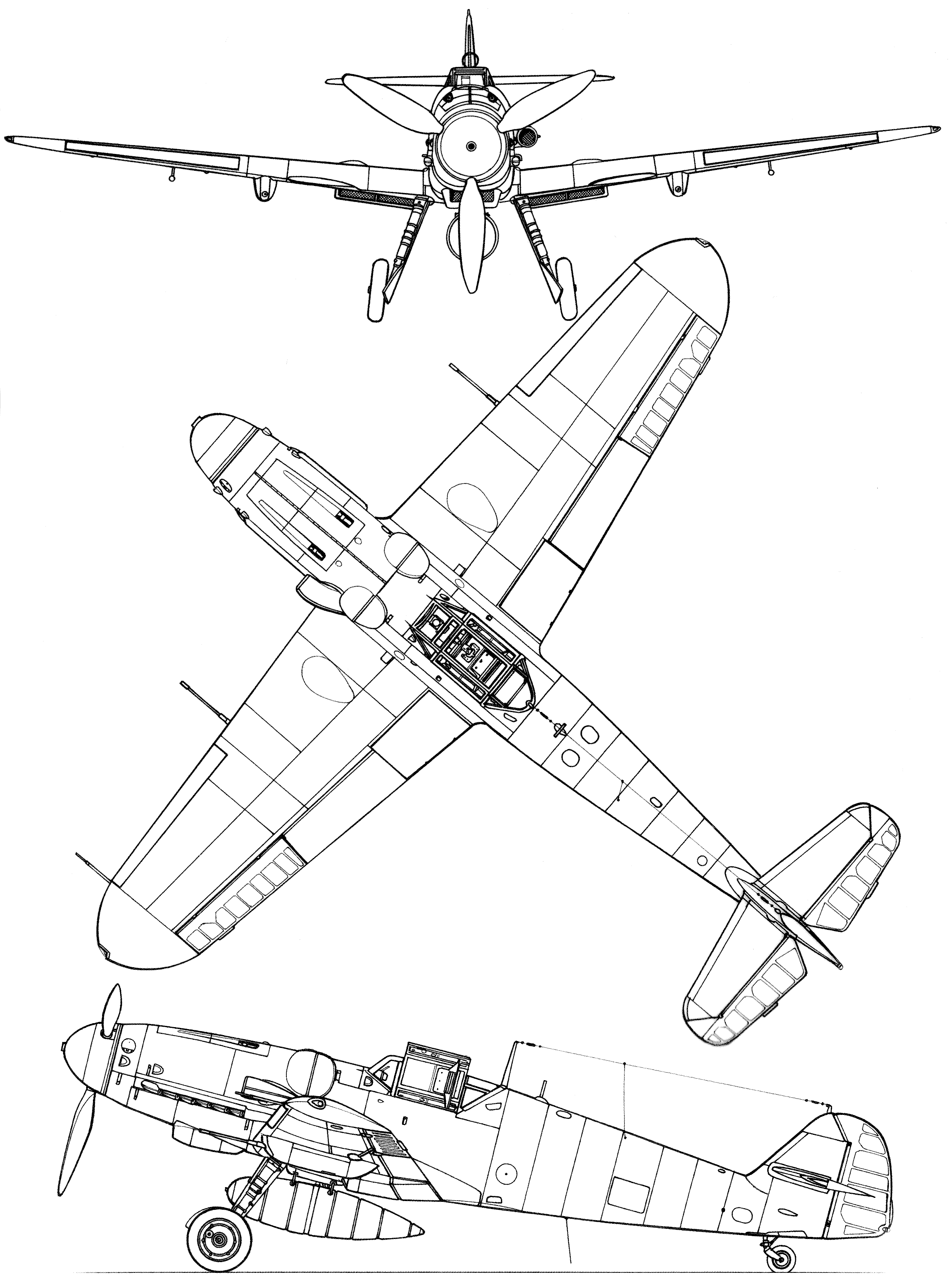

Bf-109 Technical Drawings (Photo: Blueprints)
The landing gear of the Bf 109, although considered advanced for the time, required careful handling due to the narrow track. However, the fully retractable main landing gear helped reduce drag in the air, contributing positively to the aircraft’s speed and climb performance. The cockpit was designed with the pilot’s aerodynamics in mind, though it was relatively narrow and restricted the pilot's field of view.
Structurally, the engine unit at the front of the fuselage and the nose-mounted weapon systems helped maintain the aircraft’s center of gravity as far forward as possible, which supported balance. This design approach helped maintain control at high speeds and in vertical maneuvers. Considering all these elements, the design of the Messerschmitt Bf 109 pushed the engineering limits of its time and made a significant contribution to the concept of the modern fighter aircraft.
Aircraft it Faced, Achievements, and Missions
The Bf 109 encountered many different enemy aircraft across various fronts during the war. Among these aircraft were models such as the Spitfire, P-51 Mustang, and Yak-3. The aerial conflicts with the Spitfire, especially during the Battle of Britain, were among the most important tests in comparing the technical capabilities of the two aircraft. The Bf 109’s primary missions were protecting bomber aircraft and providing close air support.

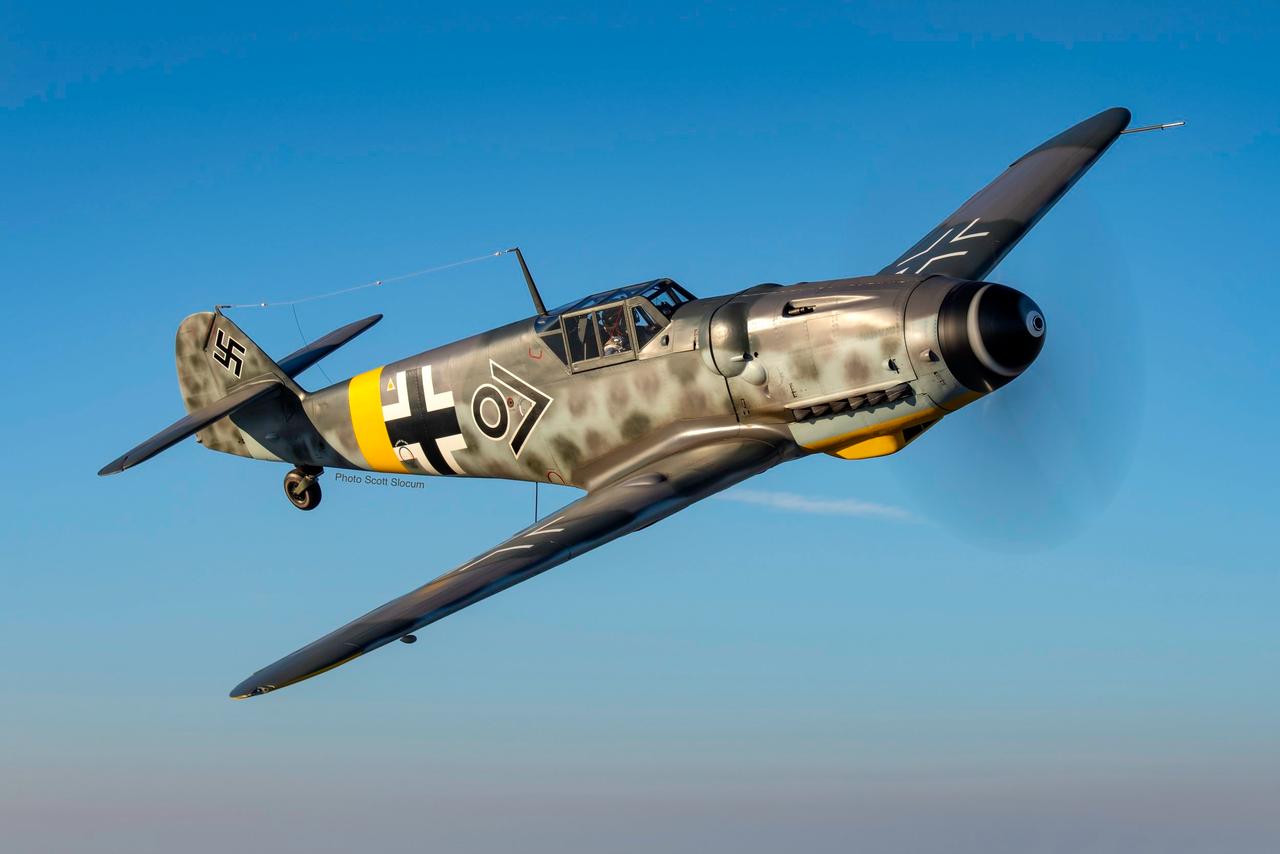

Messerschmitt Bf-109G-4 (Photo: Charlie Jackson, flickr.com)
It is estimated that the Bf 109 shot down approximately 15,000 enemy aircraft. This makes it one of the highest-scoring aircraft models in history, elevating the Bf 109 historically.
Chronic Issues
Despite its major successes, the Bf 109 was also criticized for certain weaknesses. The narrow landing gear was one of the primary design flaws, causing instability during takeoff and landing and presenting a risk to pilots. Additionally, the engine performance decreased at higher altitudes, which was particularly disadvantageous during long-range missions and against enemy aircraft operating at very high altitudes. The limited fuel capacity was another significant hindrance to operational flexibility.

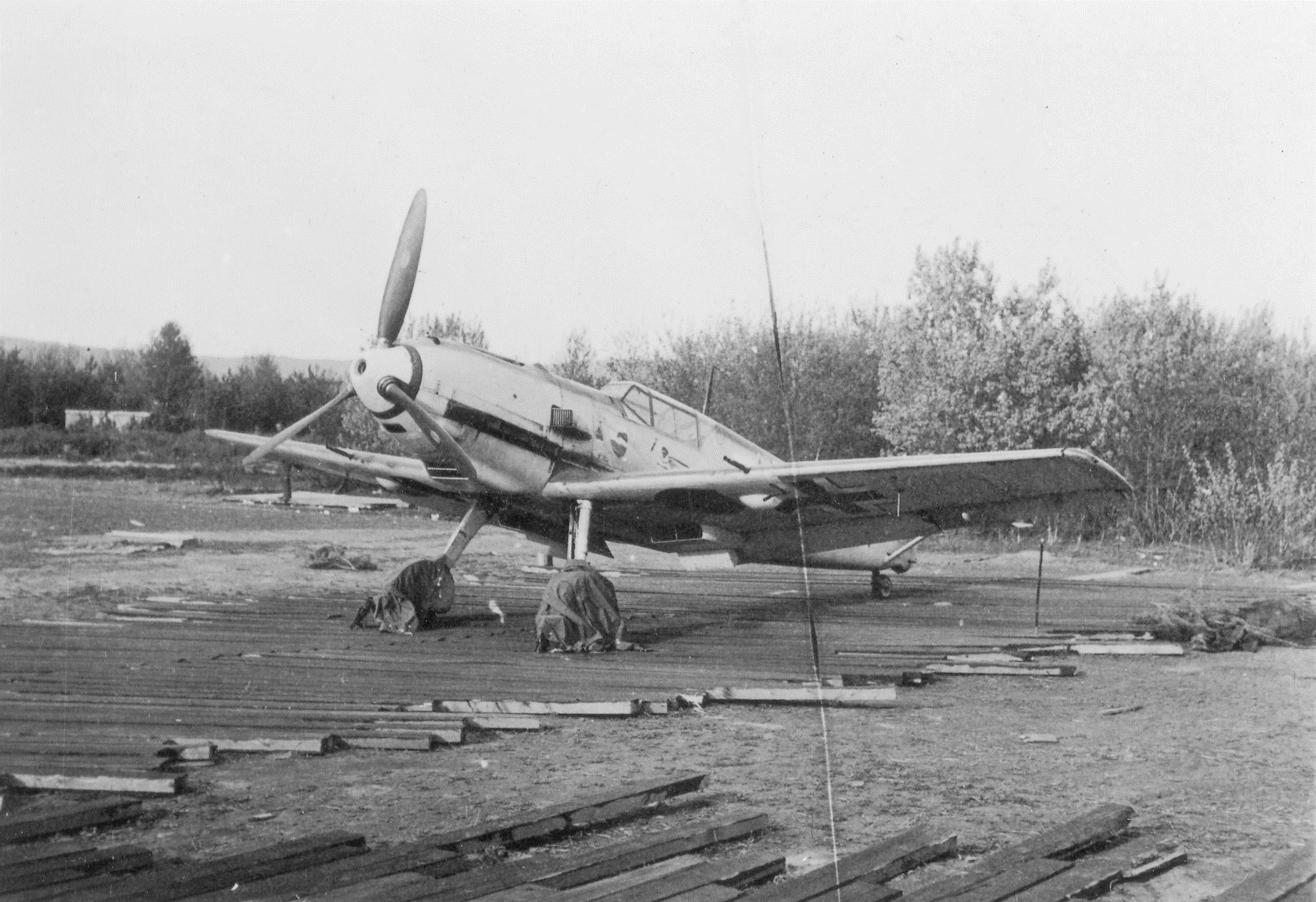

Messerschmitt Bf 109 Landing Gear (Photo: Martin Morris, flickr.com)
The cockpit was designed to be narrow, low, and small, with thick metal panels restricting the pilot’s field of view.

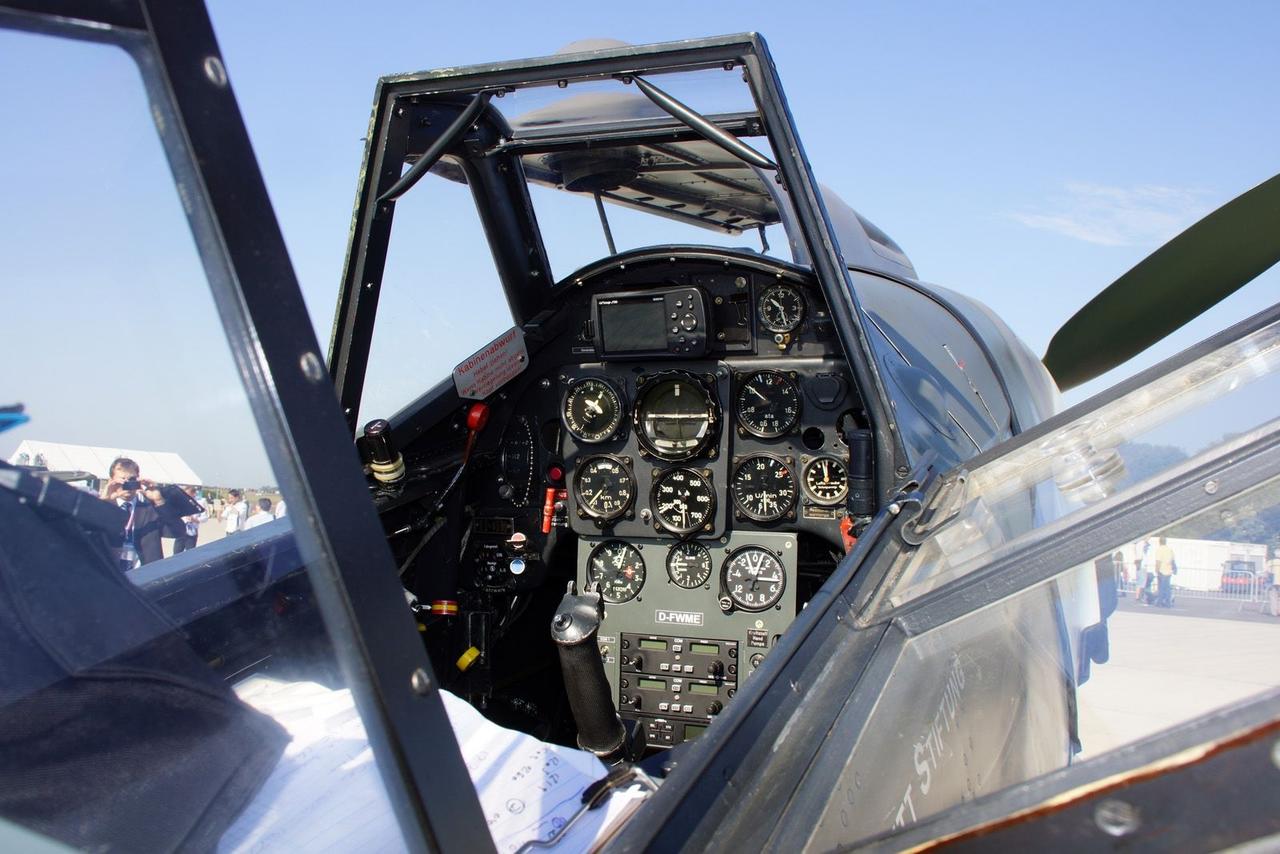

Bf-109 Cockpit (Photo: Pete Feign, quora.com)
Pilot Reviews
Bf 109 pilots generally appreciated the aircraft’s maneuverability and speed. However, they also voiced concerns about the challenges posed by the narrow cockpit design and landing gear. One of the Luftwaffe’s most successful pilots, Erich Hartmann, achieved around 350 aerial victories with the Bf 109, highlighting the aircraft's effectiveness.
Erich Hartmann (Photo: Rolf Steiner, flickr.com)
Pilot reviews revealed that the Bf 109 was more compact and efficiently designed than most of its competitors. However, for new pilots, controlling the aircraft could often be difficult.
Pilot Combat Strategies
One of the most well-known tactics used by Bf 109 pilots was the "Boom and Zoom" method. This strategy involved using the aircraft's speed advantage to dive from high altitude, strike the enemy, and then climb back to a higher altitude. The Bf 109’s vertical maneuverability and energy conservation allowed for successful implementation of this strategy.
Additionally, tactics known as "energy fighting," which relied on the aircraft's speed and potential energy, were frequently used. Although pilots encountered difficulties in dogfights, particularly against Spitfire aircraft, the Bf 109’s speed and performance in level flight helped compensate for this disadvantage.
