The Münster Astronomical Clock is a complex clock mechanism located in St. Paulus (Saint Paul) Cathedral in the city of Münster, Germany, showcasing examples of Renaissance engineering. In addition to merely indicating the time, this clock also provides multifaceted astronomical information such as tracking the positions of the Sun and Moon, reflecting calendar data (day, month, year), featuring display sections symbolizing planetary movements, and marking the Zodiac constellations. Considered one of the masterworks from the end of the Middle Ages to the beginning of the Renaissance, this clock moves counterclockwise according to our contemporary perception of clock direction.

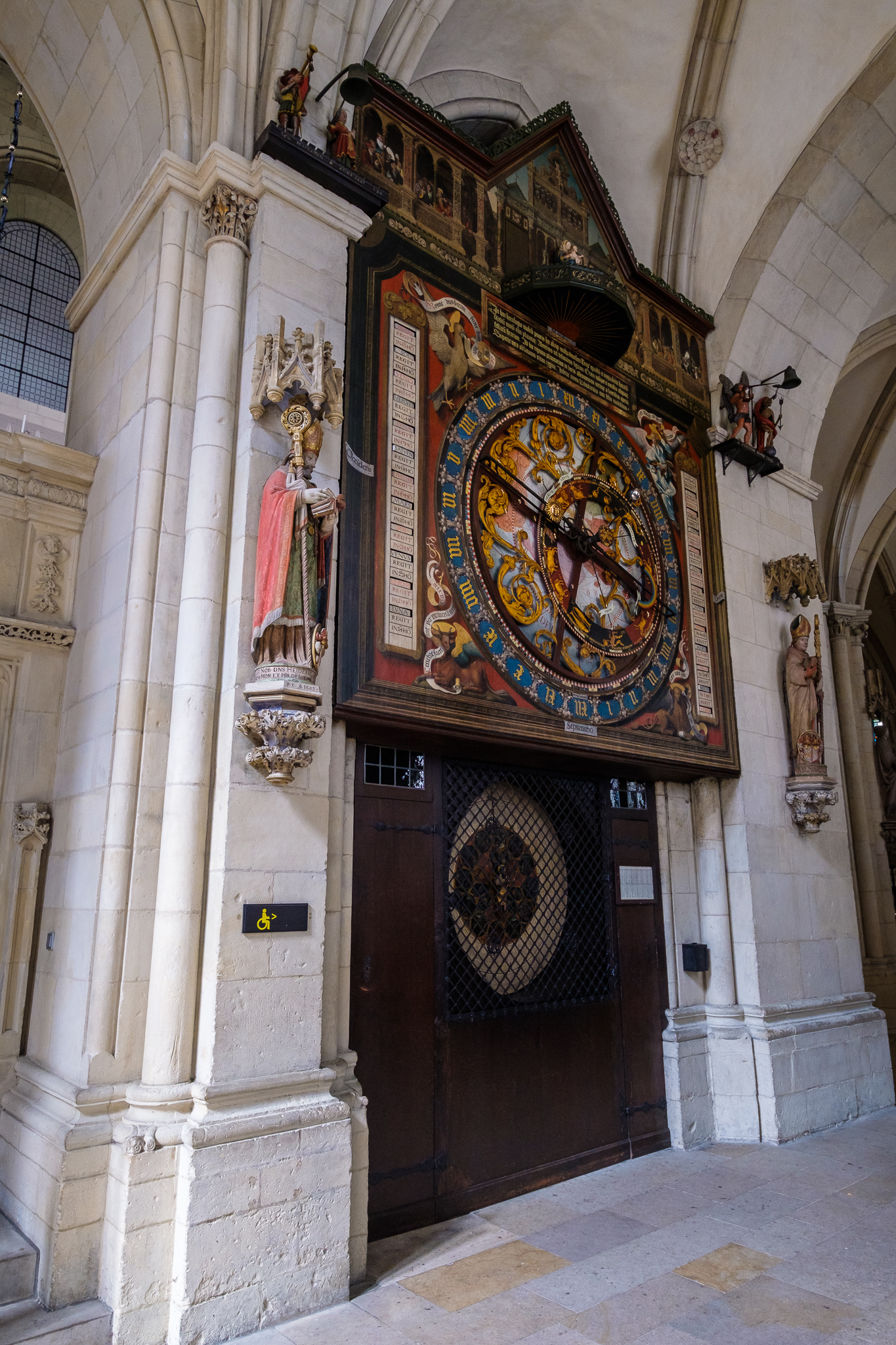

Münster Astronomical Clock (Photo: Allan Harris, flickr.com)
History
The construction story of the Münster Astronomical Clock is directly related to the technical and scientific advances that developed in 15th-century Europe. During this period, astronomy became one of the special areas of interest for churches and palaces. By the late 15th century, significant progress had been made in mechanical clock production throughout Europe, particularly in the regions of Germany and the Netherlands. These advances made it possible to calculate astronomical events in greater detail and to use complex gear systems.
The Münster Astronomical Clock took shape in the 1540s through the mechanical design of a clockmaker named Dietrich Tzwyvel and the visual arrangements of artists such as Ludger tom Ring. The designers were influenced by the representation logic of astrolabes, which conveyed the era’s knowledge of mathematics and astronomy. Thus, indicators related to both time and the cosmic order were combined within the same casing. In addition to artisans from fields such as sculpture, woodcarving, and painting, other master craftsmen contributed to the project during subsequent repairs. Therefore, rather than being the work of a single master, the clock is the product of a collective effort by a group of masters.

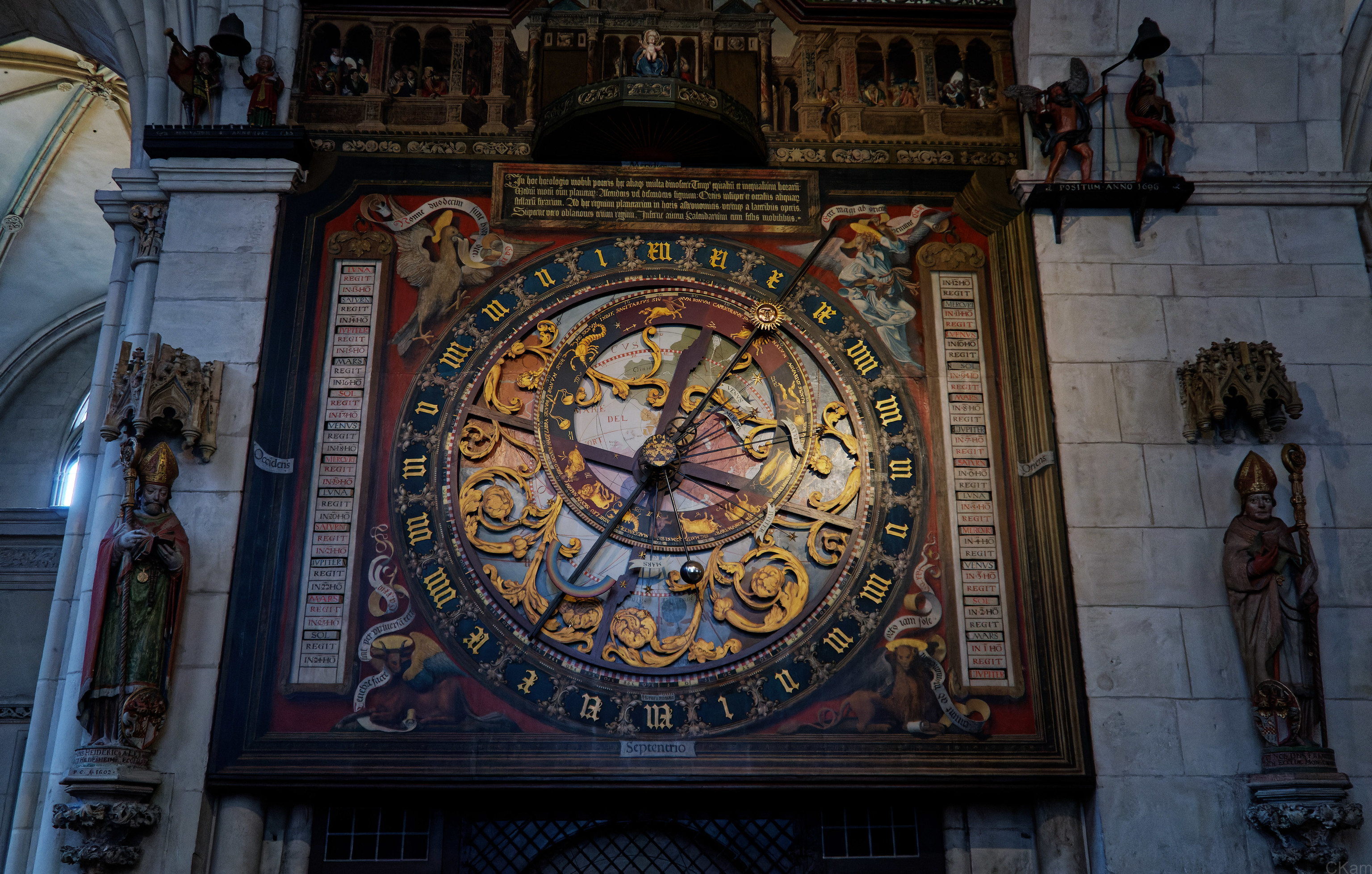

Astrolabe-referenced central part (Photo: Chris_1951, flickr.com)
Throughout history, the clock has been damaged multiple times due to wars and political turmoil. However, local artisans and clockmakers have carried out various restoration efforts to make the clock operational again. Today, while aiming to preserve the original parts, some of the mechanical components are maintained with the support of electronic systems. During this process, the piece both retains its historical character and is presented in a way that visitors can understand. This long historical journey has made the Münster Astronomical Clock one of the most important cultural heritages of Germany and Europe.
Working System
One of the main indicators of the Münster Astronomical Clock (particularly the Zodiac ring) moves in the opposite direction to what we perceive as clockwise today. This situation stems from a design preference seen in some Renaissance-era astronomical clocks, aimed at reflecting the movements of the celestial spheres within a different reference system.
In the astronomical understanding of the Middle Ages and the Renaissance, since the movements of the Sun and the planets were expressed with a geocentric model (Earth-centered), some clockmakers arranged the mechanical components to run in the “reverse” direction of a normal clock. This approach also aligns with the theoretical and religious symbolism of that time: in depictions that regard the sky as a sacred order, reversed or “retrograde” movements were sometimes used.
In the Münster Astronomical Clock, reverse movement not only creates a visual difference but also indicates that a special gear train is used to express the positions of celestial bodies in line with the dominant astronomical knowledge of the period. These gears operate through a separate system integrated into the clock’s mechanism, causing the calendar and Zodiac indicators to move in a “backward” direction accordingly.
Basic Mechanical Components
Weight and Pendulum System
Like most mechanical clocks produced from the Middle Ages to the Renaissance, the Münster Astronomical Clock derives its energy from weights. Pendulum or balance wheel-like devices ensure the regular motion of the gear wheels. This rhythmic oscillation plays a role in the consistent progression of both the clock and the astronomical indicators.
Gear Trains and Pulleys
Inside the clock, there is a series of gear trains that synchronize time measurement (seconds, minutes, hours) with the astronomical indicators (calendar, moon phases, Zodiac). The groups of wheels that drive different dials and indicators are designed with complex ratios. Each gear transmits the motion of another gear at the correct time and angle.
Astronomical Display Panels
Positions of the Sun and Moon
A separate disk or sub-dial shows the phases of the Moon (new moon, full moon, first quarter, etc.). The Sun disk acts as a symbol representing the day and serves as a supportive indicator for calendar changes.
Zodiac Ring
On the outer ring, the symbols of the Zodiac signs are placed. Designed in accordance with the astronomical knowledge of the era, this ring shows in which Zodiac region the Sun is located throughout the year
Calendar Mechanism
There is a calendar ring showing day, month, and year information. Historically, it was designed to mark important days and feasts in the Christian world as well.

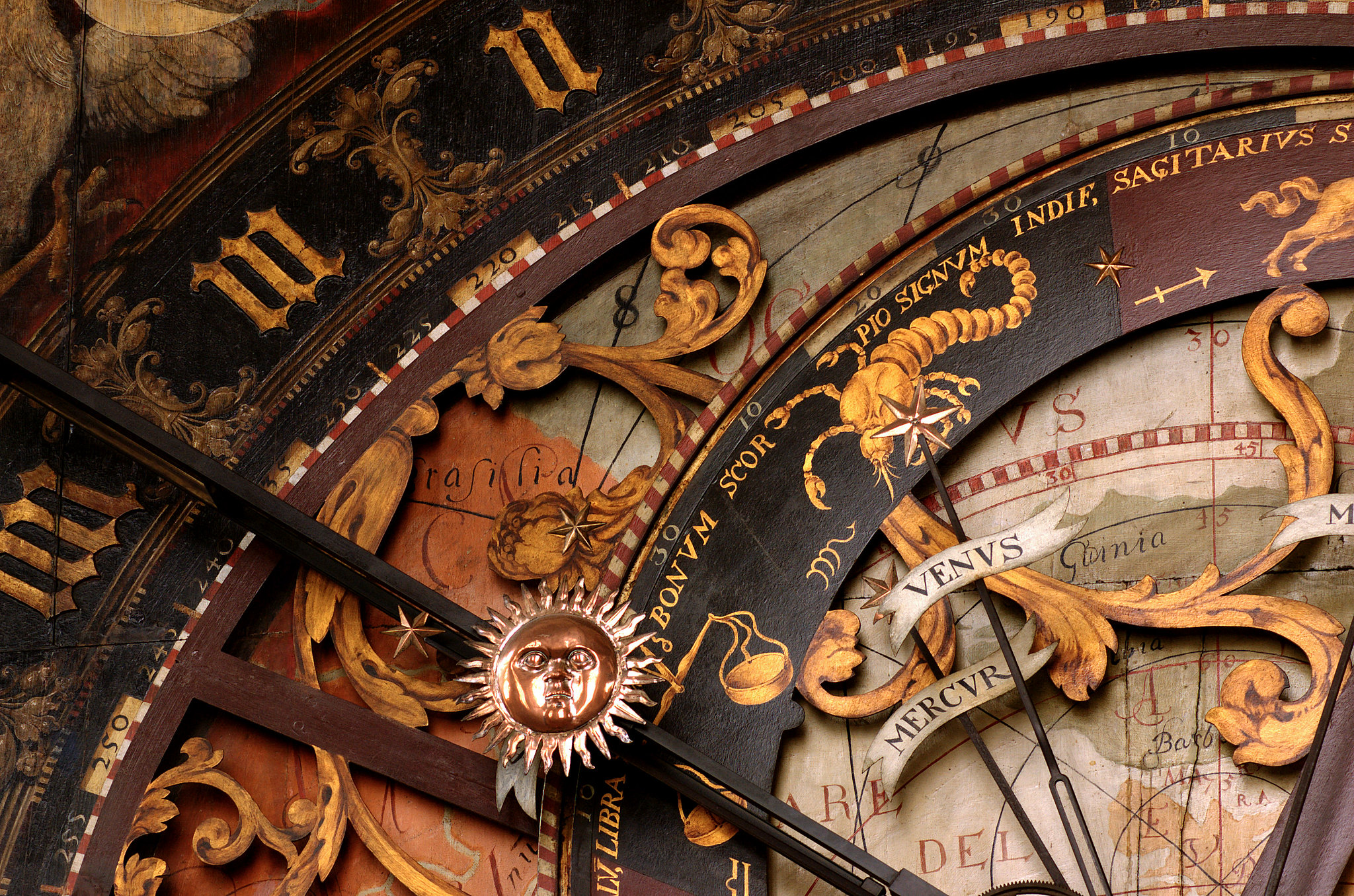

Close-up detail of the central section (Photo: Groenling, flickr.com)
Automata and Figures
As in some other medieval and Renaissance astronomical clocks, the Münster Astronomical Clock also features figures (sacred persons, angels, or symbolic characters) that move on the hour or at certain times. On the upper part of the clock, there is usually a scene featuring sacred figures or emblematic characters of the church art of the era. The realistic depiction and perspective understanding common in Renaissance art are reflected in both the facial expressions and the spatial positioning of these figures.
The automaton and figures in the upper section (Photo: Allan Harris, flickr.com)
The Kalendarium on the Lower Section
In the lower section of the Münster Astronomical Clock, there is a kalendarium surrounded by a Late Gothic-style grille. This part covers a long-term calendar extending from 1540 to 2071. Representing a total period of 532 years, this design shows the time span—often referred to by the public as the “Dionysus Era”—in which the 19-year lunar cycle and the 28-year solar cycle coincide on the same line. Thus, it is accepted that the lunar and weekly dates set in 1540 will align similarly in 2072.

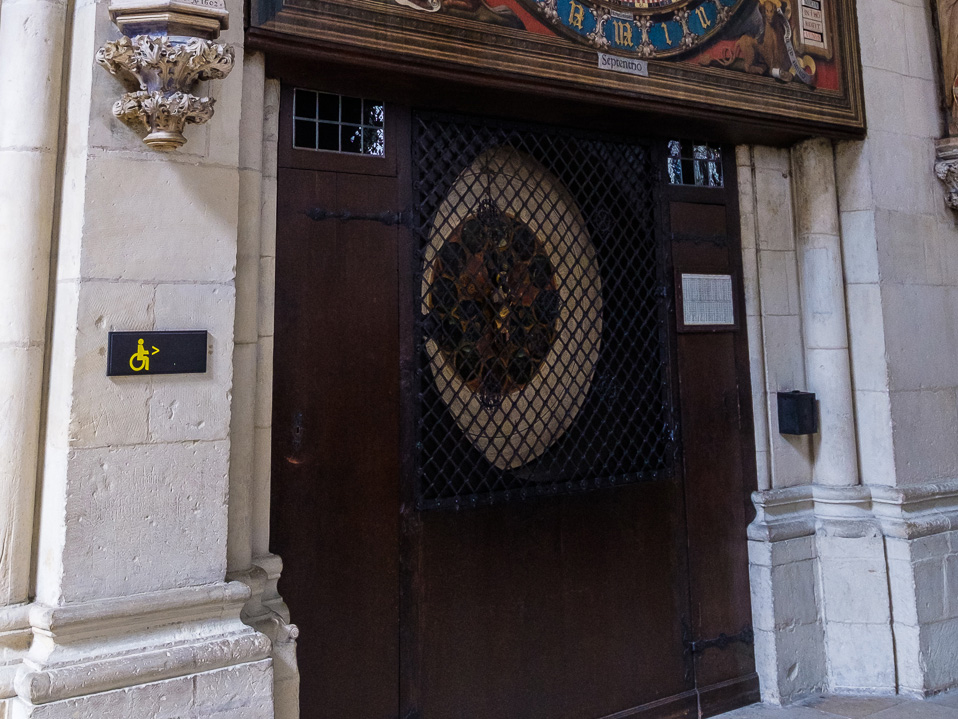

Lower section of the Münster Astronomical Clock (Photo: Allan Harris, flickr.com)
