North American B-25 Mitchell

North American B-25 Mitchell is a twin-engine medium bomber named in honor of American aviation pioneer General William "Billy" Mitchell and was used by the Allies throughout World War II. The B-25 earned a reputation as a "versatile" and "reliable" platform due to its wide range of roles, evolving from its initial level bombing mission to becoming a heavily armed ground-attack gunship. Nearly 10,000 (9,816 delivered to the USAAF) B-25s were produced by North American Aviation (NAA) by the end of the war.

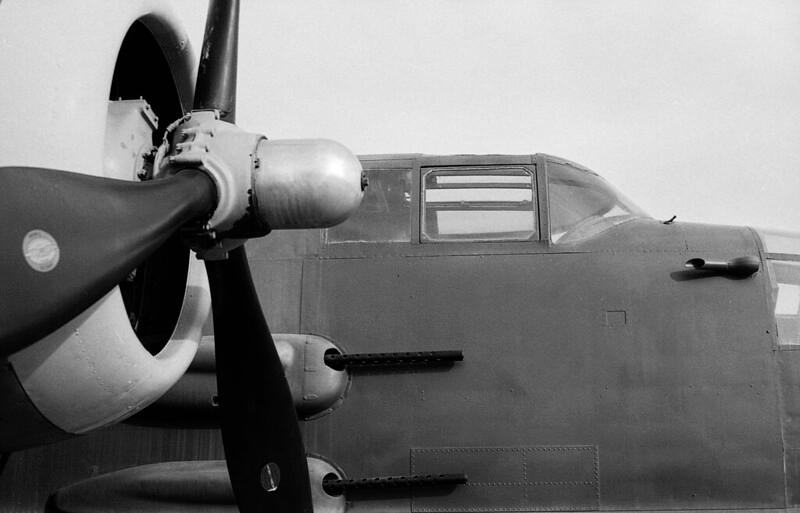

^{North American B-25 Mitchell (}Flickr⁾

The design of the B-25 began in 1939 in response to a U.S. Army Air Forces requirement for a medium bomber capable of carrying a 3,000 lb bomb load, flying at 300 mph, and achieving a range of 2,000 miles. The first prototype flew in August 1940.

• Aerodynamic Corrections: A severe roll-yaw condition observed in the initial prototype was resolved by reducing the dihedral angle (upward tilt) of the outer wing sections to zero (flattening). This modification gave the B-25 its distinctive gull wing appearance.
• Modular Construction: The aircraft’s design, based on 48 major assembly components, allowed for rapid and extensive modifications during the war without altering the fundamental aerodynamic structure.
• Production: B-25s were produced in large numbers not only at North American Aviation’s main facility in Inglewood, California, but also at the Kansas City, Kansas plant.

The B-25 is renowned for its ruggedness and high power-to-weight ratio, which enabled effective operations at low altitudes and in demanding conditions.

• Engines: Two Wright R-2600-92 Cyclone 14-cylinder radial engines, each producing 1,700 hp. In emergency situations, power could be increased to 1,850 hp.
• Dimensions: Wingspan 20.60 m (67 ft 7 in), length 16.13 m (52 ft 11 in).
• Speed and Ceiling: Maximum speed of 272 mph (438 km/h), service ceiling of 24,200 feet.
• Weight: Maximum takeoff weight approximately 35,000 lb (15,876 kg).

^{North American B-25 Mitchell (}Flickr⁾

The B-25 saw service on nearly every major theater of war, from the Pacific to the Mediterranean and the China-Burma-India theater.

• Doolittle Raid (April 1942): The B-25 Mitchell’s fame was secured by its most significant mission: 16 B-25B bombers, led by Lt. Col. James H. Doolittle, bombed Tokyo in retaliation for the Japanese attack on Pearl Harbor. These B-25Bs were modified with additional fuel tanks to nearly double their normal range and launched from the USS Hornet aircraft carrier. The raid forced Japan to alter its strategic priorities and indirectly influenced the outcome of the Battle of Midway.
• Gunship Role in the Pacific: In the Pacific and Southwest Pacific theaters, the B-25 took on a new role as a low-altitude attack aircraft against ships and ground targets. The B-25G and B-25H variants replaced the forward bomb bay with heavy armament. The B-25H model carried a 75 mm T13E1 cannon and four .50 caliber machine guns. Some field modifications of the B-25J featured up to 14 to 18 forward-firing .50 caliber machine guns.
• Skip Bombing: B-25 pilots pioneered innovative tactics such as skip bombing, where bombs were skipped across the water surface to strike the hulls of Japanese ships.
• Other Theaters: The B-25 supported the British Eighth Army in critical battles such as the Battle of El Alamein in North Africa and conducted anti-submarine patrols in the Mediterranean.

The B-25’s variants continuously enhanced its strike capabilities:

• B-25B: The first operational version used in the Doolittle Raid.
• B-25G: The first major armament modification; featured a single 75 mm cannon and two .50 caliber machine guns in the nose.
• B-25H: Retained the 75 mm cannon and added additional machine guns in blister mounts along the fuselage sides, for a total of up to 14 forward-firing weapons.
• B-25J: The most produced variant. Originally built with a transparent nose for level bombing, it was later modified in the Pacific to a solid nose configuration with eight fixed .50 caliber machine guns.
• PBJ-1: The variant operated by the U.S. Navy and Marine Corps as a patrol bomber.

Unlike some other medium bombers such as the B-26 Marauder, the B-25 survived postwar due to its durability and ease of operation. After the war, B-25s were modified for training and VIP transport roles under designations such as TB-25L and remained in service with the USAF until the late 1950s. Today, approximately 45 B-25s remain airworthy worldwide and are displayed in aviation museums.
