Radiator

Definition and General Function

A radiator is a heat exchange system that transfers heat from one medium to another, typically using a high-temperature liquid or gaseous fluid to emit heat into the surrounding environment. These systems are preferred for both industrial and individual applications common. Radiators can be operated for heating or cooling purposes; for example, they may serve to provide space heating in buildings and engine cooling in motor vehicles like. Heat is carried by a fluid circulating within the radiator and is generally transferred to the surrounding air through metal surfaces.

Historical Development

The development of radiators in their modern sense occurred in the mid-19th century. One of the earliest patents in this field was granted in 1855 to Franz San Galli, a German-born engineer living in Russia. San Galli developed a panel radiator system made of cast iron for use in central heating systems. This invention significantly improved the efficiency of indoor heating systems in regions where winter months are harsh and laid the foundation for today’s water based central heating systems.

Working Principle

Radiators operate primarily through convection and radiation. Metal bodies through which a hot fluid (usually water, antifreeze or oil) flows transfer this heat to their outer surfaces. Due to the metal’s high thermal conductivity, heat is released into the surrounding environment. As a result, the environment air warms up, rises, cools down, descends, and is reheated, creating a natural circulation. This cycle ensures a uniform distribution of heat.

In automobiles, radiators dissipate excess heat generated by the engine. The coolant, after absorbing heat from the engine block, reaches the radiator where it is cooled by a fan and then recirculated back into the engine. This process prevents the engine from overheating.

Types of Radiators

Water Radiators

This type of radiator, used in central heating systems, operates by circulating hot water in a closed loop. Water heated in a boiler is transported through pipes to the radiators, where it releases heat into the surroundings. The cooled water then returns to the boiler.

Oil-Filled Radiators

These radiators operate using Electricity energy, heating a special heat-resistant oil inside them to emit warmth into the environment. The oil does not circulate while the device is turned off; therefore, the system operates silently and can remain long duration warm for extended periods.

Automotive Radiators

Used in internal combustion engines to disperse the heat generated during operation. The coolant, typically a mixture of water and antifreeze, absorbs heat as it flows around the engine and is directed to the radiator. Here, the heat is dissipated into the air.

Electric Radiators

These operate by heating wires through electrical resistance, which then come into contact with a metal surface. The heated surface warms the surrounding air. Thermostat-controlled models offer energy savings.

Aluminum or Panel Radiators

These are modern panel systems made from lightweight aluminum with high thermal conductivity. Due to their high convection efficiency, they provide fast heating.

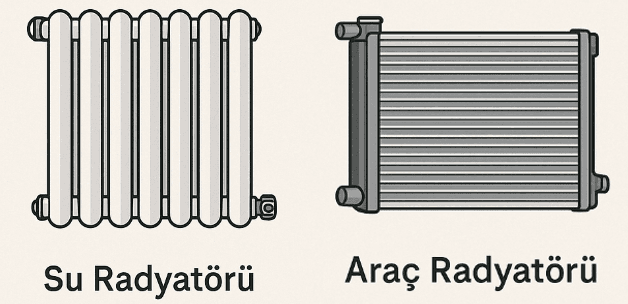

Water Radiator and Automotive Radiator (Source: AI-Generated Image)

Material Properties

Radiators are manufactured from metals with high thermal conductivity and resistance to environmental factors. The most common materials include:

• Cast iron: Used in traditional systems; it conducts heat slowly but retains warmth for extended periods.
• Aluminum: Stands out for its light weight and high heat transfer capability. It is especially preferred in modern residential systems.
• Steel: Considered a balanced choice for both aesthetics and durability.

Applications

• Residential and commercial buildings: Heat distribution in central heating systems
• Automobiles: Regulation of engine temperature
• Industrial facilities: Thermal control of machinery and equipment
• Electronic systems: Cooling of heat-generating components
• Medical and laboratory environments: Devices requiring precise temperature control

Advantages and Limitations

Advantages:

• Quiet and vibration-free operation
• Low maintenance requirements
• Easy integration with passive systems
• Energy efficiency (particularly in water-based systems)

Limitations:

• May be insufficient as a sole heat source in large spaces
• Heat distribution can be slow
• Requires wall space for installation
• In areas with poor air circulation, heat distribution may be uneven
