Satürn V

Saturn V, developed by the United States space agency NASA, was a three-stage launch vehicle used in the Apollo and Skylab programs. It was operational between 1967 and 1973 and was launched a total of 13 times.

The rocket was developed to enable manned lunar missions and remains one of the most powerful rockets ever used in human spaceflight history. In terms of rocket design, launch capacity, missions, and technical infrastructure, it stands as a significant example in the development of 20th-century space technology.

The Apollo 11 Saturn V Rocket Projected on the Washington Monument. (NASA)

Design and Development Process

The development of Saturn V was carried out by engineers at the Marshall Space Flight Center under the leadership of Wernher von Braun. The project began in the early 1960s, and the first test flight took place in 1967. The rocket was designed with three stages to increase payload capacity, provide the thrust necessary for lunar landing and return, and prioritize crewed flight safety.

• First Stage (S-IC): This stage generates the primary thrust required to overcome gravity and exit the atmosphere. It is powered by five F-1 engines.
• Second Stage (S-II): This stage carries the rocket to higher altitudes. It operates with five J-2 liquid hydrogen engines.
• Third Stage (S-IVB): The final stage is used to reach orbit and create the transfer trajectory to the Moon. It is powered by a single J-2 engine.

Technical Specifications

• Height: 110.6 meters
• Weight (at launch): ~2,970 tons
• Payload Capacity (LEO): 140,000 kg
• Payload Capacity (Lunar orbit): 48,600 kg
• Fuel Type: RP-1
• Engine Types: F-1 and J-2 liquid-fueled engines

Mission History

A total of 13 launches were conducted. Of these, 12 were completed successfully, and 1 (Apollo 6) experienced partial failure. Notable missions include:

• Apollo 11 (1969): First crewed Moon landing. Neil Armstrong and Buzz Aldrin landed on the Moon, while Michael Collins remained in lunar orbit.
• Apollo 13 (1970): The Moon landing was aborted due to an oxygen tank explosion, but the crew returned safely to Earth.
• Skylab (1973): Saturn V was used to launch Skylab, America's first space station.

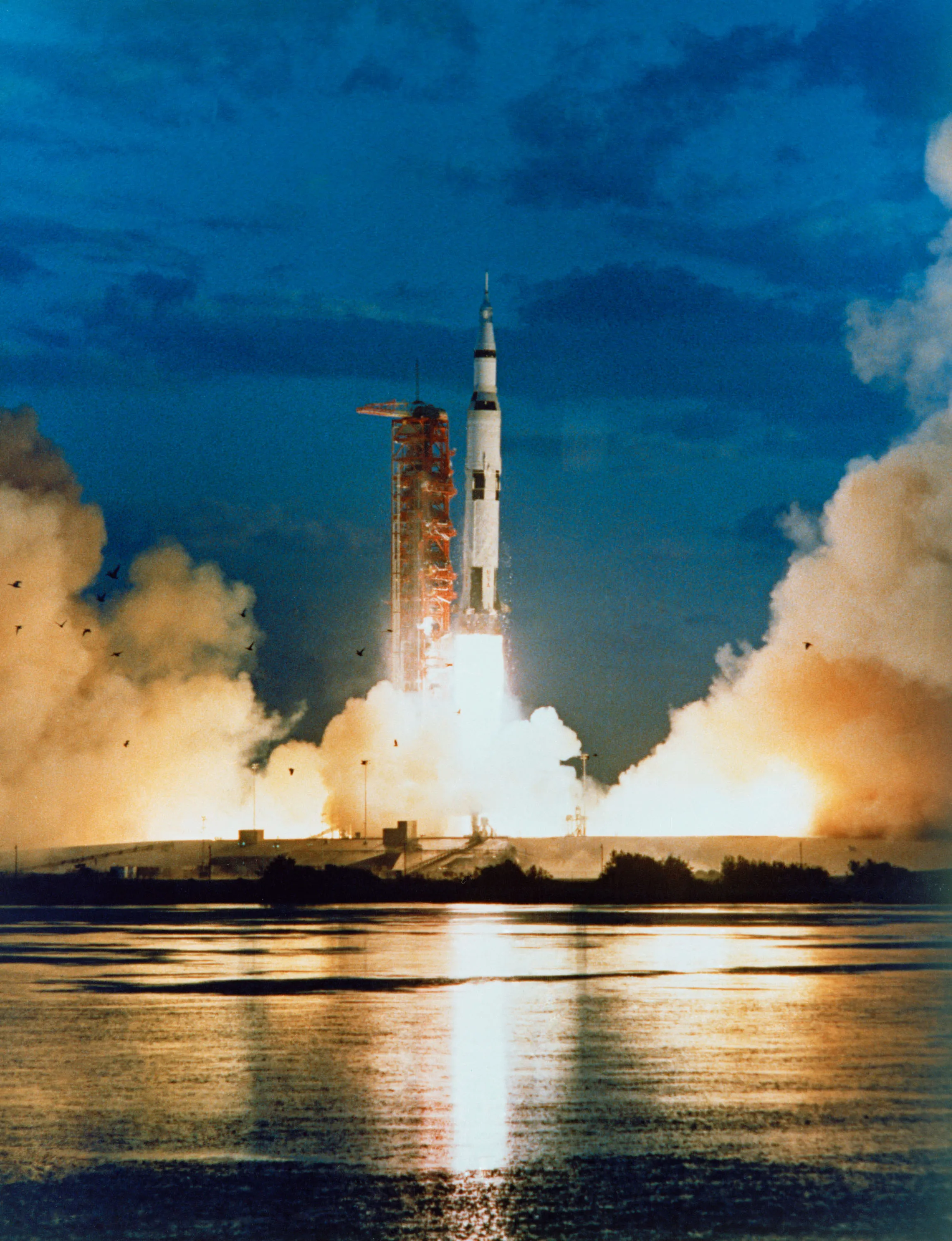

Apollo 4 Launch with the First Saturn V Moon Rocket. (NASA)

Structural Features and Material Technology

Saturn V was built using lightweight yet durable materials such as aluminum alloys, stainless steel, and titanium. Each stage consisted of liquid fuel tanks and engine systems. The rocket had detachable stages, each separated after completing its function to reduce weight. The thrust generated during launch was approximately 34,000 kN.

S-1C Booster for Apollo 11 Saturn V Awaiting Inside the Vehicle Assembly Building. (NASA)

Applications and Limitations

Saturn V was only used in the Apollo program and Skylab missions. Its design was optimized solely for lunar missions, making it highly capable of carrying heavy loads beyond Earth orbit. However, due to its high cost (approximately $185 million per launch at the time), it lacked long-term sustainability.

Program Termination and Legacy

The Saturn V program ended after its final mission in 1973, primarily due to costs and changing priorities in space programs. Work began on smaller and more economical launch systems (e.g., the Space Shuttle) to replace it. The technological legacy of Saturn V served as a foundational reference in NASA’s later projects (e.g., Artemis program and SLS – Space Launch System).

Saturn V stands out in the history of crewed spaceflight for its technical capacity and payload capability. Evaluated from a non-praiseful, technical perspective, it can be described as a high-capacity engineering product developed in line with the objectives of a specific era. Although its operational life was limited, it contains technological elements that underlie modern heavy-lift launch systems.
