Spatial filtering is a widely used method in image processing and signal processing. This technical aims to modify specific characteristics of an image by directly manipulating its pixels. Noise reduction, edge perception, sharpening, or blurring like operations can be performed using spatial filtering.

Spatial Filtering

Spatial filtering is a technique used in digital image processing and signal processing to alter or enhance specific characteristics of an image by directly manipulating its pixel values. This method operates on the spatial domain data of an image; that is, it performs operations on pixel coordinates and intensity values. Spatial filtering differs from frequency domain filtering techniques (such as those based on Fourier transforms) because it uses the raw pixel data of the image without any transformation.

Basic Principle

The foundation of spatial filtering lies in applying a matrix called a "kernel" or "mask" to each pixel of the image. This kernel generates a new output value by combining the value of a central pixel with the values of its neighboring pixels in a weighted manner. The operation is applied across the entire image using a sliding window technique. This process, mathematically termed "convolution," forms the fundamental building of spatial filtering.

When an image is represented as f(x,y) and the kernel as h(m,n), the output image g(x,y) resulting from spatial filtering is calculated using the following formula:

g(x,y)=m=−a∑am=−b∑bh(m,n).f(x−m,y−n)

f(x,y): Pixel intensity of the original image
h(m,n): Weight coefficients of the kernel
a and b: Half-widths that define the kernel size (e.g., for a 3x3 kernel, a = b = 1)
g(x,y): Pixel value of the filtered output image.

Processing Steps

1- Kernel Selection: For example, a 3x3 averaging filter is used.

h=91<svg xmlns="http://www.w3.org/2000/svg" width="0.875em" height="3.600em" viewBox="0 0 875 3600"><path d="M863,9c0,-2,-2,-5,-6,-9c0,0,-17,0,-17,0c-12.7,0,-19.3,0.3,-20,1 c-5.3,5.3,-10.3,11,-15,17c-242.7,294.7,-395.3,682,-458,1162c-21.3,163.3,-33.3,349, -36,557 l0,84c0.2,6,0,26,0,60c2,159.3,10,310.7,24,454c53.3,528,210, 949.7,470,1265c4.7,6,9.7,11.7,15,17c0.7,0.7,7,1,19,1c0,0,18,0,18,0c4,-4,6,-7,6,-9 c0,-2.7,-3.3,-8.7,-10,-18c-135.3,-192.7,-235.5,-414.3,-300.5,-665c-65,-250.7,-102.5, -544.7,-112.5,-882c-2,-104,-3,-167,-3,-189 l0,-92c0,-162.7,5.7,-314,17,-454c20.7,-272,63.7,-513,129,-723c65.3, -210,155.3,-396.3,270,-559c6.7,-9.3,10,-15.3,10,-18z"/></svg>111111111<svg xmlns="http://www.w3.org/2000/svg" width="0.875em" height="3.600em" viewBox="0 0 875 3600"><path d="M76,0c-16.7,0,-25,3,-25,9c0,2,2,6.3,6,13c21.3,28.7,42.3,60.3, 63,95c96.7,156.7,172.8,332.5,228.5,527.5c55.7,195,92.8,416.5,111.5,664.5 c11.3,139.3,17,290.7,17,454c0,28,1.7,43,3.3,45l0,9 c-3,4,-3.3,16.7,-3.3,38c0,162,-5.7,313.7,-17,455c-18.7,248,-55.8,469.3,-111.5,664 c-55.7,194.7,-131.8,370.3,-228.5,527c-20.7,34.7,-41.7,66.3,-63,95c-2,3.3,-4,7,-6,11 c0,7.3,5.7,11,17,11c0,0,11,0,11,0c9.3,0,14.3,-0.3,15,-1c5.3,-5.3,10.3,-11,15,-17 c242.7,-294.7,395.3,-681.7,458,-1161c21.3,-164.7,33.3,-350.7,36,-558 l0,-144c-2,-159.3,-10,-310.7,-24,-454c-53.3,-528,-210,-949.7, -470,-1265c-4.7,-6,-9.7,-11.7,-15,-17c-0.7,-0.7,-6.7,-1,-18,-1z"/></svg>

4- Result: This process is repeated for every pixel in the image to produce a filtered output image.

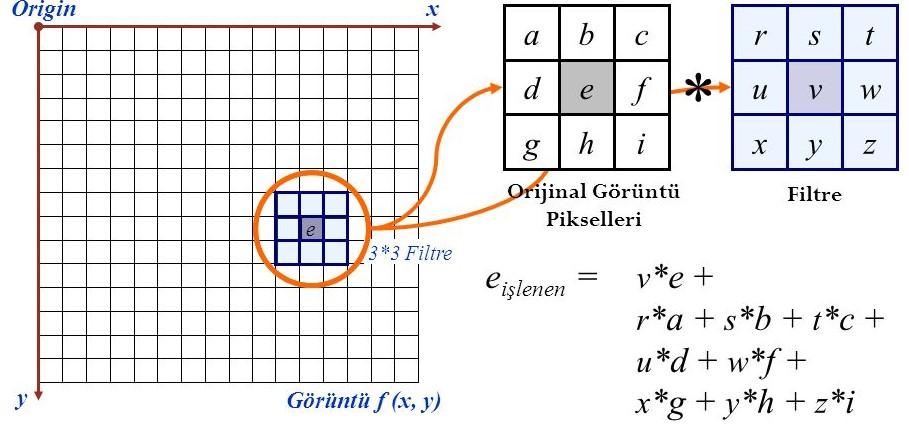

Pixel processing between the original and filtered image (Credit: Gonca İnönü)

Purpose of Spatial Filtering

Spatial filtering can be used for various purposes:

Noise Reduction: Removing random distortions in the image (e.g., salt and pepper noise).
Edge Detection: Highlighting the boundaries of objects in the image.
Blurring: Smoothing details to achieve a more homogeneous image.
Sharpening: Enhancing details and contrast in the image.

Types of Spatial Filtering

Spatial filtering types are broadly divided into two main categories: low-pass filters and high-pass filters. Based on application method, they are further classified into linear filters and non-linear filters.

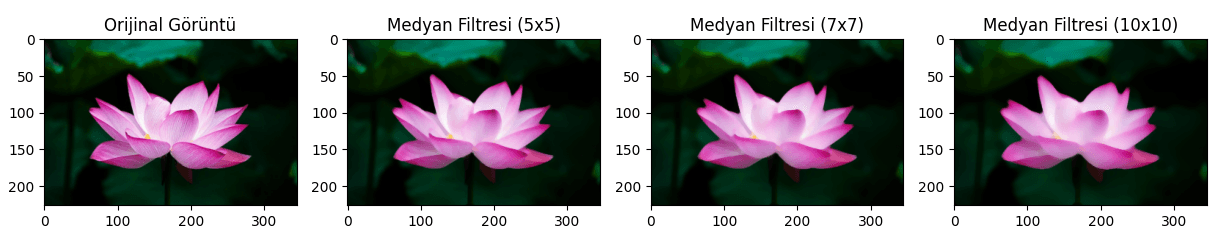

Low-Pass Filters

Low-pass filters preserve low-frequency components in an image while suppressing high-frequency components (such as abrupt changes and sharp edges). These filters are commonly used to smooth images and reduce noise.

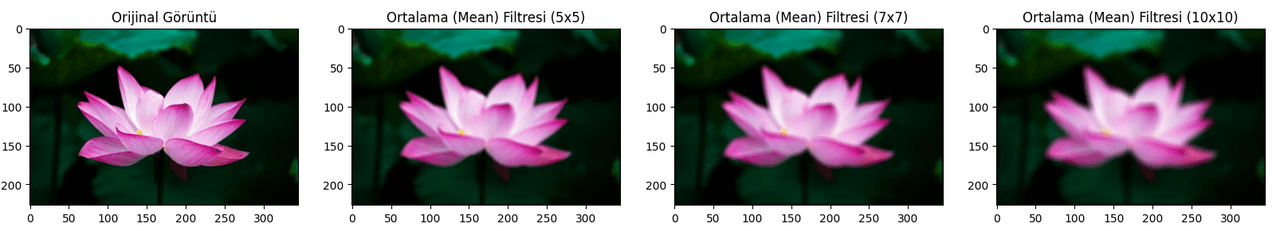

Mean Filter

The Mean Filter creates a kernel around each pixel, calculates the average of all pixel values within the kernel region, and assigns this average as the new value of the pixel in the filtered image.
