A stackable switch is a network infrastructure component that enables multiple network switches to be interconnected and operate as a single logical device. This configuration allows administrators to centrally configure and manage all switches through a single interface. Although stackable switches are physically connected to one another, they function as a single device at the operating system level. This feature simplifies network management and significantly facilitates scalability.

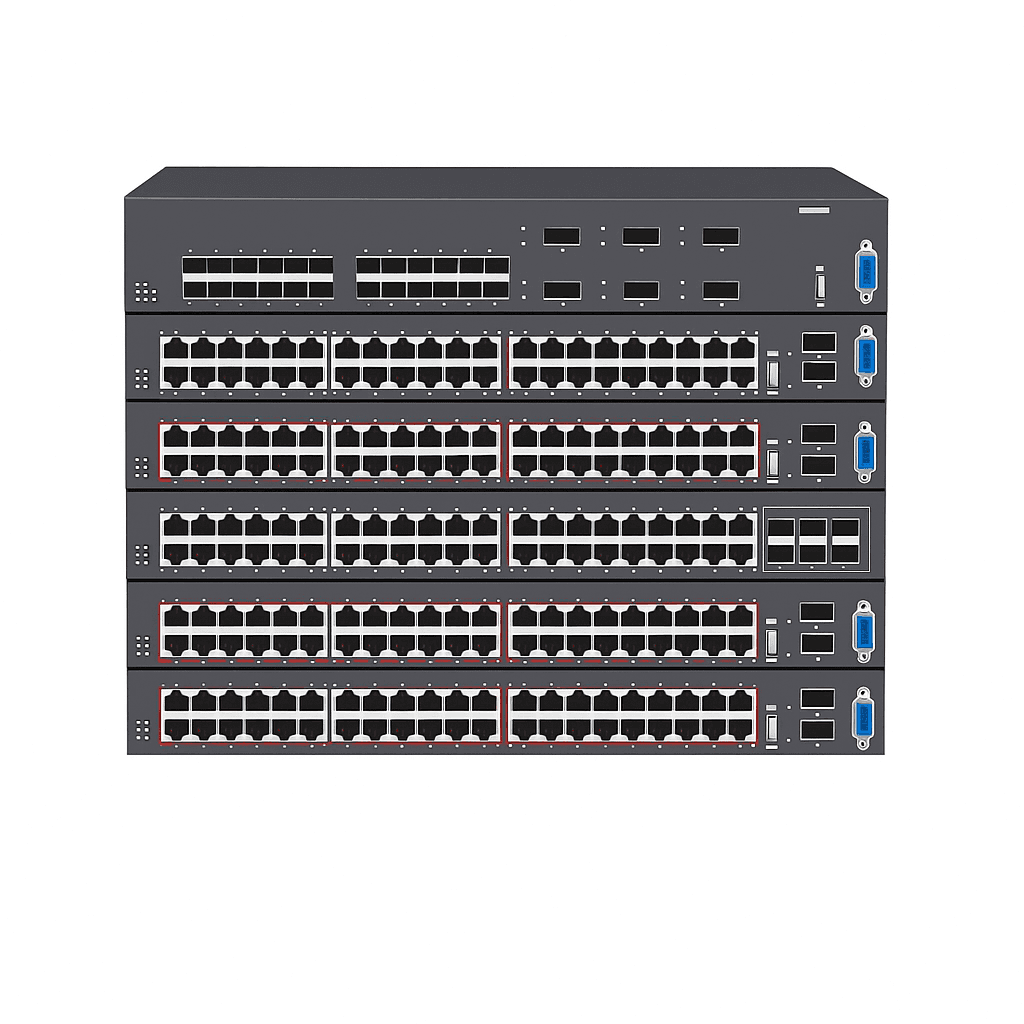

^{Representative image of a stackable switch (Generated by Artificial Intelligence)}

Concept of Stackability

Stacking is not merely limited to placing devices on top of each other or connecting them physically. True stacking requires a dedicated architecture that enables data transmission between devices. The stacking link is typically a high-bandwidth dedicated data path that allows each device in the stack to participate efficiently in data traffic. These links facilitate data forwarding among all devices in the stack without creating traffic congestion within the network. Some stacking systems employ redundant links to enhance fault tolerance, allowing data to continue being forwarded through an alternate path if one link fails.

Technical Features and Advantages

Stackable switches offer a range of technical benefits, foremost among them being the ease of centralized management. All devices in the stack are managed through a single IP address, which simplifies configuration and monitoring in large networks. Other key advantages include:

• High-Performance Connectivity: Stack ports can support connections at speeds of 10 Gbps, 40 Gbps, or even 100 Gbps on certain models. These high-speed backbone connections ensure smooth traffic flow between devices.
• Redundancy and Fault Tolerance: The stack architecture is resistant to single points of failure. If a switch or connection fails, traffic is automatically rerouted through another path.
• Modular Scalability: As network demands grow, new switches can be added to the stack. This process typically involves plugging in the new device and connecting the stacking cable, with the system automatically detecting the new hardware.
• Investment Protection: Stackable switches can be deployed in small-scale networks and expanded as needed. Starting with a few devices and adding more over time allows for cost-effective scalability.

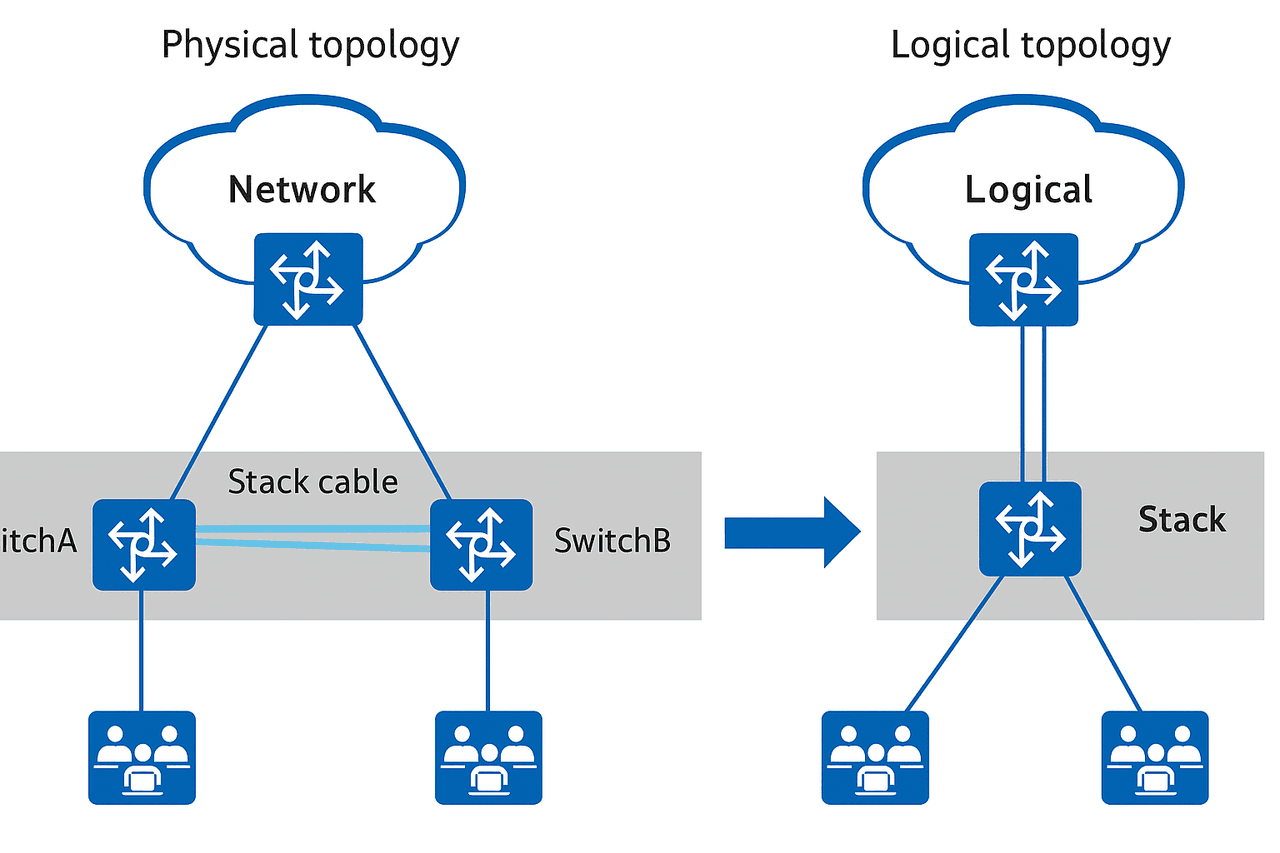

^{Visual representation of stackable switch infrastructure (Generated by Artificial Intelligence)}

Areas of Application

Stackable switches are used across a wide range of enterprise environments due to their scalability and ease of management. While they offer cost-effective solutions for small and medium-sized businesses, they can also be deployed in large organizations within multi-layer network topologies, including access, distribution, and even core layers. In particular, high-speed stacking links play a critical role in network performance in data centers and campus networks, where backbone traffic is typically dense.

Stacking Architecture Types

Different manufacturers implement stacking functionality using a variety of technologies. Some require proprietary stacking modules and cables, while others support stacking over standard Ethernet ports or SFP/SFP+ connections. Stacking architectures are generally classified into three categories:

• Linear Stack (Chain): Switches are connected in a straight line, with the connection terminating at the last device.
• Ring: In addition to the linear structure, the last device is connected back to the first, providing redundancy.
• Full Mesh: All devices are interconnected, offering maximum reliability and bandwidth.

Depending on the manufacturer, some stacking architectures only support switches of the same model or series, while more advanced systems allow different models to operate within the same stack.

Key Considerations for Stackable Switches

When selecting these devices, the following technical criteria should be considered:

• Stack Capacity: The maximum number of switches that can be included in a stack (e.g., 4, 8, or 12 devices).
• Stack Bandwidth: The inter-device data bus speed (e.g., 80 Gbps, 160 Gbps).
• Management Model: Centralized or distributed management architecture.
• Application Compatibility: Whether all switches in the stack support the same software and protocols.
• Redundant Master Support: The ability of the system to automatically assign a new master switch if the current master fails.

Stackable switches play a critical role in both small and large-scale network infrastructures. They offer a scalable solution that supports high bandwidth, provides fault tolerance, and allows for centralized management. These features make them an ideal choice for organizations looking to minimize initial investment costs while remaining prepared for future network expansion. The stackable architecture stands out as a sustainable solution for today’s dynamic and rapidly growing network environments.
