The Suzuki GSX-S1000 is a road motorcycle developed by the Japanese manufacturer Suzuki, positioned within the Naked category. Initially introduced in 2015 and significantly updated in 2021, the GSX-S1000 combines an engine block derived from Suzuki’s flagship supersport model, the GSX-R1000, with a more upright riding position and a chassis adapted for road use. The model occupies a place in the sport naked segment, characterized by its design, engine, and electronic systems.

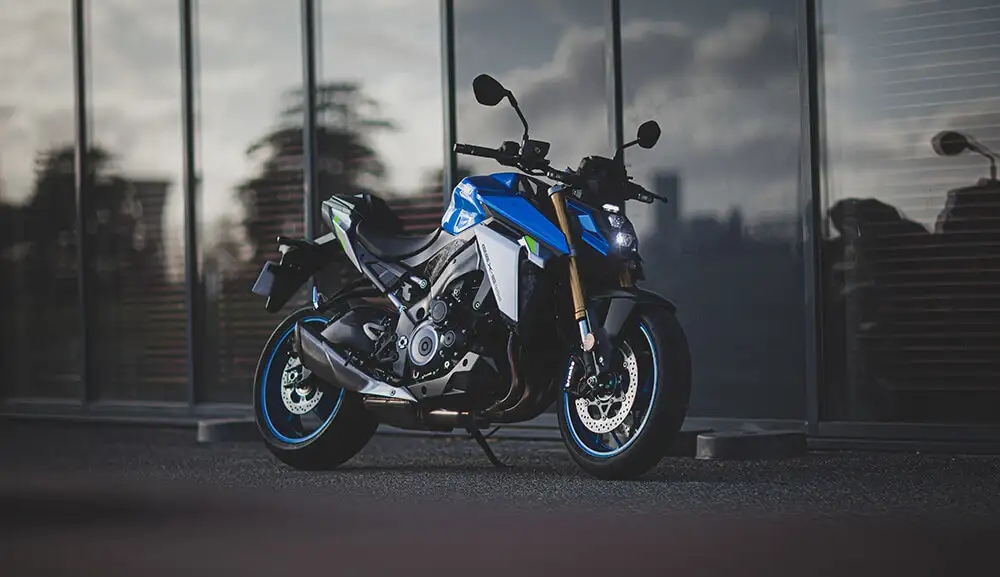

^{The Suzuki GSX-S1000 (Suzuki)}

Design and Aggressive Aesthetics

The design of the GSX-S1000 embodies the stance of Suzuki’s performance-oriented motorcycles. Particularly in post-2021 models, body lines, LED headlights, and a tail section emphasize the bike’s character. The exposed engine and frame contribute to a visual identity aligned with the naked bike category.

Key Design Features:

• Twin-layer Mono-focus LED Headlights: These are vertically stacked and distinctively styled, reflecting Suzuki’s design language.
• Muscular and Aerodynamic Fuel Tank: This enhances the bike’s front-end presence while providing secure grip points for the rider.
• Minimalist Tail Section: This offers a lightweight rear profile.
• Exposed Aluminum Frame: This highlights the structural components as aesthetic elements, consistent with the naked styling.

Engine Specifications and Power Delivery

The Suzuki GSX-S1000 is powered by a 999 cc liquid-cooled, inline four-cylinder engine derived from the GSX-R1000 K5 (2005–2006). This engine has been retuned for strong midrange torque and responsive performance, making it suitable for both street use and dynamic riding.

Key Specifications of the Engine and Drivetrain:

• Engine Type: Liquid-cooled, 4-stroke, DOHC, 16-valve, inline four-cylinder.
• Displacement: 999 cc.
• Maximum Power Output: Approximately 152 PS (112 kW) @ 11,000 rpm.
• Maximum Torque: Approximately 106 Nm @ 9,250 rpm.
• Fuel Delivery System: Electronic fuel injection with Ride-by-Wire throttle control.
• Transmission: 6-speed manual gearbox.
• Clutch System: The engine is integrated with Suzuki’s Clutch Assist System (SCAS), which helps prevent rear-wheel lock-up during downshifts and provides a lighter clutch lever feel.

Chassis, Suspension, and Braking Systems

The chassis of the GSX-S1000 consists of a lightweight aluminum twin-spar frame. This structure plays a key role in determining the motorcycle’s stability and handling characteristics.

Details of the Chassis, Suspension, and Braking System:

• Chassis: Lightweight aluminum twin-spar frame.
• Front Suspension: Fully adjustable 43 mm inverted (USD) KYB telescopic forks.
• Rear Suspension: Link-type monoshock rear suspension with adjustable preload and rebound damping.
• Braking System: Dual front disc brakes with Brembo monobloc radial calipers and a single rear hydraulic disc. Anti-lock Braking System (ABS) is offered as standard.
• Wheels and Tires: Lightweight alloy wheels are fitted with high-performance tires (e.g., Dunlop Roadsport 2), optimized for road handling and grip.

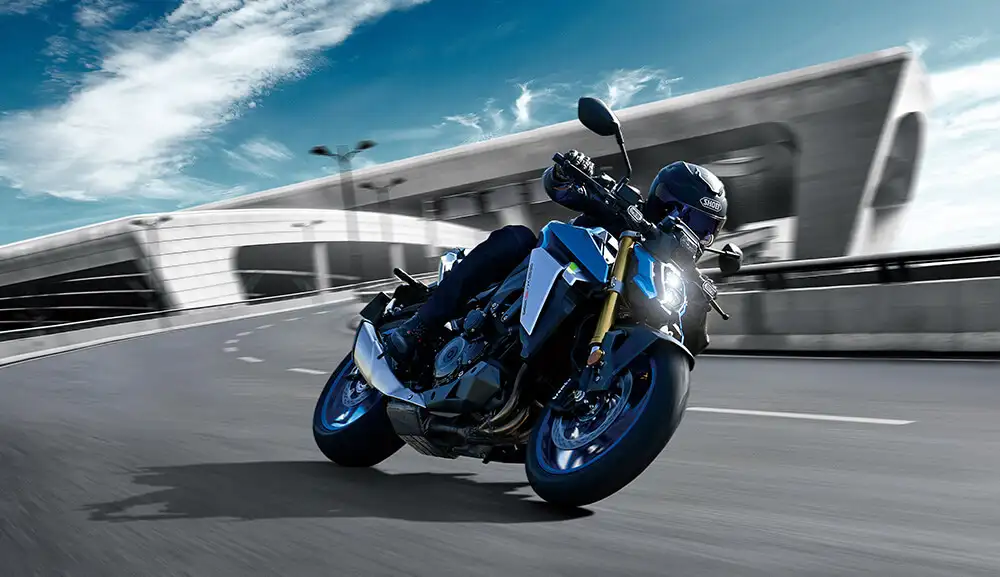

^{The Suzuki GSX-S1000 (Suzuki)}

Electronic Systems and Rider Aids

The Suzuki GSX-S1000 integrates a suite of electronic systems designed to enhance control, safety, and overall ride quality. These systems are tailored for adaptable performance in varying riding environments.

Core Electronic and Rider Assistance Features:

• Suzuki Intelligent Ride System (S.I.R.S.): A collection of electronic rider aid systems.
• Suzuki Drive Mode Selector (SDMS): Allows the rider to choose between different engine power delivery characteristics (e.g., A, B, C modes) to suit riding conditions or preferences.
• Suzuki Traction Control System (STCS): An adjustable system with multiple modes that helps prevent rear wheel spin, especially on slippery surfaces.
• Ride-by-Wire Electronic Throttle: Provides customizable throttle response.
• Bi-directional Quick Shift System: Enables clutchless upshifts and downshifts for faster gear changes.
• Low RPM Assist: Raises engine RPM slightly during starting and at low speeds to prevent unexpected engine stalls.
• Suzuki Easy Start System: Allows the rider to start the engine with a single press of the starter button.
• Full-Color TFT LCD Multi-function Instrument Panel: Displays essential riding information, system settings, and connectivity features in a clear, high-resolution format.
