TEBER Guidance Kit

Aviation And Space+2 More
fav gif
Save
viki star outline
TEBER Guidance Kit
Developer
ROKETSAN
Variants
TEBER-81TEBER-82TEBER-83
Length
2.3 m (TEBER-81)2.7 m (TEBER-82)
Weight
150 kg (TEBER-81)260 kg (TEBER-82)
Range
23 km (TEBER-81) - Aircraft8 km (TEBER-81) - UAV28 km (TEBER-82) - Aircraft13 km (TEBER-82) - UAV30 km (TEBER-82)- UAV (Fixed-Wing)
Guidance
Inertial Measurement UnitGlobal Positioning SystemLaser Seeker Head

The TEBER Guidance Kit is a guidance system developed by Roketsan to ensure that MK-81 and MK-82 General Purpose Bombs reach their targets with high precision. This system transforms conventional bombs into smart munitions, providing effective striking power against both stationary and moving targets. TEBER is designed to be compatible with both combat aircraft and fixed-wing aerial platforms, unmanned aerial vehicles (UAVs), and attack unmanned aerial vehicles (UAVs) such as the Bayraktar Akıncı.


TEBER Guidance Kit (Anadolu Agency)

Technical Specifications

The guidance system uses Inertial Measurement Unit (IMU), Global Positioning System (GPS), and semi-active Laser Seeker Head (LAB) technologies. This enables the bombs to hit their targets with high accuracy. An optional approach sensor feature is also available.


Technical Specifications


Length

Weight

Range (Aircraft)

Range (UAV)

Wingspan

Circular Error Probable

Proximity Sensor

TEBER-81

2.3 meters

150 kg

23 km

8 km

820 mm

< 3 m

2 to 15 meters (optional)

TEBER-82

2.7 meters

260 kg

28 km

13 km - 30 km (fixed-wing)

820 mm

< 3 m

2 to 15 meters (optional)

The TEBER Guidance Kit catalog published by ROKETSAN has been used as a reference.


The TEBER guidance kit has been developed to be compatible with different platforms. There are three main versions: TEBER-81, TEBER-82, and TEBER-83. TEBER-81 is adapted for the MK-81 bomb, while TEBER-82 has been developed for the larger MK-82 bomb.


TEBER can be used against various target types, including military buildings, lightly armored vehicles, stationary and moving targets, and bunkers.

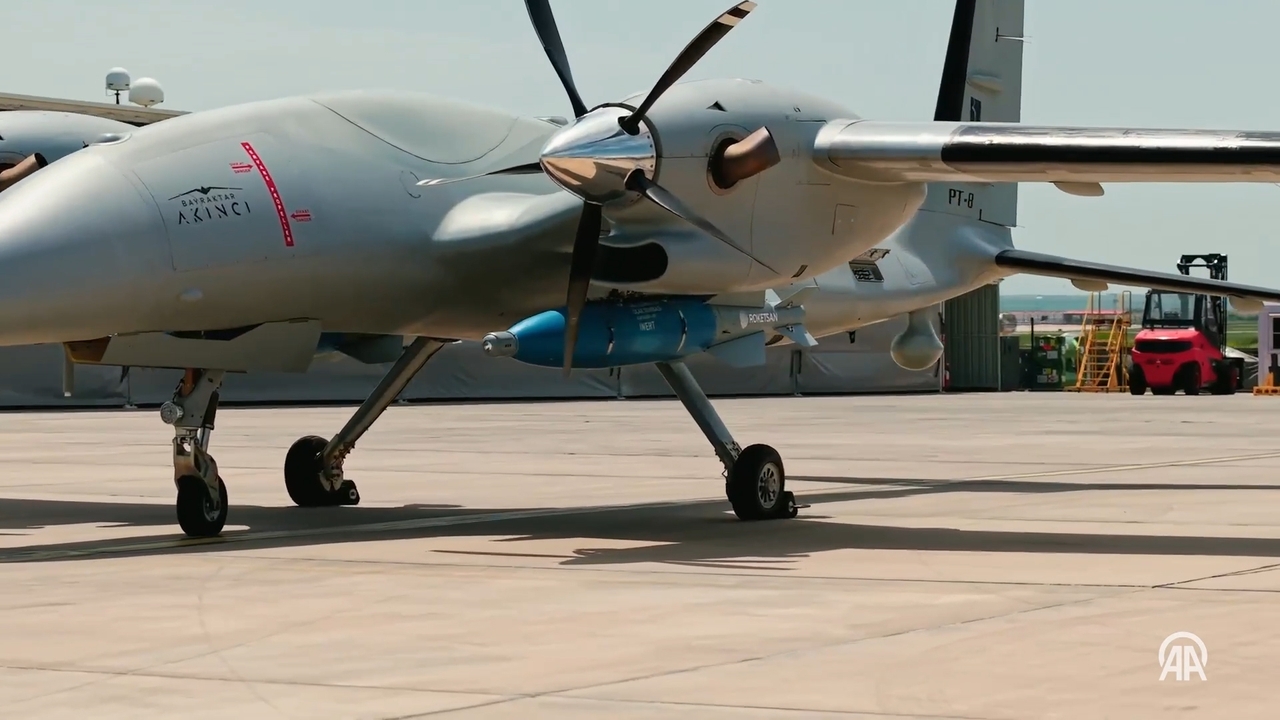

Bayraktar Akıncı TEBER Guidance Kit firing test (Baykar Technologies)


Bibliographies

Anadolu Agency. "Bayraktar AKINCI, TEBER-83 Güdüm Kiti ile ilk atış testini başarıyla tamamladı". 2025. https://www.aa.com.tr/tr/vg/video-galeri/bayraktar-akinci-teber-83-gudum-kiti-ile-ilk-atis-testini-basariyla-tamamladi-

Baykar Technologies. “2 x TEBER Güdüm Kiti Atış Testi – Türk Havacılığının Altın Çağı Bayraktar AKINCI.” YouTube video, 0:01:56, May 1, 2024. https://youtu.be/ZrPnLR8rqSg?si=lyGLmEwaO-85s89v.

Roketsan. "Teber Güdüm Kiti". Roketsan. Accesed 2 Temmuz 2025. https://www.roketsan.com.tr/tr/urunler/teber-gudum-kiti.

Roketsan. "Teber Güdüm Kiti Kataloğu." 2024. Accesed 2 Temmuz 2025. https://www.roketsan.com.tr/uploads/docs/kataloglar/TR/2024/1726595739_teber.pdf.

Anadolu Agency. "Bayraktar AKINCI'dan TEBER-83 güdüm kitiyle başarılı atış". Anadolu Agency. 2025. https://www.aa.com.tr/tr/savunma-sanayisi/bayraktar-akincidan-teber-83-gudum-kitiyle-basarili-atis/3561070
