The Traceability Matrix is a table that links two or more key documents—typically the requirements document containing customer needs and the test plan containing test scenarios—verifying the integrity of the relationship between them. This document is commonly referred to as the Requirements Traceability Matrix (RTM). RTM ensures that all requirements provided by the customer are validated through corresponding test scenarios, guaranteeing that no functional requirement is left unverified.

Objectives of the Traceability Matrix

The objective of the Traceability Matrix in a software development project is to ensure the traceability of all requirements requested by the customer or stakeholders throughout every stage of development and testing. This ensures that the final product is aligned with the initially defined business goals and user needs.

One of the key goals of RTM is to eliminate unnecessary workload and prevent waste of resources. By mapping each requirement directly to a test scenario, project teams avoid developing non-essential features or code segments. This helps to minimize the risk of scope creep during the project lifecycle.

Additionally, the RTM enhances transparency in project management. Since each requirement’s validation status is traceable via the associated test scenario, project teams, auditors, or regulatory bodies can verify how each requirement is addressed by the product.

Moreover, the RTM serves as a concrete tool for quality assurance. In the event of a defect, the related requirement can be traced back, facilitating rapid root-cause analysis. This accelerates the defect resolution process, clarifies test coverage, and ultimately improves the overall quality of the final product.

The Importance of the Traceability Matrix

Today’s software projects involve a degree of uncertainty due to both technological complexity and rapidly changing requirements. This makes it difficult to fully meet all specified needs. At this point, the Traceability Matrix (RTM) plays a critical role in ensuring project success.

Firstly, the Traceability Matrix functions as an auditing mechanism in requirements management. Since each requirement can be tracked throughout the development and testing stages, project teams can verify whether all requirements are being fully addressed. This transparency is particularly beneficial during internal and external audits, serving as strong evidence for regulatory compliance.

Another key benefit of the RTM is its contribution to defect management. Errors identified during testing can be quickly traced back to their associated requirements via the RTM. This enables teams to understand the root cause and accelerate the resolution process. As a result, product quality is improved while costs associated with defects are reduced.

Furthermore, the RTM enhances communication among project stakeholders. Developers, testers, and business analysts can refer to a single shared reference point to stay informed about the status of requirements. This fosters faster information flow within the team and supports data-driven decision-making.

Finally, the RTM is indispensable in highly regulated industries such as aerospace, automotive, and medical devices. It provides traceable evidence required in audits and quality certifications, helping organizations demonstrate their compliance with legal and regulatory obligations.

Types of Traceability Matrices

In software testing processes, traceability matrices are commonly classified into three main types: forward traceability, backward (reverse) traceability, and bidirectional traceability. This classification defines how requirements and test cases are related and managed throughout the project lifecycle.

Forward Traceability Matrix

A forward traceability matrix shows which test cases validate each requirement defined at the beginning of the project. The focus here is on tracking the progression from requirements to test cases. This type of matrix ensures that all specified functions are being correctly implemented as the project evolves.

Backward (Reverse) Traceability Matrix

A backward traceability matrix enables test cases to be traced back to their corresponding requirements. This approach helps eliminate redundant or unnecessary test scenarios. Since unnecessary tests or features not tied to any requirement can waste time and resources, reverse traceability helps mitigate this risk and maintain project efficiency.

Bidirectional Traceability Matrix

The most comprehensive approach, a bidirectional traceability matrix, incorporates both forward and backward traceability. It ensures that each requirement is linked to one or more test cases and that each test case can be traced back to a requirement. This dual-direction mapping guarantees complete test coverage, prevents unnecessary workload, and reveals how changes in requirements impact the system as a whole.

Key Components of a Traceability Matrix

For a traceability matrix to be functional, it must include certain essential components. These components elevate the matrix from being a simple table to serving as a dynamic project control tool.

Requirement ID: Each requirement is assigned a unique identifier to prevent confusion. This ID ensures the traceability of the requirement throughout the project lifecycle.
Requirement Description: Clearly and concisely defines what the requirement entails. This description helps the project team accurately understand the purpose and intent behind the requirement.
Source: Indicates the origin of the requirement. It could stem from a customer request, a regulatory mandate, or a business unit directive. Knowing the source helps with prioritization and facilitates traceability during audits.
Test Case ID: Each test case is also assigned a unique identifier. This allows for a one-to-one mapping between requirements and test cases.
Test Status: Reflects the current status of each test (e.g., written, executed, passed, failed). This provides visibility into the progress and completeness of test coverage.
Defect ID: Documents defects found during testing. This makes it easier to trace each defect back to the specific requirement and its impact.
Priority: Indicates the level of importance of the requirement (e.g., high, medium, low), which assists in resource planning and task scheduling.
Comments or Notes: Captures additional information, assumptions, or special conditions related to the requirement.

These components transform the Requirements Traceability Matrix (RTM) into a powerful and dynamic project management tool. Especially in large-scale projects involving hundreds of requirements and test cases, maintaining these elements accurately within the matrix is critical for effective project tracking and quality assurance.

Steps to Create a Traceability Matrix

Creating a Traceability Matrix (TM) is a critical step for ensuring that project management and software testing processes are conducted in a structured and transparent manner. The process typically follows a systematic structure consisting of the following key steps:

Step 1: Define Objectives: The project team responsible for creating the matrix clearly defines the intended purpose of the Traceability Matrix. Is it meant for scope validation, regulatory compliance, or change management? For instance, in a healthcare software project, regulatory compliance might be the top priority, while in an e-commerce application, full test coverage could take precedence.
Step 2: Collect Requirements: At the start of the project, all business, system, and user requirements are gathered. Requirements should be clear, measurable, and labeled with unique identifiers. These identifiers must remain unchanged throughout the project lifecycle.
Step 3: Design Test Cases: For each collected requirement, corresponding test cases are developed. Test cases should be designed to verify both the functional aspects and, where applicable, edge conditions of the requirement. Each test case must also have a unique identifier.

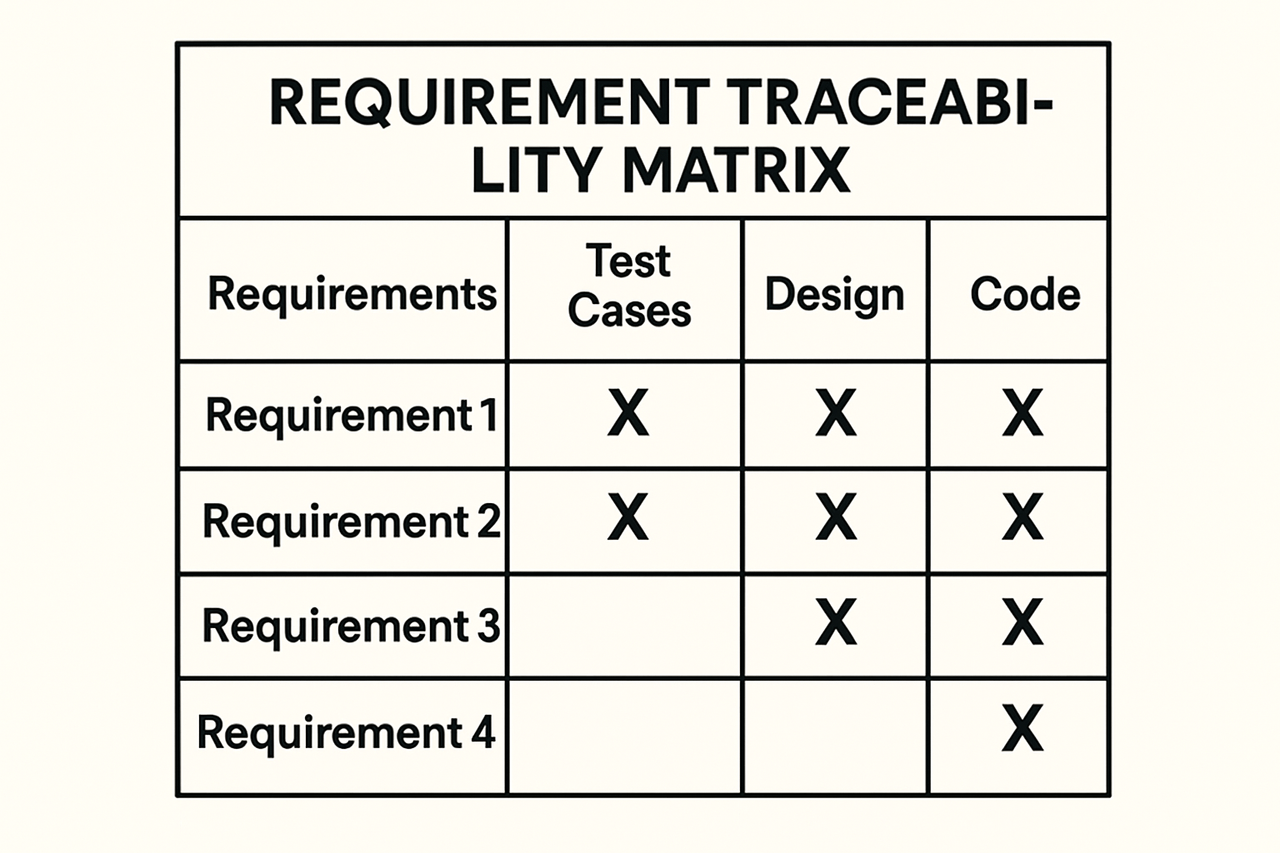

Step 4: Design the Matrix: The RTM is typically created using a spreadsheet (e.g., Excel or Google Sheets) or within a test management tool. Requirements are listed in the rows, and test cases are in the columns. The intersections where requirements are validated by test cases are marked accordingly.
Step 5: Establish Linkages: The matrix clearly shows which test cases validate which requirements. By ensuring bidirectional traceability, both forward (requirements to tests) and backward (tests to requirements) links are established.
Step 6: Review and Approval: The matrix is reviewed by the project teams and quality assurance (QA) units. Missing links, inconsistencies, or redundant test cases are identified and resolved during this phase.
Step 7: Update and Maintain: The RTM is a living document. Any changes to requirements or test cases must be promptly reflected in the matrix. Especially in Agile projects, where requirements evolve frequently across sprints, regular updates to the RTM are essential.

Use Cases of the Traceability Matrix

The Traceability Matrix is widely utilized across various industries and project types. Fundamentally, it is indispensable in fields where quality assurance and regulatory compliance are critical:

Software Development: Ensures full coverage of requirements, comprehensive creation of test cases, and provides evidence of compatibility during version transitions.
Medical and Healthcare Sector: Documents requirements to ensure compliance with regulations such as FDA and ISO in medical device software.
Aerospace and Defense Industry: Enables verifiable demonstration that critical systems are fully tested for functionality, safety, and performance.
Automotive Industry: Provides proof that functionalities in autonomous driving software or embedded systems are tested by regulations.
Finance: Reduces error risks in high-security banking software and ensures audit traceability.
Compliance Matrices: Tracks adherence to legal frameworks such as ISO standards, GDPR, and KVKK (Turkey's Personal Data Protection Law).
