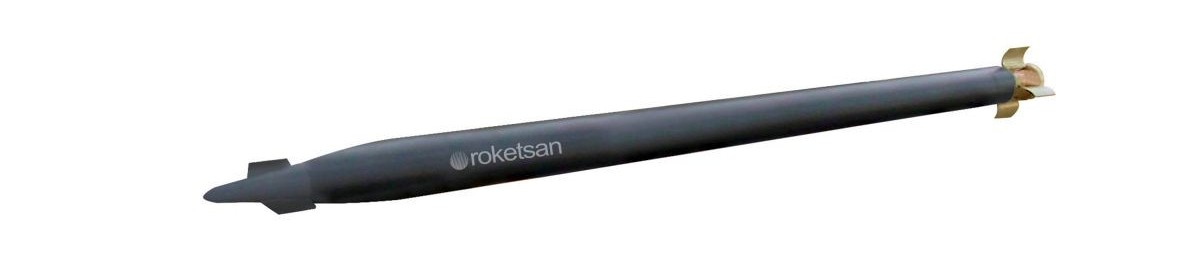

TRG-122 is a 122 mm guided artillery rocket developed and produced by Roketsan, featuring high accuracy and destructive power. The system is designed to be launched from land, sea, and air platforms, with a range varying between 13 and 35 kilometers. TRG-122, which can be integrated into different platforms, is configured for use via multi-barrel launchers and Armed Unmanned Aerial Vehicles (UAVs).
TRG-122 Guided Rocket (Roketsan)
System Features
The TRG-122 Guided Rocket has been developed to demonstrate high effectiveness in various environmental conditions. The system is equipped with the following features:
- Capability to be used 24/7 in all weather and terrain conditions
- Capacity to be ready for firing in a short time
- High accuracy and precise engagement capability
- Minimizing environmental damage with low unintended impact
- Simple and fast operation
TRG-122 Guided Rocket (Roketsan)
Areas of Use
TRG-122 is effectively used against the following target types:
- Targets detected with high accuracy
- Artillery and air defense systems
- Radar emplacements
- Military assembly areas
- Logistics support facilities
- Command, control, and communication systems
- Other high-priority targets
Technical Specifications
Feature | Value |
Diameter | 122 mm |
Weight | 76 kg |
Range | 13 – 30 km (depending on platform and altitude) |
Guidance System | GPS (Global Positioning System) Supported INS (Inertial Navigation System) + AOB |
Control Mechanism | Aerodynamic Control with Electromechanical Actuation System |
Fuel Type | Composite Solid |
Warhead Type | High Explosive + Steel Ball |
Warhead Weight | 13.5 kg |
Warhead Effective Radius | ≥ 40 meters |
Fuze Type | Impact and Proximity |
Hit Accuracy (CEP) | ≤ 10 m |
Platform Integration and Development
TRG-122 was initially developed for land-based systems. It was later tested on naval platforms and successful engagements were carried out. The system has also been integrated into Armed Unmanned Aerial Vehicles (UAVs), gaining the ability to be used against air-to-surface targets. The integration of TRG-122 into UAV and naval platforms has increased Roketsan's expertise in this field and paved the way for the development of similar systems.
Guidance and Control
TRG-122 is guided using a GPS-supported Inertial Navigation System (INS) and AOB (an undisclosed additional system). Thanks to these systems, the deviation from the target is kept at a minimal level. Aerodynamic surfaces with an electromechanical actuation system are used as the control mechanism. This structure ensures that desired corrections to the rocket's flight path are made precisely.
TRG-122 Guided Rocket Promotional Video (Roketsan)
The TRG-122 Guided Rocket is an ammunition system that provides high effectiveness in the modern battlefield with its range, guidance capability, and warhead features. This rocket, developed by Roketsan for use on land, sea, and air platforms, is considered a strategic element for precisely striking high-priority targets.
