Von Neumann Architecture is a design model that forms the foundation of modern computer systems. This architecture defines the essential components that regulate the operation of a computer and the relationships between them. Developed by John von Neumann, the structure is especially notable for the concept of the “stored program.” This concept refers to storing both program instructions and data in the same memory unit—a radical departure from earlier computing machines (e.g., ENIAC)—and enables the reprogrammability of computers.

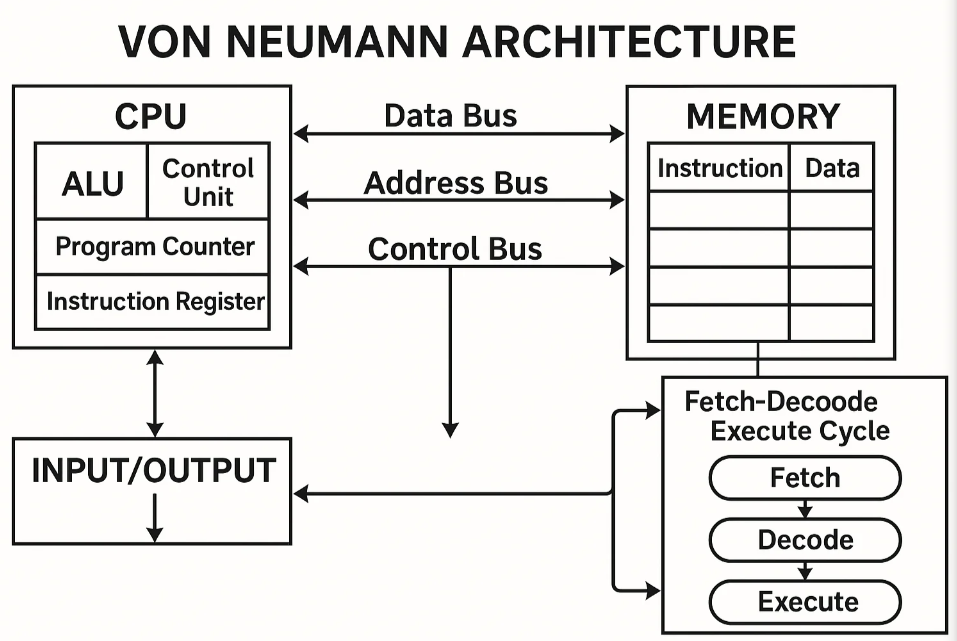

The architecture consists of five main components, which operate in synchronization:

• Arithmetic and Logic Unit (ALU): Performs basic mathematical operations (addition, subtraction, multiplication, division) and logical operations (AND, OR, NOT). The ALU is the core of the processor's (CPU) computational capacity and typically processes input data to produce an output.
• Control Unit (CU): Acts as the “brain” of the processor. It retrieves instructions from memory, decodes them, and generates the necessary signals for execution. It includes sub-units such as the program counter and instruction register. The program counter holds the address of the next instruction in memory, while the instruction register stores the current instruction.
• Memory: A storage unit that holds both instructions and data. In Von Neumann Architecture, memory has a single address space, typically implemented with technologies like Random Access Memory (RAM). Memory stores information in binary format; for example, an 8-bit word (byte) can represent an instruction or a piece of data.
• Input/Output Units: Enable communication between the system and the external world. Devices like keyboards, mice, and displays receive data from or send data to users. These units are coordinated by the control unit.
• Bus (Data Pathways): Transmission lines that carry data, addresses, and control signals between components. The bus directly affects system performance since all instruction and data transfers occur through these lines.

The operation of the Von Neumann Architecture is based on the fetch-decode-execute cycle. This cycle outlines a sequential instruction execution process:

• Fetch: The control unit retrieves the instruction from memory at the address specified by the program counter. The instruction is loaded into the instruction register, and the program counter is updated to point to the next instruction (e.g., incremented by one).
• Decode: The control unit analyzes the instruction to determine its type (e.g., an addition operation or memory read) and generates the necessary control signals.
• Execute: The ALU performs the required operation (e.g., adding two numbers), or the control unit sends a command to the input/output units. Once completed, the result is usually written back to memory, and the cycle starts again.

This cycle reflects the deterministic and sequential nature of the Von Neumann Architecture. For instance, in an addition operation, two numbers (operands) are fetched from memory, processed by the ALU, and the result is written to another memory location. This process can repeat billions of times per second in modern processors.

The architecture also relies on the principle of single addressing, meaning that both instructions and data use the same memory addressing system. While this simplifies memory management, it leads to a limitation known as the “Von Neumann Bottleneck.” This bottleneck arises because there is only one data path between the CPU and memory, requiring instructions and data to be transferred alternately over the same bus. For example, if the processor is waiting for an instruction and cannot receive data simultaneously, it reduces processing efficiency.

^{Generated by artificial intelligence.}

Another important feature of the Von Neumann Architecture is its modular structure. The clear distinction between components allows for standardized hardware design, making it applicable across different systems. This modularity facilitated the spread of computers in commercial and academic domains from the 1950s onward. Moreover, the stored program concept transformed software development, as programs could now be modified easily by writing new instructions into memory instead of physically reconfiguring hardware.

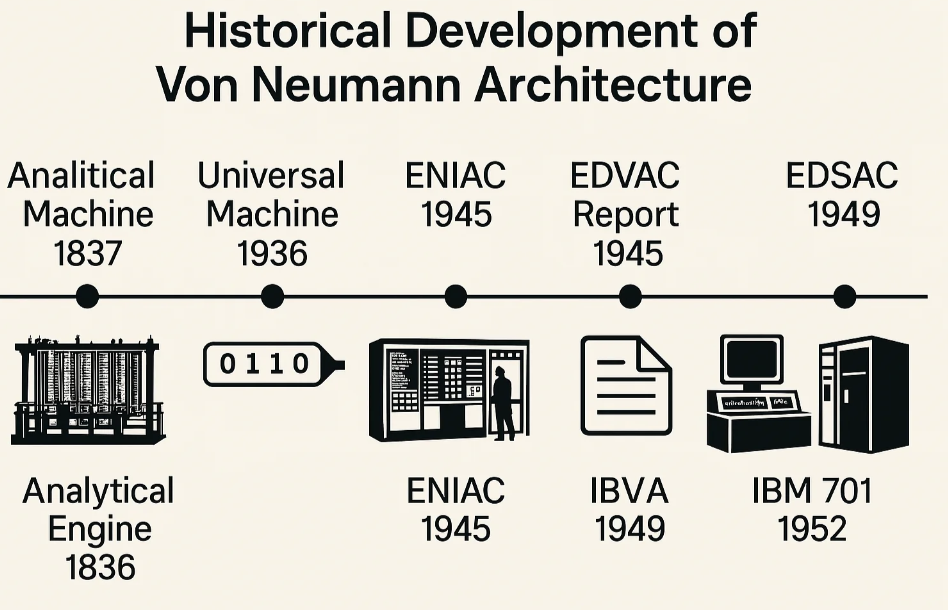

History and Emergence

Early Computing Devices and Context

The foundations of the Von Neumann Architecture reach back to the computing technologies of the 19th and early 20th centuries. Charles Babbage’s Analytical Engine introduced the idea of a programmable system but was never fully realized due to mechanical limitations. In the 1930s, Alan Turing’s Universal Turing Machine theory demonstrated that a machine could perform any computation given a set of instructions, laying the groundwork for Von Neumann’s later work.

World War II acted as a catalyst for turning these theoretical developments into practical applications. During the war, complex problems such as ballistic calculations, codebreaking, and nuclear weapons design created a pressing need for fast and reliable computing systems. One of the first electronic computers, ENIAC (Electronic Numerical Integrator and Computer), was completed in 1945. However, ENIAC required physical reconfiguration through cables and switches to be reprogrammed—a process that was both time-consuming and inflexible.

EDVAC and Von Neumann’s Contribution

The formalization of the Von Neumann Architecture began with the EDVAC (Electronic Discrete Variable Automatic Computer) project. In 1944, while working as an advisor on the ENIAC project, John von Neumann met J. Presper Eckert and John Mauchly, who were designing a new type of machine. Unlike ENIAC, the proposed design for EDVAC included storing program instructions in memory. Von Neumann systematically detailed this idea in a report titled “First Draft of a Report on the EDVAC,” published on June 30, 1945. This 103-page document defined the computer’s five fundamental components—ALU, control unit, memory, input/output units, and data bus—and thoroughly explained the stored program concept.

In the report, Von Neumann proposed that both instructions and data could be stored in the same memory unit, enabling a computer to be reprogrammed by simply changing the contents of memory. This was a stark contrast to ENIAC, where physical rewiring was needed for any change in program. Additionally, Von Neumann advocated for the use of the binary number system, which later became a standard in modern computers.

Historical and Scientific Influences

Von Neumann’s work was shaped not only by his own ideas but also by the contributions of other scientists of the era. Turing’s theoretical models influenced the development of the stored program concept. Furthermore, as a researcher at the Institute for Advanced Study in Princeton, Von Neumann drew on his broad knowledge in mathematics and physics. For example, solving differential equations in nuclear weapons research required fast and flexible computational systems, motivating the EDVAC design.

Although Von Neumann’s report was initially distributed on a limited scale, it had a broad and lasting impact. When combined with the practical experience of Eckert and Mauchly, Von Neumann’s name became strongly associated with the architecture. Some historians argue that this naming overshadows Eckert and Mauchly’s contributions, but the report undeniably provided a systematic theoretical framework that solidified the architecture's academic and technical foundations.

Early Implementations and Spread

The first practical implementations of the Von Neumann Architecture appeared in the late 1940s and early 1950s. One of the earliest was the EDSAC (Electronic Delay Storage Automatic Calculator), completed in 1949, which implemented the stored program concept. This was followed by systems like the Manchester Mark 1 (1951) and IBM 701 (1952), which adopted the architecture and extended its use in both commercial and scientific fields.

In the 1950s, the development of semiconductor technology and the transition from vacuum tubes to transistors greatly enhanced the feasibility of Von Neumann-based systems. Improvements in memory technologies—such as magnetic core memory—increased instruction and data storage capacities, making the architecture more efficient. During this period, universities and research institutions across the US and Europe began using Von Neumann systems for scientific computing, which helped standardize the architecture.

^{Generated by artificial intelligence.}

Cultural and Technological Impact

The emergence of the Von Neumann Architecture was not only a technical innovation but also a cultural shift. In the postwar period, the transition of computers from purely scientific tools to industrial applications was made possible thanks to the architecture’s flexibility. Furthermore, Von Neumann’s openly published report encouraged information sharing, contributing to the rise of computer science as a global discipline.

Technical Specifications and Operation

Technical Structure of Core Components

The operation of the Von Neumann Architecture relies on the coordinated function of five main components:

• Arithmetic and Logic Unit (ALU): The ALU is the unit that provides the computational capability of the processor. It performs mathematical operations (e.g., addition, subtraction, multiplication) and logical operations (e.g., AND, OR, NOT). Technically, the ALU takes input data (operands), applies an operation, and produces an output (result). For example, to add two 8-bit numbers, the ALU performs bit-level addition and manages carry conditions. The speed of the ALU is determined by the clock frequency and bit width of the processor (e.g., 32-bit or 64-bit).
• Control Unit (CU): The control unit acts as the management center of the processor, enabling the interpretation and execution of instructions. It contains two essential subcomponents:
• Program Counter (PC): Holds the memory address of the next instruction to be executed. Each time an instruction is fetched, the PC is typically incremented.
• Instruction Register (IR): Stores the current instruction being processed. The control unit decodes the instruction in the IR and sends appropriate signals to the ALU or other components. For example, an “ADD” instruction will trigger the ALU to add two numbers.
• Memory: In Von Neumann Architecture, memory stores both instructions and data using a single addressing system. It is typically implemented as Random Access Memory (RAM), and each memory cell is identified by an address. For example, in a 32-bit system, memory addresses range from 0 to 2³²–1, with each address holding a byte (8 bits) or a word (e.g., 32 bits) of data. Memory operates in binary format; an instruction might be represented as a bit sequence like "10110011", which encodes a specific operation (e.g., an addition command).
• Input/Output Units (I/O): These units enable interaction between the system and the external world. Technically, input devices (e.g., keyboard) convert analog or digital signals into binary data, while output devices (e.g., display) convert this data into a user-friendly format. The control unit coordinates these devices with memory or the ALU—for instance, reading a data block from memory and sending it to a printer.
• Bus System: The bus refers to transmission lines that carry data, addresses, and control signals between components. There are three main types of buses:
• Data Bus: Transfers instructions and data. Its width (e.g., 16-bit, 32-bit) determines the amount of data transferred at once.
• Address Bus: Carries memory addresses. Its width limits the addressable memory (e.g., a 32-bit address bus can address 4 GB of memory).
• Control Bus: Transfers control signals (e.g., read/write commands) between the CPU and other units. The bandwidth and speed of the data bus directly affect overall system performance.

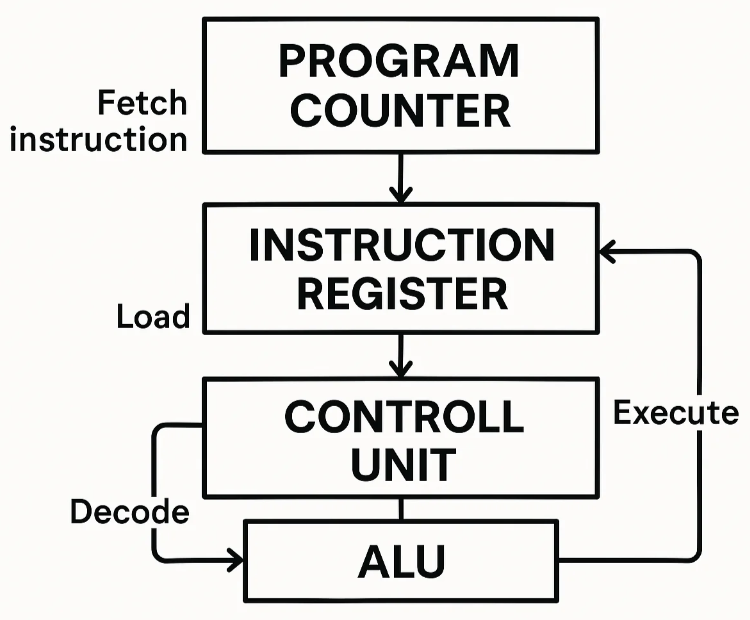

Detailed Operation of the Fetch-Decode-Execute Cycle

The operation of Von Neumann Architecture is defined by the fetch-decode-execute cycle, which enables the sequential processing of instructions. Each phase involves technical procedures:

• Fetch: The control unit reads the address from the program counter and retrieves the instruction from memory. For example, if the PC holds address “1000”, the instruction stored at memory cell 1000 is fetched.
• The instruction is loaded into the instruction register, and the PC is incremented (e.g., to 1001) in preparation for the next instruction.
• This process is limited by memory access time, where the Von Neumann bottleneck becomes apparent—since the CPU cannot perform other operations while waiting for the instruction.
• Decode: The instruction in the IR is analyzed by the control unit. It typically consists of an opcode and operands. For example, in the instruction "ADD R1, R2", "ADD" is the opcode, and "R1, R2" are the registers involved.
• The control unit translates this into micro-operation signals. For example, it may send a signal to the ALU to perform addition and determine the operand addresses.
• Execute: Depending on the instruction type, the ALU performs a computation (e.g., R1 + R2 = R3), or the control unit performs a memory operation (e.g., writing a value to memory).
• The result is usually stored in a register or memory. For example, the sum may be stored in the register "R3".
• Once this phase is complete, the cycle restarts with a new fetch step.

This cycle can be repeated billions of times per second in modern processors, synchronized by the clock frequency (e.g., 3 GHz). However, its sequential nature limits parallel processing capabilities.

Von Neumann Bottleneck and Technical Limitations

The most notable technical limitation of the Von Neumann Architecture is the "Von Neumann bottleneck." This bottleneck arises from the use of a single data bus between the CPU and memory. Instructions and data are transmitted sequentially over the same bus, causing the CPU to idle while waiting for memory access. For example, even if a processor is capable of performing 10 billion operations per second, its performance is constrained if memory access is limited to 1 GB/sec. The technical root of the bottleneck is related to memory bandwidth and latency. Modern systems have developed techniques to alleviate this issue, such as:

• Cache Memory: Frequently used data is stored in fast-access memory close to the CPU, reducing access to slower main memory.
• Pipelining: The fetch, decode, and execute phases are performed simultaneously on different instructions, increasing processor efficiency.

A Simple Example

Instruction in memory: "ADD 100, 200" (add values at addresses 100 and 200):

• Fetch: The PC points to address "500"; the instruction "ADD 100, 200" is loaded into the IR; the PC increments to 501.
• Decode: The control unit decodes the "ADD" command and prepares the ALU for addition.
• Execute: The ALU retrieves the data from addresses 100 and 200 (e.g., 5 and 3), adds them (5 + 3 = 8), and writes the result to memory (e.g., at address 300).

^{Generated by artificial intelligence.}

Technical Flexibility and Standardization

One of the key technical advantages of the Von Neumann Architecture is its modular and standardized structure. The clear separation of components allows for adaptation to different hardware designs. Moreover, the stored program concept enables software to be developed independently of the hardware, paving the way for assembly and high-level programming languages (e.g., C).

Applications of the Von Neumann Architecture

General-Purpose Computer Systems

The Von Neumann Architecture forms the foundation of modern general-purpose systems such as personal computers (PCs), laptops, workstations, and servers. These systems rely on the stored program concept, which enables different software to run on a single hardware platform. For example, a desktop computer with the same processor and memory system can run a word processing application (e.g., Microsoft Word) at one moment and a web browser (e.g., Google Chrome) the next. This flexibility stems from Von Neumann’s use of a single address space for both instructions and data.

Technically, these systems process sequential instructions using the fetch-decode-execute cycle. For instance, when a user saves a text file, the CPU first writes the file data to memory and then coordinates the I/O units to transfer it to the hard disk. Such systems typically implement 32-bit or 64-bit architectures with memory capacities in the gigabyte range (e.g., 8 GB RAM), supporting a large set of instructions and data.

Scientific Computing

Von Neumann Architecture has been widely used—and continues to be used—in scientific research to solve complex mathematical problems. Since the 1950s, fields like physics, chemistry, and engineering have relied on this architecture for tasks such as solving differential equations, statistical analysis, and simulations. For example, atomic bomb simulations in nuclear physics or weather forecasting models in meteorology were computed using Von Neumann-based systems.

In these applications, the ALU’s computational power and the ability to process large datasets in memory are crucial. As a technical example, solving a system of linear equations using the Gaussian elimination method involves the CPU sequentially adding, multiplying matrix elements, and writing the results back to memory. Since such processes align well with sequential instruction execution, Von Neumann systems provide effective solutions. Modern tools like MATLAB are based on this architecture but often use enhancements like caching and multi-core processing for improved performance.

Commercial and Office Applications

Von Neumann Architecture is a standard design for commercial applications such as database management, accounting software, and office automation. Since the 1960s, systems like the IBM 360 have used this architecture to automate data processing in business environments. Today, a customer records database might run on a Von Neumann-based server, sequentially executing operations to read, update, and store data.

Technically, such applications require intensive use of I/O units. For example, accounting software receives invoice data (input), processes it (via the ALU), and saves the results to a file (output). The modular structure of Von Neumann systems allows them to adapt to different hardware configurations—e.g., adding hard drives or network interfaces.

Educational and Instructional Tools

Von Neumann Architecture is a foundational tool in computer science education. Students learn the internal workings of computers by simulating this architecture. For instance, simulators that implement the fetch-decode-execute cycle step-by-step using an assembly language (e.g., MIPS) help students grasp its logic. In education, the architecture is typically introduced through a simplified processor model (e.g., an 8-bit CPU), allowing students to understand instruction sets, memory management, and bus operations.

As a technical example, in an educational simulator, the instruction "LOAD R1, 100" could be executed as follows:

• Fetch: The instruction is retrieved from memory.
• Decode: The "LOAD" operation is identified, and it's determined that the value at address 100 should be loaded into register R1.
• Execute: The value is fetched from memory and written to R1.

This process helps students understand the basic logic behind computer operations.

Embedded Systems

Von Neumann Architecture is also used in certain embedded systems, especially those requiring low power consumption and simple operations. For example, a digital thermostat or a car engine control unit (ECU) may implement this architecture. In such systems, microcontrollers (e.g., Arduino or PIC) follow the Von Neumann model, storing instructions and data in the same flash memory and executing them sequentially.

Technically, these systems often use 8-bit or 16-bit processors with limited memory (e.g., a few kilobytes). In the case of a thermostat, for instance, the CPU reads temperature data (input), compares it with a threshold value (ALU), and generates a signal to turn a heater on or off (output). The simplicity of Von Neumann’s design makes it ideal for low-complexity applications.

Limited Parallel Processing Applications

While Von Neumann Architecture is fundamentally designed for sequential processing, it can be used in limited parallel applications in modern systems. Multi-core processors implement multiple Von Neumann-based cores that can execute separate instruction streams simultaneously. For example, a quad-core processor can process four instruction sequences at once, which is beneficial for tasks like video decoding or multitasking. However, this is still not as efficient as truly parallel architectures (e.g., GPUs), and the Von Neumann bottleneck remains a limiting factor.

Historical and Modern Examples

Historically, early implementations of the Von Neumann Architecture included systems like EDSAC (1949) and IBM 701 (1952). While EDSAC was used for scientific computations, IBM 701 played a key role in commercial data processing. Today, processors based on this architecture, such as Intel x86 and ARM, are found in a wide range of devices—from smartphones to supercomputers. For instance, an ARM Cortex-A series processor can run both the Android operating system and applications (e.g., games) on a smartphone.

Limitations and the Shift to Alternatives

Although the Von Neumann Architecture is effective for sequential tasks, it faces limitations in modern domains requiring parallel processing, such as artificial intelligence and big data analytics. Tasks like deep learning or graphics processing involve handling multiple data streams simultaneously—something not well-suited to Von Neumann’s single bus design. For this reason, alternatives like GPUs (based on Harvard Architecture) and neuromorphic systems have been developed. Nevertheless, for general-purpose computing, Von Neumann Architecture still plays a dominant role.

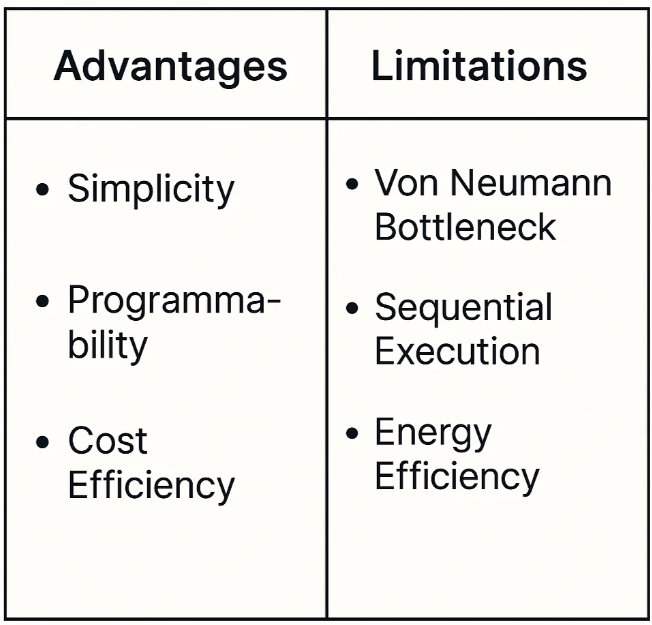

Advantages and Limitations

Advantages

Simplicity and Design Ease

One of the most prominent advantages of the Von Neumann Architecture is its simple and modular structure. The clear separation between components such as the CPU, memory, input/output units, and data bus standardizes hardware design and increases its applicability. Using a single memory system to store both instructions and data requires less complexity compared to designs with separate memory systems (e.g., Harvard Architecture). This simplicity facilitated the widespread adoption of computers in commercial and scientific fields during the 1950s and 1960s.

Technically, this reduces hardware costs and optimizes manufacturing processes. For example, in a Von Neumann-based system, a single addressing mechanism is sufficient for memory management, simplifying the design of memory controllers. Its modularity also allows easy integration of memory or processor units with different capacities.

Programmability and Flexibility

The stored program concept is one of the architecture's greatest strengths. By storing instructions in memory, the system can be reprogrammed for different tasks without physical reconfiguration (e.g., unlike ENIAC’s cable-switching method). This transformed software development and turned the computer into a general-purpose tool.

For instance, on a Von Neumann-based computer, a calculator application can be run followed by a database software using the same hardware. Technically, this is possible because the instruction set is stored as a sequence of binary codes in memory. For example, an instruction like "ADD R1, R2" might be stored as "0001 0001 0010", which the control unit decodes and routes to the ALU. This approach paved the way from assembly languages to high-level languages (e.g., C, Python), allowing the software ecosystem to grow.

Cost-Effectiveness

Using a single memory for both data and instructions reduces cost compared to architectures that require separate instruction and data memories. Memory is one of the most expensive components in a computer; thus, this design offered an economic solution, especially for early systems like the IBM 701.

Technically, a single RAM module can store both instructions and data, reducing the number of components and simplifying maintenance. In the 1950s, with magnetic core memory, the Von Neumann design allowed for more efficient use of limited memory. Even today, low-cost embedded systems (e.g., microcontrollers) take advantage of this simplicity and cost-efficiency.

Standardization and Wide Acceptance

The modular and simple structure of the Von Neumann Architecture has become a standard for hardware and software developers. This enabled different manufacturers (e.g., Intel, AMD) to design compatible systems and allowed software developers to work across a broad range of platforms. Technically, this standardization helped shape universal frameworks for CPU architectures (e.g., x86) and memory management systems (e.g., virtual memory).

Limitations

Von Neumann Bottleneck

The most significant limitation is the Von Neumann bottleneck, which arises from using a single data bus between the CPU and memory. Instructions and data are transmitted sequentially over the same bus. Technically, this leads to CPU idle time while waiting for data or instructions from memory, reducing overall system efficiency.

For example, a CPU running at 3 GHz (3 billion cycles per second) may be limited by a memory bandwidth of just 1 GB/sec, meaning only a portion of its potential is used. Factors such as memory latency and bandwidth further complicate the issue. While modern systems implement cache, pipelining, and multi-bus architectures to mitigate this problem, they do not eliminate the core limitation.

Sequential Processing Limitation

The Von Neumann Architecture uses a sequential processing model based on the fetch-decode-execute cycle. This poses a disadvantage for modern applications requiring parallel processing (e.g., AI, graphics). Each instruction must be completed before the next begins, limiting the ability to process multiple data streams simultaneously.

For instance, deep learning models require simultaneous updates to millions of neurons, but a Von Neumann CPU processes these sequentially. In contrast, GPUs with thousands of cores handle such tasks in parallel. This mismatch limits the architecture's suitability for today’s big data and AI workloads.

Energy Efficiency Issues

The single data bus and sequential nature of the architecture negatively affect energy efficiency. Constant data transfer between the CPU and memory increases power consumption, as memory access is required for each fetch and execute phase. This is particularly problematic in mobile devices and low-power systems.

For example, a smartphone with a Von Neumann CPU accesses memory frequently while running apps, which shortens battery life. Alternative architectures (e.g., Harvard, neuromorphic) reduce this by separating instruction and data paths or integrating memory into the processor.

Scalability and Modern Requirements

Originally designed for the computational needs of the 1940s and 1950s, Von Neumann Architecture faces challenges in scalability for today’s large-scale systems (e.g., cloud computing, supercomputers). A single processor-memory system cannot efficiently support millions of simultaneous operations. Solutions like multi-core CPUs and distributed systems have been developed, but they only offer superficial improvements without altering the architecture’s core.

For example, a supercomputer may use thousands of Von Neumann-based cores, but each core still suffers from the Von Neumann bottleneck, limiting overall performance and increasing interest in alternative architectures like quantum computing.

^{Generated by artificial intelligence.}

Balancing Advantages and Limitations

The advantages of Von Neumann Architecture are especially evident in early computers and general-purpose systems. Simplicity, flexibility, and cost-effectiveness made it the dominant architecture throughout the 20th century. However, its limitations—especially the bottleneck and lack of parallelism—create incompatibilities with modern demands. As a result, while the architecture is still used in general-purpose systems, specialized applications now prefer alternatives such as GPUs and FPGAs.

Ultimately, the advantages and limitations of the Von Neumann model define both its historical significance and contemporary relevance. Its technical structure serves as a reference point in developing new computing paradigms.

Current Status and Future Perspective

Current Status

Dominance in General-Purpose Systems

As of 2025, Von Neumann Architecture remains the fundamental design for general-purpose computing devices such as personal computers, servers, smartphones, and embedded systems. Processors like Intel x86 and ARM are based on this model and operate using the fetch-decode-execute cycle. The stored program concept enables various software to run on the same hardware. For instance, a smartphone can run both a messaging app and a game using the same Von Neumann-based CPU.

This dominance is due to its modular design and standardized infrastructure. Modern processors support 64-bit addressing, enabling access to trillions of bytes of memory (e.g., terabytes of RAM) and can process billions of instructions per second at frequencies like 3–5 GHz. However, these systems still rely on Von Neumann principles while being enhanced with performance optimizations.

Optimized Applications

Modern systems based on the Von Neumann model are enhanced with techniques to mitigate limitations:

• Cache Systems: Frequently used data is stored in low-latency cache layers (L1, L2, L3), reducing memory access time from milliseconds to nanoseconds and easing the bottleneck.
• Multi-Core Processors: CPUs now contain multiple Von Neumann cores to provide limited parallelism. For example, an 8-core CPU can handle eight instruction streams simultaneously.
• Pipelining and Superscalar Architectures: Instructions are processed in parallel stages, increasing CPU throughput. Superscalar processors can execute multiple instructions per clock cycle.

These optimizations adapt the architecture to modern needs but do not eliminate fundamental bottlenecks. For instance, gaming PCs may achieve high FPS using these methods but still rely on GPUs for intensive graphics processing.

Declining Role in Specialized Systems

While Von Neumann Architecture remains dominant in general-purpose systems, it is being replaced by alternative architectures in specialized fields like AI and big data analytics. Research institutions like IBM acknowledge that Von Neumann systems cannot efficiently support AI models that require massive parallel matrix operations. Instead, GPUs (Harvard-based) and TPUs (Tensor Processing Units) are preferred.

For instance, Google’s TPU can perform matrix multiplications thousands of times faster than a Von Neumann CPU, showing that the architecture is increasingly limited to general-purpose roles.

Challenges Faced

Performance and the Von Neumann Bottleneck

The most pressing challenge remains the Von Neumann bottleneck. A single bus cannot meet the bandwidth demands of modern applications. Even with technologies like DDR5 RAM offering up to 50 GB/sec, this does not match CPU speeds of 5 GHz. In supercomputers, if data transfer supports only 10% of total processing capacity, the rest of the system remains idle.

Energy Efficiency

The constant transfer between CPU and memory increases energy consumption, especially in power-sensitive systems like mobile devices and data centers. For example, cloud servers serving millions of users can consume kilowatts of power, increasing their carbon footprint and clashing with sustainability goals.

Lack of Parallelism

Modern applications in AI, graphics, and big data require massive parallel processing. The sequential nature of Von Neumann systems limits their performance. For instance, in an image recognition task, thousands of pixels need to be processed simultaneously, but a Von Neumann CPU handles them one at a time. This lengthens processing time and increases reliance on alternative architectures.

Future Perspective

Continued Role of Von Neumann

The Von Neumann model will continue to play a role in general-purpose computing. The current infrastructure (e.g., x86 and ARM ecosystems) and software compatibility make it difficult to abandon entirely. Operating systems like Windows and Linux and thousands of applications are optimized for Von Neumann-based processors. Additionally, low-complexity systems, such as embedded devices, will continue to use it due to its simplicity and cost-effectiveness.

Modern innovations are helping extend its viability. Technologies like quantum cache and photonic data buses may alleviate bottlenecks. Hybrid systems (e.g., CPU + GPU combinations) use the Von Neumann model in a complementary role.

Shift to Alternative Architectures

The limitations of Von Neumann Architecture are accelerating the development of alternative paradigms:

• Neuromorphic Computing: Mimics the human brain and uses event-driven models instead of sequential processing. IBM’s TrueNorth chip offers high parallelism and energy efficiency.
• Quantum Computing: Operates on fundamentally different principles. Quantum processors like Google’s Sycamore can solve certain problems millions of times faster than classical systems—but are not yet suitable for general-purpose use.
• Harvard Architecture: Uses separate memories for instructions and data, eliminating the bottleneck. It’s widely used in GPUs and DSPs (Digital Signal Processors).

While these alternatives may eventually replace Von Neumann, the transition could take years due to infrastructure redesign, software compatibility, and cost concerns.

Hybrid Approaches and Integration

Rather than being entirely replaced, Von Neumann Architecture will likely be integrated into hybrid systems. For example, an AI chip could combine a Von Neumann CPU with a neuromorphic processor to handle both general-purpose and specialized tasks. Technically, such a system could delegate control tasks to the Von Neumann core and parallel processing to the alternative unit.
