Piezoelectric Effect

The piezoelectric effect is a physical phenomenon in which certain crystalline and ceramic materials generate an electric charge in response to applied mechanical stress. This property arises from changes in polarization at the atomic level, particularly in materials with a crystalline structure. The term “piezoelectric” is derived from the Greek word “piezein,” meaning “to press” or “to squeeze.”

This phenomenon is bidirectional: the first is the direct piezoelectric effect, in which an electric potential is generated in response to applied pressure; the second is the converse piezoelectric effect, in which the material undergoes mechanical deformation when an electric field is applied. This dual functionality enables piezoelectric materials to be used both as sensors and as actuators.

Piezo Disk Example (Electricport)

Historical Development

The foundations of the piezoelectric effect were laid in the mid-18th century by Carl Linnaeus and Franz Aepinus, and later expanded upon by René Just Haüy and Antoine César Becquerel. However, the first direct experimental evidence of the effect was demonstrated in 1880 by Pierre and Jacques Curie. They observed that electric potentials developed on the surfaces of crystals such as quartz, tourmaline, and Rochelle salt when mechanical pressure was applied.

In 1881, Gabriel Lippmann theoretically predicted that applying an electric field to these materials would induce mechanical deformation in the opposite direction, a prediction confirmed experimentally by the Curie brothers in the same year. This discovery led to the development of the Lippmann electrometer, one of the first electrostatic measuring instruments.

Practical applications of the piezoelectric effect began to emerge in the early 20th century. In 1917, Paul Langevin developed the first underwater sonar device using piezoelectric crystals. In the following decades, piezoelectric properties were incorporated into a wide range of technologies, including telephone systems, radios, phonographs, and microphones.

Lippmann Electrometer (sciencephotogallery)

Piezoelectric Materials and Working Principle

The common feature of piezoelectric materials is their lack of a center of symmetry in their crystal structure. This asymmetry causes a redistribution of electric charges under applied stress, resulting in the generation of an external electric field.

Natural piezoelectric materials include quartz, berlinite, and Rochelle salt. Among synthetic ceramics, lead zirconate titanate (PZT) alloys are widely used due to their broad range of applications. Additionally, polymers such as zinc oxide (ZnO), barium titanate (BaTiO₃), and PVDF (polyvinylidene fluoride) are also preferred in piezoelectric applications.

When mechanical pressure is applied to these materials, their crystal symmetry is disrupted, altering the orientation of internal dipole moments and causing electric charges to accumulate on the material’s surface. If an alternating voltage is applied, these elements expand and contract periodically. This principle enables their use as actuators in sound generation, motor control, and vibratory systems.

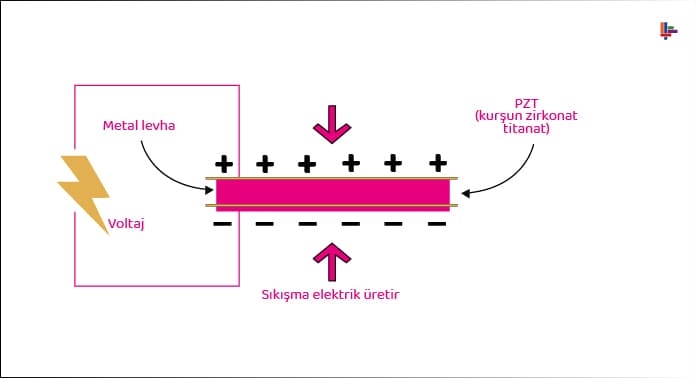

Formation of the Piezoelectric Effect (muhendisbeyinler)

Applications

Electronics and Everyday Use

Piezoelectric materials, despite producing low output voltages, are widely used across numerous fields. One of the best-known examples is lighters. They are also employed in microphones, ultrasonic cleaning devices, and sonar systems to convert sound waves into electrical signals.

Automotive Industry

In automotive technologies, piezoelectric elements are commonly used in fuel injection systems, vibration and noise reduction systems, airbag sensors, tire pressure sensors, and parking sensors.

Medical and Healthcare Devices

Ultrasonic imaging systems, medical cutting devices, and single-use patient monitoring devices operate on the piezoelectric principle. They are especially favored in high-frequency and low-energy applications.

Military and Defense Industry

In defense technologies, the use of piezoelectric actuators in guided munitions and micro aerial vehicles is becoming increasingly widespread. The development of steerable projectiles by DARPA, which incorporate piezoelectric actuators, exemplifies advancements in this field.

Piezoelectric and Wearable Heart Pacemaker

A wearable piezoelectric heart pacemaker developed by Turkish scientist Canan Dağdeviren and introduced in 2014 generates electrical energy from the body’s natural movements to power a cardiac implant. This system integrates a flexible polymer-based material with dynamic organs such as the heart, converting mechanical energy from organ motion into electrical energy. In experimental tests, the device maintained its structural integrity after 20 million bending cycles and holds promise as a future alternative to surgical battery replacements.

Wearable Heart Pacemaker Developed by Canan Dağdeviren (electricport)
