Audi A5 Series (B10 – 3rd Generation)

The Audi A5 Series is a mid-size automobile family positioned in the D segment by the German manufacturer Audi. The first generation was introduced in 2007, followed by the second generation (code F5) in 2016, which received a facelift in 2019. The third generation, coded B10 and unveiled in 2024, is characterized by a modern design language, advanced digital technologies, and electrified powertrain options.

The new A5 is offered in Sedan, Avant (station wagon), and performance-oriented S5 Sedan and S5 Avant body types.

Design and Structural Features

The B10 generation is built on an updated version of the MLB Evo platform. Exterior design elements include an enlarged Singleframe grille, sharp Matrix LED HD headlights, and OLED rear lights. Aerodynamic efficiency has been improved, and body proportions have been optimized.

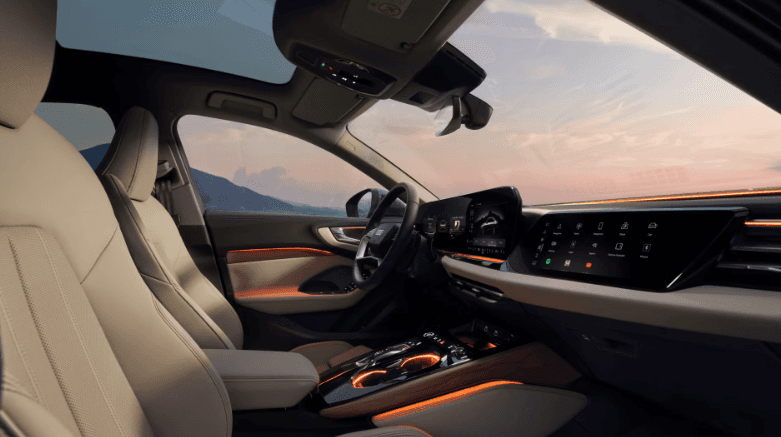

In the interior, an 11.6-inch MMI touchscreen and a 12.3-inch Audi Virtual Cockpit Plus digital instrument cluster are standard. Ambient lighting, a voice assistant with natural language processing, and advanced driver assistance systems contribute to driving comfort.

Body Types and Dimensions

A5 Sedan

• Length: 4,829 mm
• Width: 1,860 mm
• Height: 1,444 mm
• Wheelbase: 2,892 mm
• Luggage capacity: 465 liters (ICE) / 405 liters (TFSI e)

A5 Avant (Station Wagon)

• Length: 4,829 mm
• Width: 1,860 mm
• Height: 1,460 mm
• Wheelbase: 2,892 mm
• Luggage capacity: 495 liters (ICE) / 405 liters (TFSI e)
• Maximum luggage capacity (with rear seats folded): 1,495 liters

S5 Sedan / Avant (Performance Versions)

• Dimensions are largely identical, but with lowered suspension and an S body kit.

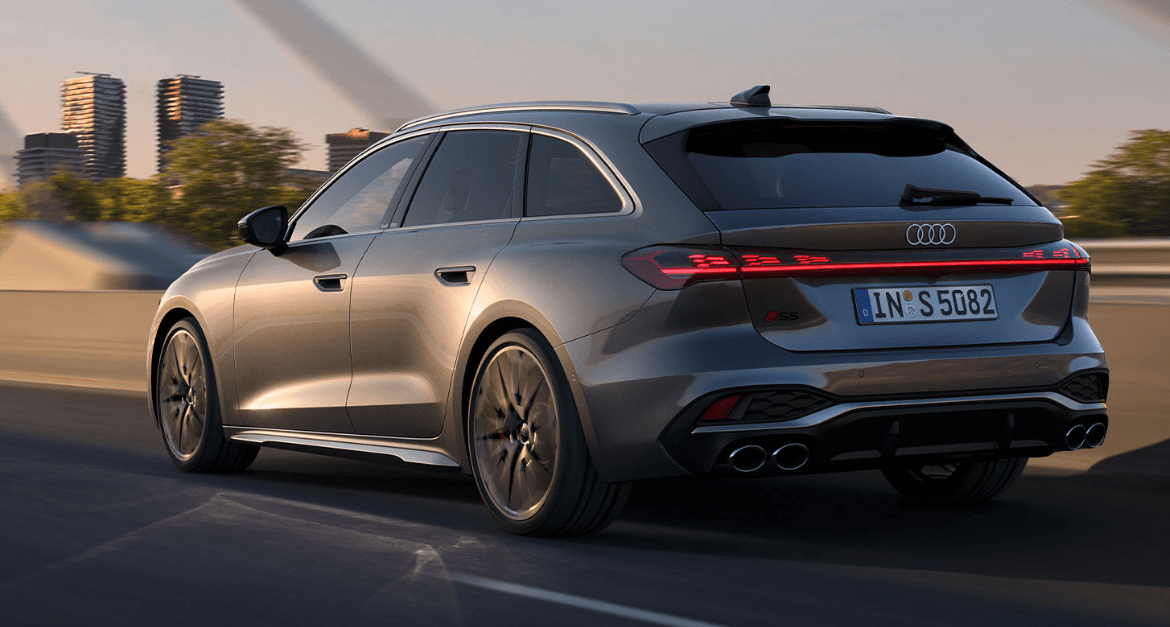

Audi A5 (B10) Series S5 Avant Model (Audi)

Powertrain Options and Performance

Petrol Engines (TFSI)

• 35 TFSI (2.0L 4-cylinder) – 150 hp
• Transmission: 6-speed manual or 7-speed S tronic
• 40 TFSI (2.0L 4-cylinder) – 204 hp
• Transmission: 7-speed S tronic
• 45 TFSI quattro (2.0L 4-cylinder) – 265 hp / 0–100 km/h: 5.5 s
• Drivetrain: quattro AWD

Diesel Engines (TDI)

• 35 TDI (2.0L 4-cylinder) – 163 hp
• Transmission: 7-speed S tronic
• 40 TDI quattro (2.0L 4-cylinder) – 204 hp / 0–100 km/h: 6.9 s
• Drivetrain: quattro AWD

Plug-in Hybrid (TFSI e)

• 50 TFSI e (2.0L TFSI + electric motor) – 299 hp
• Electric range: 61 km (WLTP)
• Battery: 14.1 kWh
• Charging time: 4 hours (AC 3.6 kW)

Performance Version (S5)

• S5 (3.0L V6 TDI) – 347 hp / Torque: 700 Nm / 0–100 km/h: 4.9 s
• Drivetrain: quattro AWD

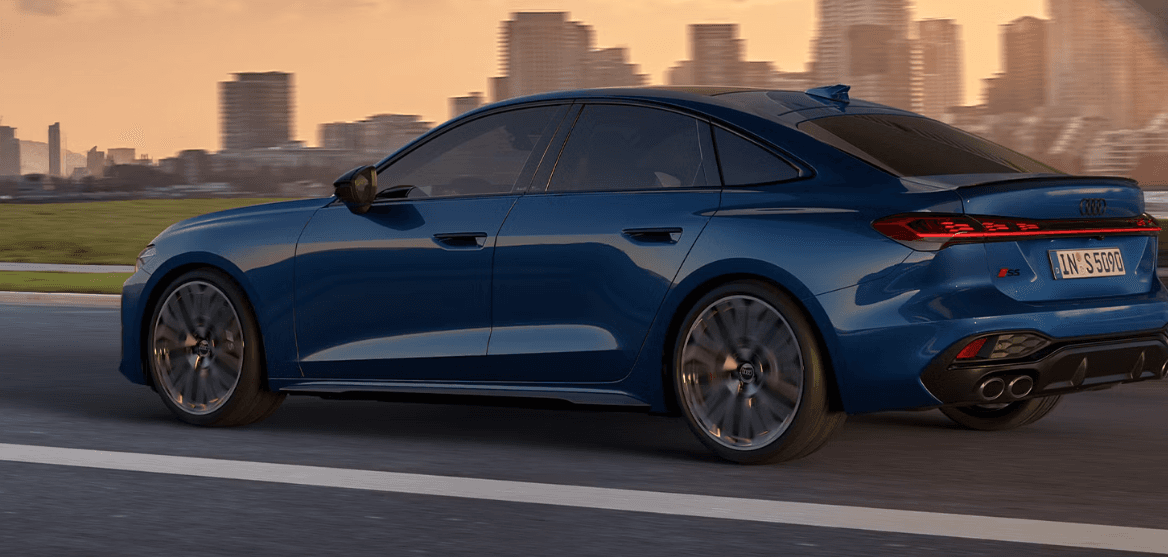

Audi A5 (B10) Series S5 Saloon Model (Audi)

Interior and Equipment

Standard Equipment

• Matrix LED headlights
• 10.1-inch MMI Touch display
• Audi Virtual Cockpit Plus (12.3 inch)
• 3-zone automatic climate control
• 17-inch alloy wheels
• Audi Pre Sense City
• Lane departure warning
• Rear parking sensors

Optional Equipment

• Bang & Olufsen 3D sound system (19 speakers)
• Adaptive cruise control (Stop&Go)
• Head-Up Display
• Panoramic sunroof
• Heated/ventilated front seats
• 19–20 inch alloy wheels
• S line sport suspension (standard with S line trim)
• 360° camera and park assist
• Night vision assist

Audi A5 (B10) Series Console Design (Audi)

Safety and Driver Assistance Systems

In the 2024 Euro NCAP tests, the Audi A5 Series received a 5-star rating.

Standard Systems

• Audi Pre Sense Front
• Lane departure warning
• Traffic sign recognition
• Driver fatigue detection

Optional Systems

• Night vision assist
• 360° surround view system

Production and Market Position

The Audi A5 Series is produced at the Ingolstadt plant in Germany. Its main competitors include the BMW 4 Series, Mercedes-Benz C-Class, and Volvo V60.
