Pressure plate is one of the fundamental components of the clutch system in manual transmission vehicles. This component, which manages the power transfer between the engine and the transmission, enables the vehicle to move, facilitates gear shifts, and ensures a smooth driving experience. Typically composed of a metal plate and friction material, it applies pressure to the clutch disc to transmit engine torque to the transmission.

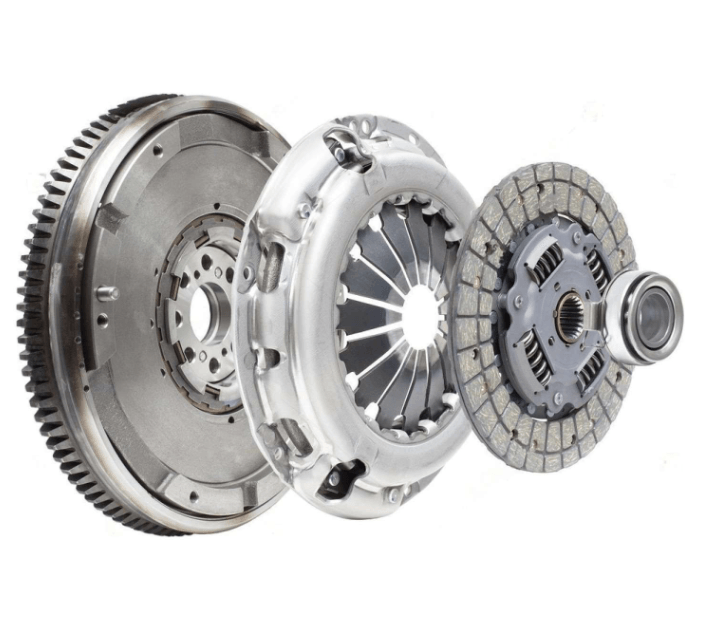

Pressure Plate (AI-Generated Image)

Function and Role

The primary function of the pressure plate is to press the clutch disc against the flywheel, thereby transmitting the engine’s Dönmə motion to the transmission. When the clutch pedal is depressed, the pressure plate releases this force, allowing the disc to disengage and enabling gear changes. When the pedal is released, springs reapply pressure, restoring power transmission.

Thanks to this mechanism:

• Gear shifts become easier,
• Jerking during stop-and-go driving is reduced,
• Idle operation of the vehicle is maintained,
• Acceleration and driving comfort are optimized,
• The vehicle is enabled to move from a stationary position.

Structural Features

Pressure plates are manufactured using steel and specialized friction materials. Their resistance to heat and wear ensures the clutch system operates reliably and efficiently over its long lifespan. Reinforced pressure plates have been developed for applications requiring higher performance.

Failure Symptoms

Over time, the pressure plate may wear out or suffer structural damage. Major fault symptoms include:

• Clutch slippage: Engine RPM increases without a corresponding increase in vehicle speed,
• Difficult gear shifting: Gears are hard to engage even when the pedal is fully depressed,
• Vibration and shaking: Shuddering occurs during stop-and-go driving or when releasing the clutch pedal,
• Unusual noises: Squeaking, grinding, or clicking sounds,
• Burning smell: A distinct odor, particularly noticeable during heavy clutch use under load,
• Reduced acceleration and poor traction,
• Hardness or excessive free play felt in the clutch pedal.

When these symptoms occur, the entire clutch system must be inspected and the pressure plate replaced if necessary.

Causes of Failure

Main causes that can lead to premature pressure plate failure:

• Incorrect clutch usage (half-clutching, engine braking, etc.),
• Frequent stop-and-go driving in traffic,
• Idling on inclines using the clutch pedal,
• Over-tightening or excessive loosening of the clutch cable,
• Use of low-quality or non-original pressure plates not matched to the vehicle,
• Improper installation or incorrect assembly of the spring system.

Pressure Plate Lifespan

The lifespan of pressure plates can vary between 40,000 km and 100,000 km depending on driving style and vehicle usage conditions. In vehicles driven calmly and regularly, the pressure plate can last significantly longer.

Replacement and Maintenance

To replace the pressure plate, the transmission is typically removed to access the clutch system. The replacement process includes the following steps:

1. Inspection of the clutch system,
2. Removal of the transmission,
3. Inspection of the flywheel and pilot bearing,
4. Installation of a new clutch disc and pressure plate,
5. Proper adjustment and reassembly of the system.

During pressure plate replacement, the clutch disc and bearings should also be inspected and replaced if necessary.

The pressure plate plays a critical role in power transmission in manual transmission vehicles. Regular inspection of the pressure plate is recommended to ensure both comfortable and safe driving.
