Delta IV Heavy is a heavy-lift launch system developed and operated by United Launch Alliance (ULA), a company based in the United States. The rocket is primarily designed to carry out high-orbit missions for institutions such as the U.S. Department of Defense, the National Reconnaissance Office (NRO), and NASA. As the most powerful member of the Delta IV family, this system is optimized to transport heavy payloads to geosynchronous orbit and beyond.

Historical Development Process

The Delta IV program was initiated by Boeing in the late 1990s under the U.S. Air Force’s Evolved Expendable Launch Vehicle (EELV) program. In 2006, Boeing's Delta program merged with Lockheed Martin's Atlas program to form ULA. The first successful launch of the Delta IV Heavy configuration was carried out in 2004.

^{Launched to Carry NASA’s Orion Spacecraft on an Uncrewed Test Flight into Earth Orbit (NASA)}

Technical Specifications

Structural Configuration

Delta IV Heavy consists of a total of three liquid-fueled first stage modules called Common Booster Cores (CBCs). One of these modules is located in the center, while the other two are attached laterally to provide additional thrust. This configuration enables high lift capacity through the synchronized operation of three engines of similar diameter.

Propulsion Systems

• Engines: Each CBC is equipped with an RS-68A liquid-fueled engine. The RS-68A is a non-reusable rocket engine that uses hydrogen and liquid oxygen. Each engine produces approximately 3,137 kN (kilonewtons) of thrust.
• Second Stage: The rocket's second stage contains the Delta Cryogenic Second Stage (DCSS) system. This stage uses a single RL10B-2 engine and also operates on liquid hydrogen and liquid oxygen.

Payload Capacity

Delta IV Heavy’s payload capacity is as follows:

• Low Earth Orbit (LEO): ≈ 28,790 kg
• Geostationary Transfer Orbit (GTO): ≈ 14,220 kg
• Geosynchronous Orbit (GEO) or beyond: Varies depending on the mission profile

Dimensions and Mass

• Total Height: Approximately 72 meters
• Launch Mass: Approximately 733 tons
• Diameter: 5 meters per individual CBC

Mission Profiles and Areas of Use

Delta IV Heavy has been preferred especially for missions requiring high precision. These missions include intelligence satellites (e.g., NROL missions), space telescopes, and deep space missions. The rocket typically launches from Cape Canaveral Space Force Station (LC-37B) and Vandenberg Space Force Base (SLC-6).

Some notable missions include:

• NROL-71: A reconnaissance satellite mission for the National Reconnaissance Office
• Parker Solar Probe (2018): NASA’s spacecraft operating closest to the Sun
• Orion EFT-1 (2014): The first test mission for NASA’s crewed spaceflight project

Operational Limitations of Delta IV Heavy

Despite its high payload capacity, Delta IV Heavy faces operational limitations due to its lack of reusability and relatively high cost. Although the RS-68A engines produce high thrust, they are considered less efficient compared to competing systems like SpaceX’s Merlin or Raptor engines. Furthermore, with the introduction of ULA’s next-generation Vulcan Centaur rocket, Delta IV Heavy is gradually being phased out.

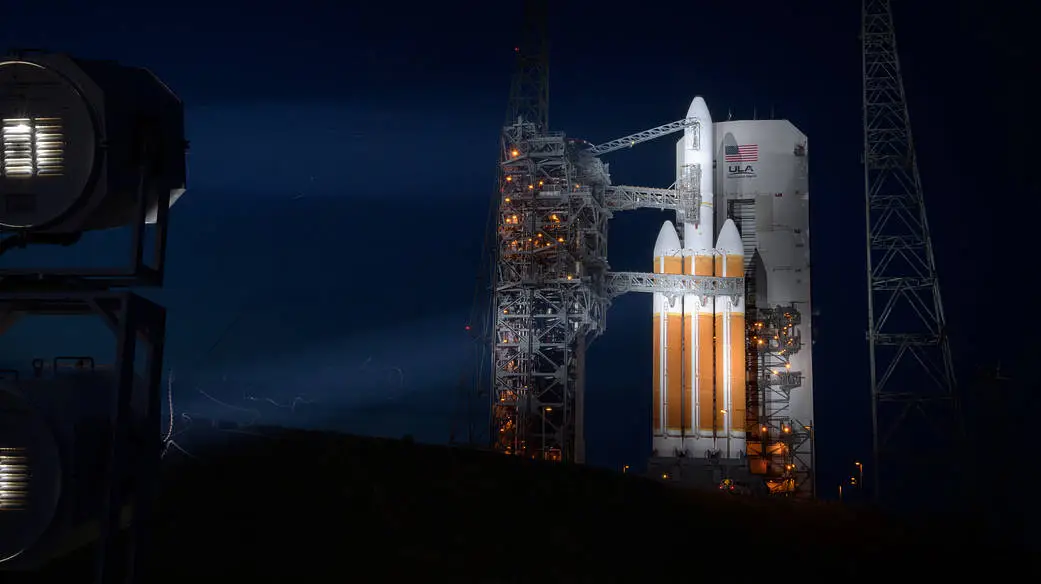

^{August 10, 2018: Seen Shortly After the Mobile Service Tower Was Rolled Back at Launch Complex 37 at Cape Canaveral Air Force Station (NASA)}

Cost and Economic Factors

The estimated cost of a single Delta IV Heavy launch ranges between 350 to 400 million USD, depending on the mission. This cost has reduced its competitiveness, particularly with the rise of reusable rocket technologies. While its reliability has ensured continued use for institutions like NASA and the NRO, it has not been a competitive option in the commercial launch market.

Delta IV Heavy and Its Future

ULA has announced that Delta IV Heavy will be completely retired by the mid-2020s and replaced by the Vulcan Centaur system. The Vulcan rocket aims to deliver higher performance at a lower cost. After its final launches, it can be said that Delta IV Heavy played a temporary but strategically significant role in the history of space vehicle transportation.

Delta IV Heavy is a heavy-lift rocket system developed for specific mission profiles, particularly in terms of security and payload capacity. With the advancement of rocket technologies, it is being replaced by more modern and competitive systems.
