Electric Motors

Electric motors are electromechanical devices that convert electrical energy into mechanical energy. These devices have become one of the fundamental building blocks of modern industry, transportation, and daily life, with applications spanning from household appliances and the automotive industry to industrial automation systems and robotics. Fundamentally, these machines transform electrical energy into rotational mechanical motion based on physical and engineering principles such as electromagnetic induction, Lorentz force, electrical commutation, and control theory.

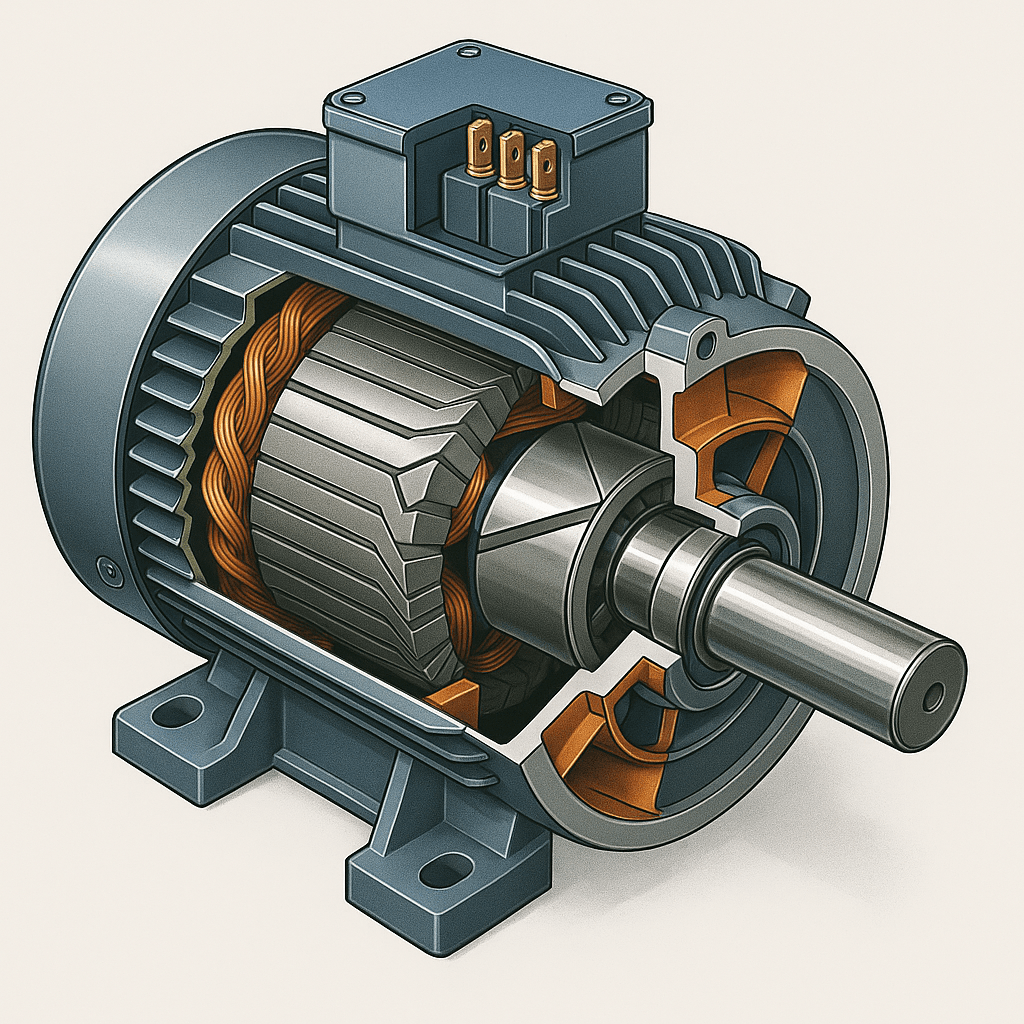

^{Combination of internal and external housing structure of an electric motor showing industrial design and cooling surfaces. (Artificial Intelligence)}

The history of electric motors has progressed in parallel with the development of electromagnetic theory. The foundations were laid in 1821 when Michael Faraday demonstrated that an electric current interacting with a magnetic field could produce rotational motion. In 1832, William Sturgeon developed the first practical DC motor, and in 1873, Zénobe Gramme introduced the first commercially viable rotary electric motor. At the beginning of the 20th century, Nikola Tesla’s motors based on AC systems began to gain widespread industrial adoption. Over time, more advanced and efficient versions of these motors have been equipped with electronic drives, control circuits, and artificial intelligence-based control systems.

The operation of electric motors is based on the Lorentz force generated when an electric current passing through a conductor interacts with a magnetic field. This force produces torque, causing the motor’s rotor to rotate. In DC motors, the direction of current is reversed via a commutator and brushes, while AC motors use sinusoidal excitation and a rotating magnetic field. Brushless motors and modern synchronous motors implement this principle electronically.

^{Stepper motor. Clear separation of components such as rotor, stator, magnets, windings, and bearings facilitates understanding of the motor’s internal dynamics. (Artificial Intelligence)}

Electric motors fundamentally consist of the following components:

• Stator (Stationary Part): Generates a fixed magnetic field.
• Rotor (Rotating Part): Rotates within the stator’s magnetic field.
• Bearings: Enable smooth and balanced rotation of the rotor.
• Brushes and Commutator: (In DC motors) Reverse the current direction to maintain continuous rotation.

DC motors operate on direct current. Their main types include:

• Brushed DC Motors: Have a simple structure and operate using a commutator and brushes. Require maintenance due to wear.
• Brushless DC Motors (BLDC): Controlled by electronic switches instead of a commutator. Operate quietly and offer high efficiency.
• Permanent Magnet DC Motors: Feature permanent magnets in the rotor. Their compact design makes them suitable for portable devices.

Applications: Automotive systems, computer fans, portable devices, robotics.

^{Various motors used in different electronic and mechatronic applications. (Artificial Intelligence)}

AC motors operate on alternating current and are divided into two main categories:

• Asynchronous Motors (Induction): The most commonly used motor type. The rotor is induced by the rotating magnetic field of the stator. Economical and durable.
• Synchronous Motors: The rotor rotates at the same speed as the stator’s magnetic field. Preferred in applications requiring precise speed control.

In addition:

• Universal Motors: Can operate on both AC and DC. Commonly found in small household appliances.
• Doubly Fed Motors: Both stator and rotor are energized. Used in high-power systems.

^{Images of various motor types including stepper motors, servo motors, brushed DC motors, and brushless (BLDC) motors. (Artificial Intelligence)}

• Stepper Motors: Rotate in angular steps. Used in CNC machines and 3D printers.
• Servo Motors: Incorporate feedback systems to provide precise position control.
• Switched Reluctance Motors (SRM): Feature toothed rotor and stator structures. Difficult to control but robust.
• Direct Drive Motors: Do not require a gearbox. Common in electric vehicles and wind turbines.
• Axial Flux Motors: Disk-shaped. Provide high torque density.

Drive circuits are required to control motors. In DC motors, Pulse Width Modulation (PWM) is used, while in AC motors, advanced methods such as voltage/frequency control (V/f), field-oriented control (FOC), or direct torque control (DTC) are applied. Modern motor drives are supported by microcontrollers, FPGAs, or DSPs. Features such as energy recovery, integration with smart grids, and AI-based predictive maintenance have become standard.

The main losses affecting the efficiency of electric motors are:

• Copper Losses: Result from current flow through the windings.
• Iron Losses: Include hysteresis and eddy current losses.
• Mechanical Losses: Arise from bearing friction and air resistance.
• Electronic Losses: Originate from drive circuits.

IE2, IE3, and IE4 efficiency classifications are defined by international standards. As of 2021, the use of IE3 motors has become mandatory in the European Union and Türkiye. High-efficiency motors provide both energy savings and reduced carbon emissions.

^{Clear separation of components such as rotor, stator, magnets, windings, and bearings facilitates understanding of the motor’s internal dynamics. (Artificial Intelligence)}

• Industrial Automation: Conveyors, pumps, compressors, presses.
• Household Appliances: Blenders, washing machines, hair dryers.
• Transportation: Electric vehicles, trains, tram systems.
• Defense Industry: Unmanned ground and aerial vehicles.
• Medical Devices: Submersible pumps, surgical robots.
• Renewable Energy: Wind turbines, hydroelectric power plants.

• NdFeB Magnets: Widely adopted in BLDC motors. Offer compactness and high torque.
• AI-Assisted Systems: Fault prediction, load analysis, automatic reconfiguration.
• Axial Flux Technology: Preferred in electric vehicles due to advantages in lightness and performance.
• Sustainability: Increasing use of recyclable materials and greener manufacturing processes.

Electric motors are versatile technologies that meet modern society’s needs for energy efficiency, sustainability, and automation. Thanks to evolving engineering approaches, these motors are becoming more powerful, quieter, smarter, and more environmentally friendly.
