Enigma Machine

The Enigma machine is an electromechanical encryption device invented in the early 20th century and extensively used by Nazi Germany during World War II. Due to its complex structure and interchangeable components, it could generate hundreds of billions of combinations and was regarded as the most secure communication tool of its time. However, the Allies deciphered the machine’s logic, significantly altering the course of the war.

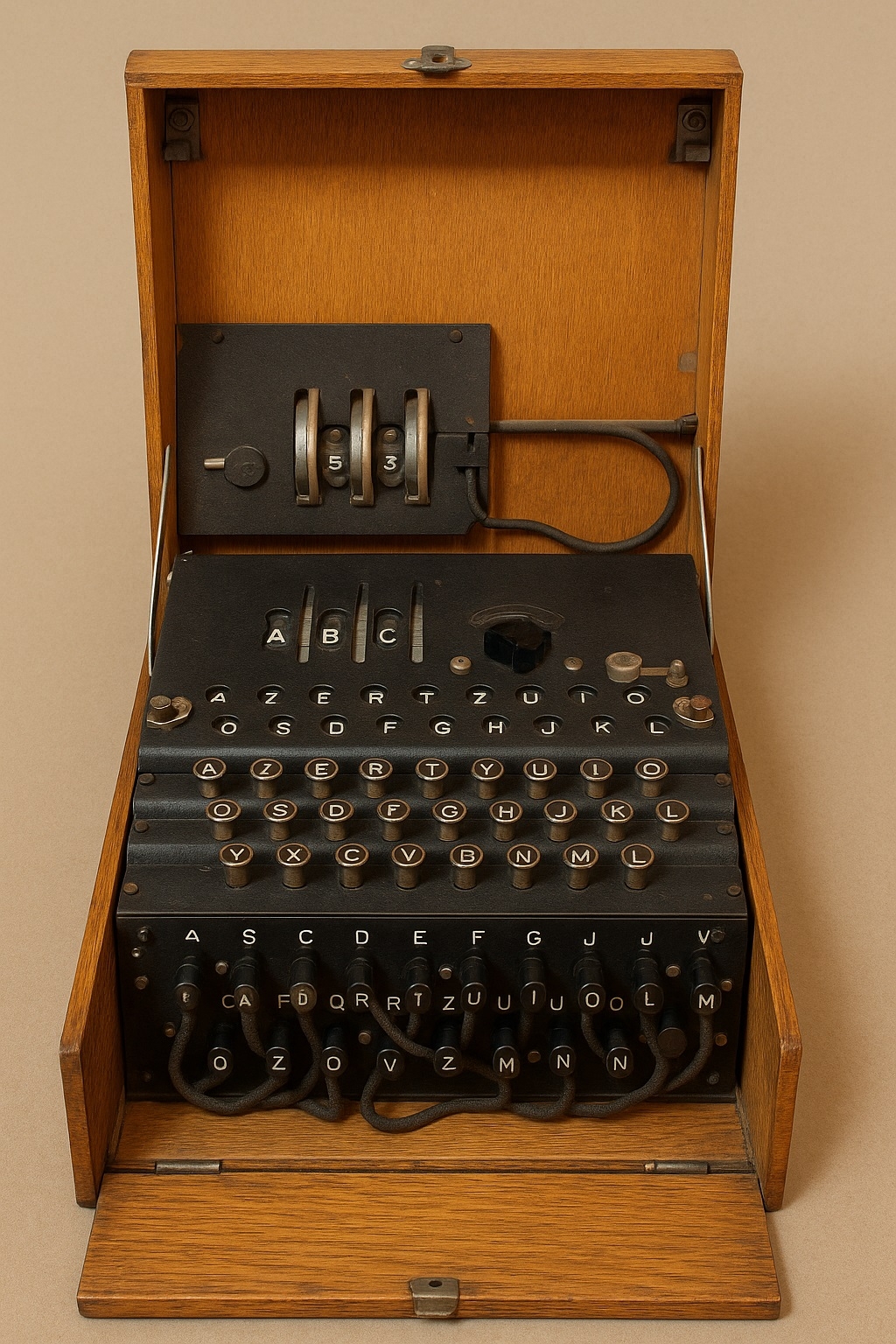

The Enigma Machine (Enigma Museum)

History

The first version of Enigma was designed in 1918 by German engineer Arthur Scherbius and patented in 1919. Initially produced for commercial purposes, it was acquired by the German military in the late 1920s and adopted for military encryption. Throughout the 1930s, the German Air Force (Luftwaffe), Navy (Kriegsmarine), and Army (Heer) developed their own variants and deployed the machine for operational ciphering.

Technical Structure and Operating Principle

The Enigma machine accepts letter input from the user and converts each letter into an encrypted letter via electromechanical means. Encryption is achieved through the following key components:

• Keyboard

Letters are entered via a QWERTZ keyboard.

• Rotors (Walzen)

Each rotor contains unique wiring paths for all 26 letters. Every key press causes the rotors to rotate, continuously altering the encryption combination. A typical Enigma machine uses three or four rotors.

• Reflector (Reflector)

Redirects the encryption signal back through the rotors, enabling reciprocal encryption. This ensures that the same settings used for encryption can also be used for decryption.

• Plugboard (Steckerbrett)

Additional to the rotor encryption, it swaps pairs of letters. This greatly increases the number of possible combinations.

• Lamp Panel

Indicates which letter the input letter has been encrypted into.

Thanks to this mechanism, the number of possible combinations generated by Enigma exceeds trillions. For example, in a three-rotor model, considering rotor order, initial positions, and plugboard settings, approximately 150 quadrillion different configurations are possible.

Enigma Machine Diagram

Enigma Machine Diagram (Enigma Museum)

(43) Light Bulbs – Lamps

(44) Rotor Contacts – Rotor Contacts

(45) Bypass Contacts for Unused Jack Panel Sockets – Bypass Contacts for Unused Jack Panel Sockets

(46) Key Contacts N. O. (Normally Open) – Normally Open Key Contacts

(47) Key Contacts N. C. (Normally Closed) – Normally Closed Key Contacts

(48) Lamp Contacts – Lamp Contact Points

(49) Lamp Contact Springs – Lamp Contact Springs

(50) Jacks in Patch Panel – Jacks in the Plugboard

Simplified Enigma Model (USNA)

Cryptanalysis and Decryption

The first successful decryption of Enigma was achieved in the 1930s by Polish mathematicians, notably Marian Rejewski. Poland shared its intelligence breakthroughs with Britain and France, providing a crucial advantage before the war.

Later, at Bletchley Park in Britain, Alan Turing, Gordon Welchman, and other cryptologists successfully broke Enigma codes using electromechanical machines they called “Bombes.” This breakthrough gave the Allies a major intelligence advantage and is estimated to have shortened the war by approximately two years.

Modern Interpretation and Significance

Today, the Enigma machine is not only regarded as an encryption device but also as the foundation of modern cryptography and computer science. Alan Turing’s contributions during this period significantly influenced the emergence of the modern computer concept.
