Gramophone

History, Development, and Technical Features

The gramophone is one of the first devices to play sound recordings mechanically. It amplifies sound by tracing the grooves on a disc with a needle. Developed at the end of the 19th century as a significant invention in sound recording and reproduction technology, the gramophone was invented by Emile Berliner and first patented in 1887. Unlike devices such as the phonograph and graphophone, the gramophone operates on the principle of recording sound vibrations in a horizontal plane onto a disc. This innovation resulted in more durable sound recordings and provided a format suitable for mass production, playing a crucial role in the development of the music industry.

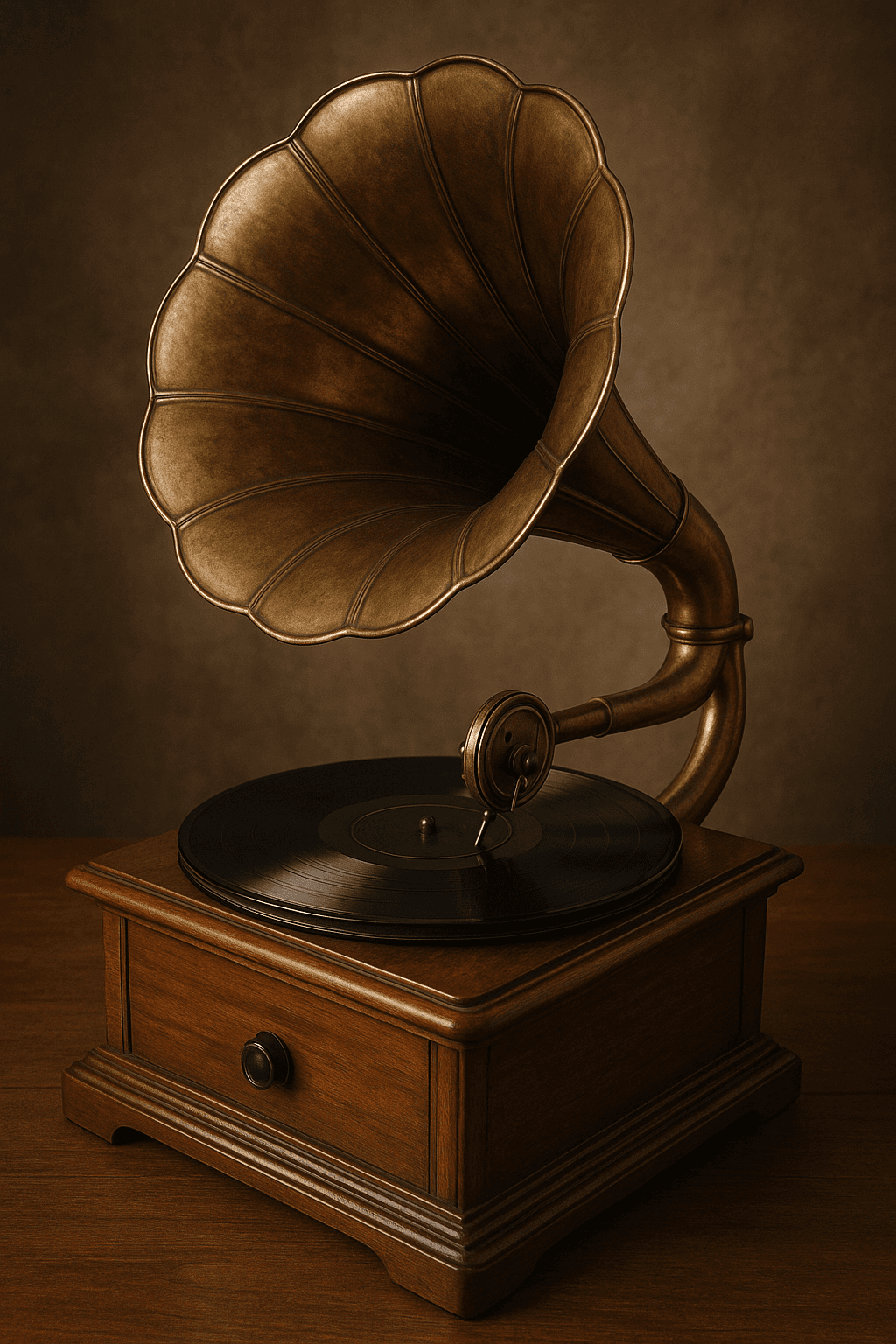

Gramophone (Anadolu Agency)

Early Sound Recording Devices and the Development of the Phonograph

The origins of sound recording began in 1877 with Thomas Edison’s invention of the phonograph. The phonograph recorded sound vibrations using a vertical cutting method onto tin-foil-covered cylinders. However, this method resulted in recordings with a short lifespan and poor sound quality. To address these issues, Chichester Bell and Charles Tainter developed the graphophone in 1887. The graphophone operated on a principle similar to Edison’s phonograph but aimed to produce more durable recordings using wax-coated cylinders.

Emile Berliner and the Invention of the Gramophone

Emile Berliner analyzed the shortcomings of the phonograph and graphophone and began developing a different sound recording system. Berliner’s gramophone recorded sound waves using a lateral cutting method onto discs. This method produced recordings that were more durable and easier to manufacture compared to the vertical cutting method. Furthermore, the disc format enabled recordings to be duplicated and mass-produced. This development laid the foundation for music recordings to become commercial products.

Emile Berliner with a model of the first gramophone machine (Science and Media Museum)

Technical Structure and Operating Principle of the Gramophone

The gramophone consists fundamentally of a rotating turntable, a needle, a tonearm, and a speaker. As the disc rotates on the turntable, the needle follows the grooves on its surface. These movements are converted into vibrations transmitted through the tonearm to the speaker, producing sound. Early gramophones were entirely mechanical; in later periods, electric motors and amplifiers were introduced to improve sound quality.

Development of the Gramophone and the Record Industry

With the invention of the gramophone, record production accelerated rapidly. The earliest records were discs rotating at 78 revolutions per minute, typically made from shellac. In the 1930s, vinyl, a more flexible and durable material, began to be used. During this period, the diameter and rotational speed of records were standardized. Records rotating at 33 1/3 RPM and 45 RPM enabled the recording of longer musical pieces and contributed to the popularization of music albums.

Electric Gramophones and the Modern Era

Electric gramophones were introduced to the market from the 1920s onward. These devices, equipped with magnetic needles and amplifiers, achieved significant improvements in sound quality. Additionally, gramophones integrated with radios helped music reach broader audiences. In the 1950s and 1960s, portable turntables and automatic record changers became widespread, making gramophone use more practical.

Gramophone (Anadolu Agency)

Cultural Impact and Contemporary Relevance of the Gramophone

The gramophone went beyond being merely a sound recording device; it fundamentally transformed music listening habits. Throughout the 20th century, gramophones used in homes and public spaces encouraged the practice of record collecting. Today, despite the widespread adoption of digital music technologies, gramophones continue to attract interest due to their nostalgic and aesthetic value. Moreover, vinyl records maintain their popularity among collectors and music enthusiasts.
