Ilyushin Il-76

The Ilyushin Il-76 is a four-engine, multi-role strategic transport aircraft developed by the Ilyushin design bureau. Originally designed and produced in the Soviet Union, it remains in service today in Russia and other countries. It is known for its resilience under harsh conditions, heavy payload capacity, and ability to operate from unprepared runways. The Il-76 is used for both military and civilian purposes and plays a significant role in firefighting, search and rescue, and emergency operations.

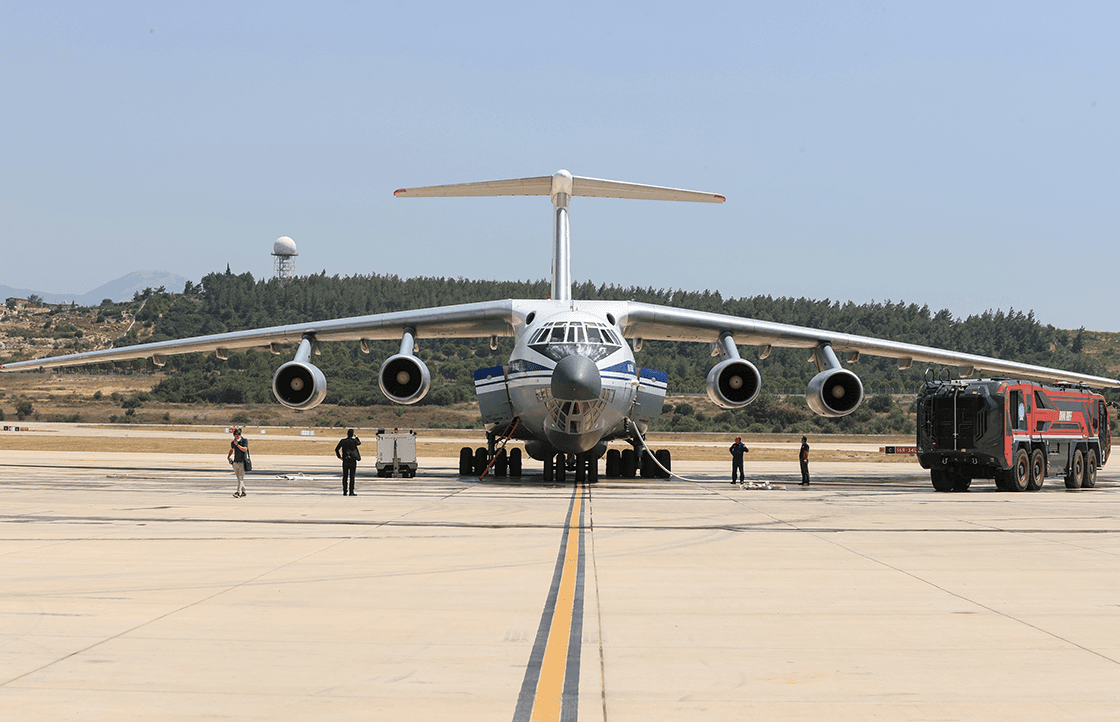

^{Ilyushin Il-76 (}Pixabay⁾

The development of the Il-76 began in the late 1960s when the Soviet Air Forces (VVS) required a new strategic transport aircraft to replace the Antonov An-12. The Il-76 was designed to offer higher speed, greater range, and increased payload capacity. The first prototype made its maiden flight in 1971 and entered service in 1974.

The Il-76 features a high-wing, T-tail, and four-engine configuration. The D-30KP turbofan engines provide the aircraft with high speed and extended range. The cargo compartment is designed to carry heavy and bulky loads. A rear loading ramp and an internal crane system facilitate loading and unloading operations. The Il-76 is capable of operating from unprepared runways.

Several variants of the Il-76 have been produced:

• Il-76: The initial production model.
• Il-76M: An improved version.
• Il-76MD: A longer-range variant.
• Il-76TD: The civilian version.
• Il-76MF/TF: Extended-fuselage variants.
• A-50: An airborne early warning and control (AWACS) aircraft based on the Il-76 platform.

• Crew: 7
• Length: 46.59 m
• Wingspan: 50.5 m
• Height: 14.76 m
• Engines: 4 × Soloviev D-30KP turbofans
• Maximum Speed: 900 km/h
• Range: 7,300 km (4,400 km with maximum payload)
• Maximum Takeoff Weight: 190 tonnes
• Payload Capacity: 48 tonnes

The Il-76 is widely used for both military and civilian purposes:

• Strategic and tactical transport
• Airborne troop and military personnel transport
• Transport of heavy and bulky cargo
• Emergency and humanitarian aid operations
• Firefighting (modified variants)
• Airborne early warning and control (A-50)
