Kawasaki Ninja H2

Kawasaki Ninja H2 is a hypersport motorcycle produced by Kawasaki Heavy Industries (KHI), featuring a 998 cm³ inline-four supercharged engine architecture. Designed to surpass the performance limits of standard atmospheric engines in the motorcycle industry, this model is engineered with high-power output and aerodynamic efficiency as core priorities. The base model of the series, the Ninja H2, forms a product family alongside the H2R, produced exclusively for closed-circuit use, and the H2 SX, adapted for long-distance touring standards^【1】.

At the heart of the Ninja H2 series lies the supercharging technology, developed through a collaborative engineering effort between Kawasaki Heavy Industries’ subsidiary departments: the Gas Turbine and Machinery Company, the Aerospace and Space Company, and the Corporate Technology Division^【2】. The system’s centrifugal supercharger unit compresses incoming air up to 2.4 times atmospheric pressure before delivering it to the combustion chamber.

^{Compact supercharger unit developed in-house by Kawasaki Heavy Industries to power the Ninja H2 series. (}Kawasaki⁾

The impeller used in this system features a complex three-dimensional structure machined from forged aluminum billets on five-axis CNC machines. A planetary gear mechanism transmits power from the crankshaft to the impeller, enabling it to rotate at 9.2 times the crankshaft speed. The impeller reaches approximately 130,000 rpm, pumping over 200 liters of air per second into the engine. Thanks to the design’s high thermal efficiency, compressed air experiences minimal temperature rise, eliminating the need for a bulky intercooler and enabling a compact engine layout. For power transmission, a "dog-ring" type transmission, commonly used in MotoGP and Formula 1 vehicles, ensures seamless and rapid gear shifts^【3】.

The Ninja H2 is the street-legal standard variant of the series. To transfer the high torque and power output of the supercharged engine to the road, the motorcycle employs a high-tensile steel trellis frame. The suspension system features KYB AOS-II (Air-Oil Separating) inverted forks with 43 mm diameter and adjustable compression and rebound damping at the front, and an Öhlins TTX36 gas-charged shock absorber operating under the Uni-Trak architecture at the rear^【4】.

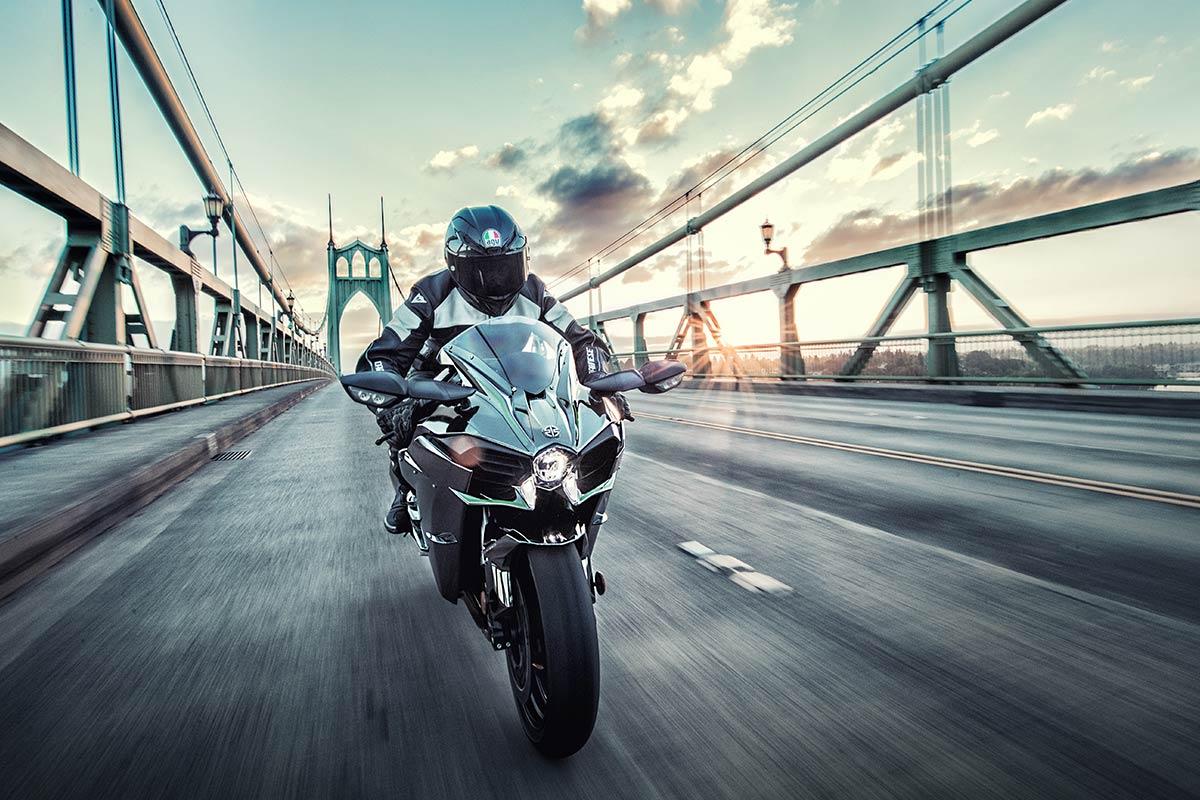

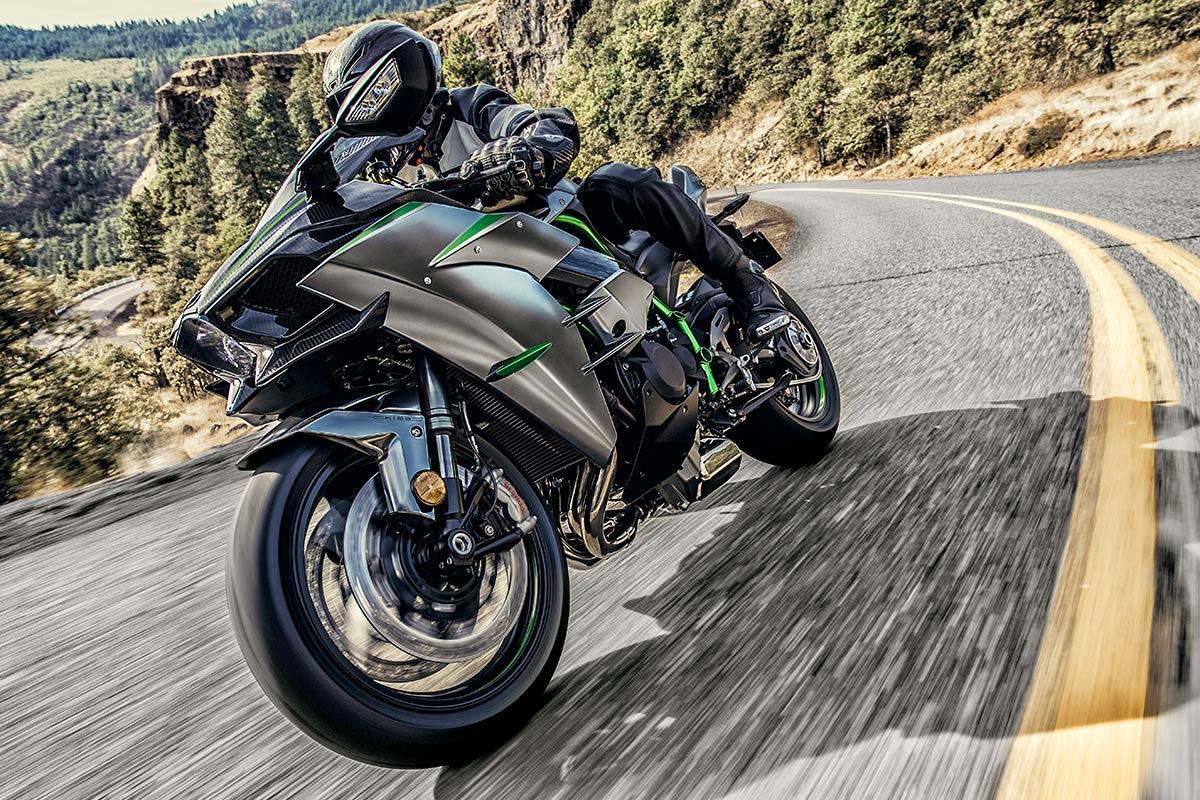

^{Kawasaki Ninja H2 (}Kawasaki⁾

The braking system consists of radial-mount Brembo Stylema monobloc calipers with four pistons paired with 330 mm dual semi-floating discs. Mirrors designed by KHI’s Aerospace Division feature aerodynamic wing profiles (Gurney flaps) that generate downforce. Additionally, a proprietary self-healing silver-mirror paint technology is applied to the fairings. Bosch-generated Inertial Measurement Unit (IMU)-supported electronic systems include Kawasaki Intelligent Brake System (KIBS), Kawasaki Launch Control Mode (KLCM), a 9-mode Kawasaki Traction Control System (KTRC), and Kawasaki Engine Brake Control (KEBC)^【5】.

The Ninja H2R is a version developed by Kawasaki to push hardware and performance limits beyond legal road restrictions, intended exclusively for closed-course use. Although its engine architecture is identical to the H2, through ECU software and technical modifications, it produces 310 PS (228.0 kW) at 14,000 rpm as standard, rising to 326 PS (240.0 kW) with Ram Air pressure, and delivers a maximum torque of 165.0 Nm at 12,500 rpm^【6】. Certain tests have recorded speeds exceeding 400 km/h.

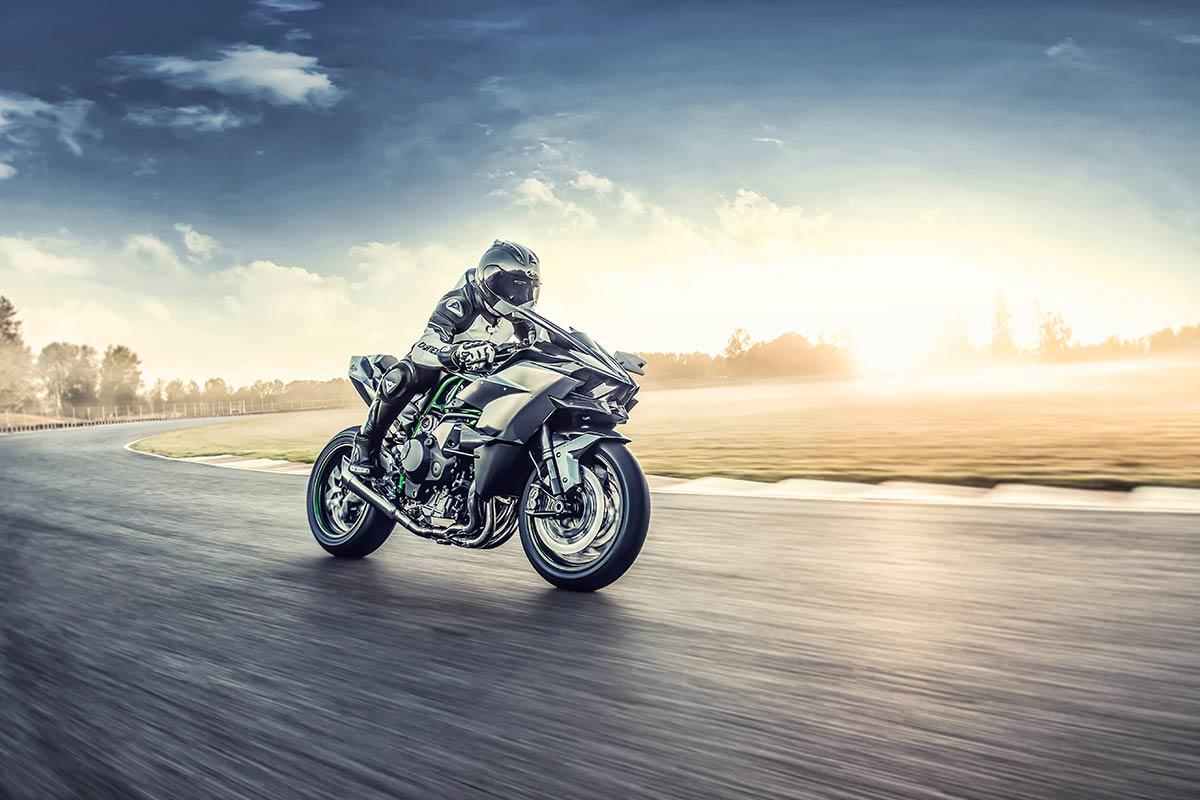

^{Kawasaki Ninja H2R (}Kawasaki⁾

The H2R model lacks mirrors or signal lighting; these are replaced by carbon fiber reinforced plastic (CFRP) aerodynamic winglets integrated into the front fairing. These winglets enhance stability at high speeds by ensuring front-wheel contact with the road. The exhaust system is entirely manufactured from titanium and features a megaphone-style straight-pipe muffler design. Riding position and ergonomics have been modified with adjustable hip support pads to support the rider against high acceleration forces^【7】.

The Ninja H2 SX is a sport touring model that combines supercharged engine technology with long-distance comfort and practicality. The engine in this model has been recalibrated as a "Balanced Supercharged Engine" to enhance fuel efficiency and low-to-mid-range throttle response. For touring comfort, it integrates an extended front windscreen, a larger fairing structure, widened seats suitable for passengers, and a clean-mount system for easily removable side panniers^【8】.

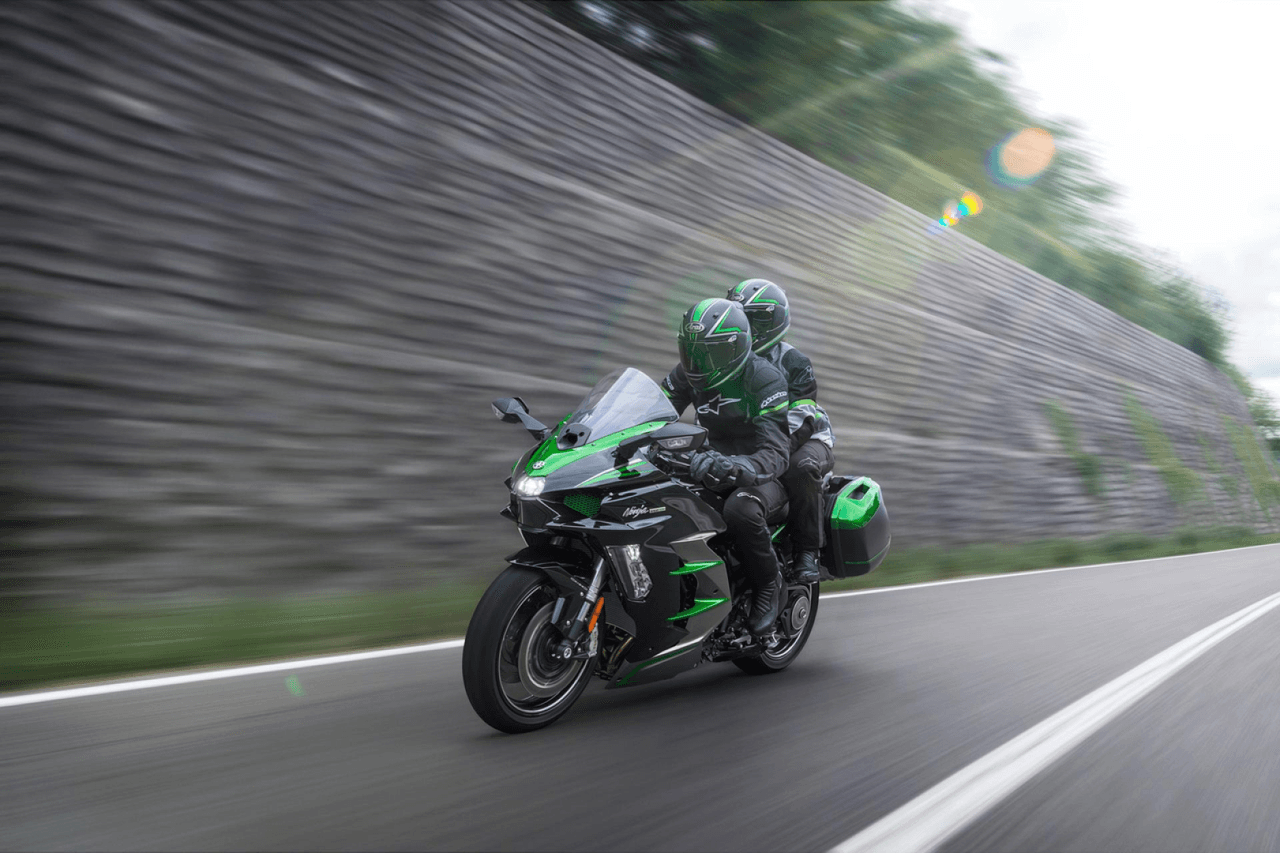

^{Kawasaki Ninja H2 SX SE (}Kawasaki⁾

The H2 SX is the first motorcycle in the Kawasaki lineup to feature Bosch radar-supported Advanced Rider Assistance Systems (ARAS). This system integrates automotive-grade active safety aids including Adaptive Cruise Control (ACC), Forward Collision Warning (FCW), and Blind Spot Detection (BSD). Additionally, the higher-spec Ninja H2 SX SE variant comes standard with Kawasaki Electronic Control Suspension (KECS) featuring Showa Skyhook EERA technology and Brembo Stylema calipers. A 6.5-inch full-color TFT display integrates with the "Kawasaki SPIN" infotainment system for smartphone connectivity^{【9】【10】}.

The Kawasaki Ninja H2 submodels exhibit distinct differences in engine output, weight, and chassis tuning according to their intended use:

All models feature a liquid-cooled, four-stroke, 998 cm³ inline-four supercharged engine. The compression ratio is 8.5:1 for the H2 (Street) model, 8.3:1 for the H2R (Track) model, and increased to 11.2:1 in the H2 SX (Touring) variant to support thermal and fuel efficiency. With Ram Air effect, the H2R achieves 326 PS and 165.0 Nm torque, while the H2 SX delivers 210 PS at 11,000 rpm and 137.3 Nm torque at 8,500 rpm with Ram Air^{【11】【12】}.

The track-focused H2R has a dry weight of 216 kg and a fuel capacity of 17.0 liters. The H2 SX, designed to meet touring requirements (expanded fairing, side pannier mechanisms, electronic systems), reaches a dry weight of 266 kg and features a larger 19.0-liter fuel tank. The street version, the H2, sits between them with a curb weight of approximately 238 kg (524.8 lb) and a 4.5-gallon (approximately 17 liter) fuel tank^{【13】【14】}.

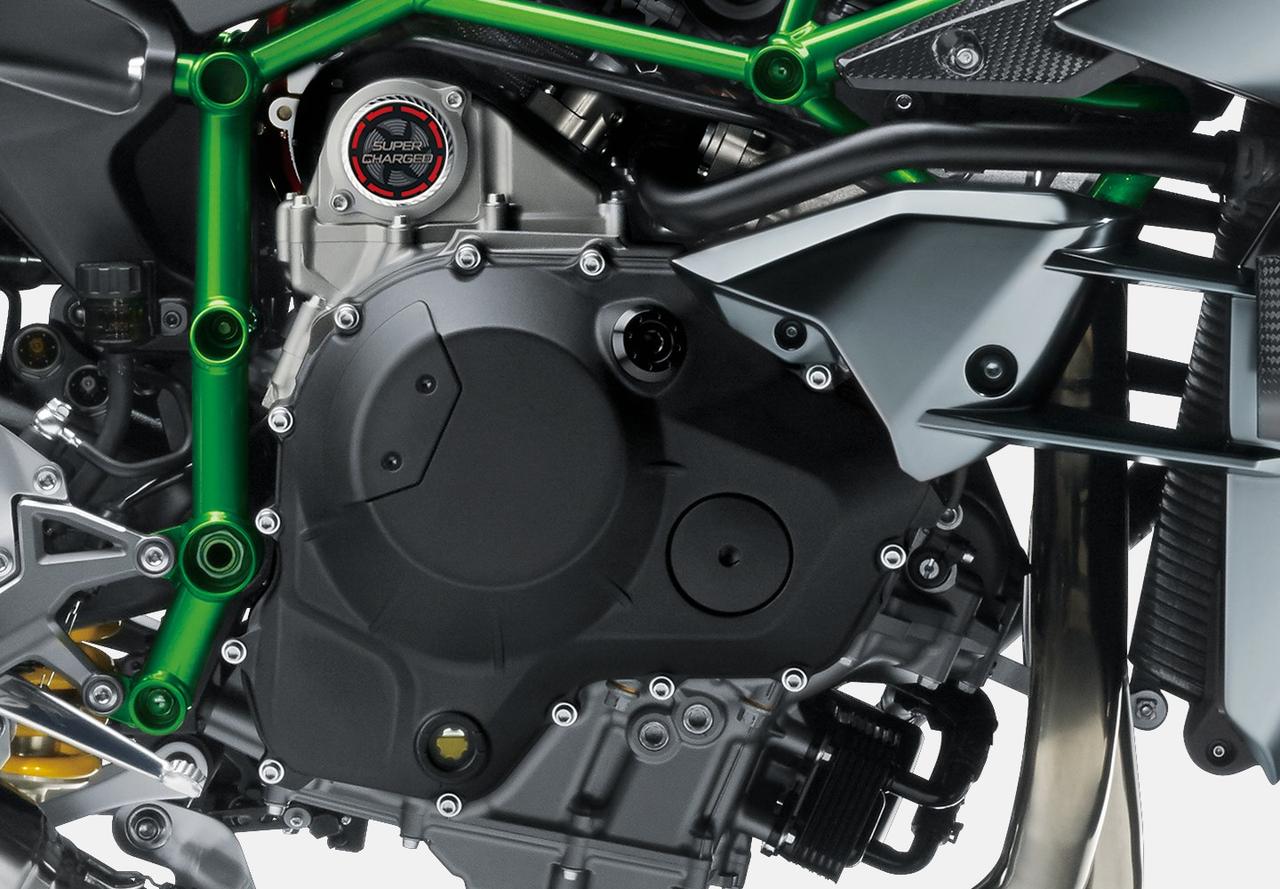

^{Standard trellis frame structure used across Ninja H2 models, engineered for high strength and torsional rigidity. (}Kawasaki⁾

All models are built on a high-tensile steel trellis frame, but the H2 SX features a longer and reinforced chassis to accommodate passenger and luggage loads. Braking systems generally rely on radial-mount Brembo calipers; the H2 and H2R models use dual 330 mm semi-floating front discs, while the H2 SX series employs dual 320 mm semi-floating discs. Ride safety is optimized across all models through the standard and model-specific configuration of KIBS (Kawasaki Intelligent Brake System)^【15】.
