RDE (Rotating Detonation Engine)

The Rotating Detonation Engine (RDE) is an innovative engine type that converts chemical energy into thrust through detonation waves at high pressure and temperature, differing from conventional propulsion systems. Instead of deflagration—the subsonic combustion process used in classic jet engines and rockets—RDEs employ detonation, where the combustion wave propagates at supersonic speeds. This approach theoretically offers higher thermal efficiency, specific impulse, and reduced fuel consumption.

RDE technology has been known and studied since the 1960s, but progress has until recently awaited advances in composite materials. In recent years, active development has been undertaken by entities including GE and NASA, as well as institutions in the United Kingdom, France, and China.

Operating Principle

RDEs feature a ring-shaped (annular) combustion chamber in which a continuous rotating detonation wave is sustained. Inside the chamber, two concentric cylinders are arranged, and the explosion occurs in the annular gap between them. Ignition follows a cyclic sequence, causing compressed air to rotate between the cylinders. This rotating wave continuously sustains detonation.

The high-energy release from the detonation exits the exhaust as shock waves. This high-pressure, short-duration combustion process enables energy to be converted into thrust far more efficiently. Compared to conventional engines, the same power output can be achieved with 25–30% less fuel.

Structural Features and Challenges

The RDE design eliminates the need for complex mechanical components found in piston or turbine systems by achieving constant-volume combustion. This results in a more compact structure. The absence of moving parts theoretically enhances reliability. However, manufacturing the engine as a single-piece component, particularly using composite material technologies, remains highly challenging and costly.

Another technical challenge is air intake. Since RDEs lack moving parts within the system for air compression, an external compressor-like system is required. GE has developed a hybrid solution addressing this issue by integrating a compressor at the front end. This system initially operates like a turbofan and can be shut down after acceleration or supplemented by a rocket motor.

Industrial Developments and Tests

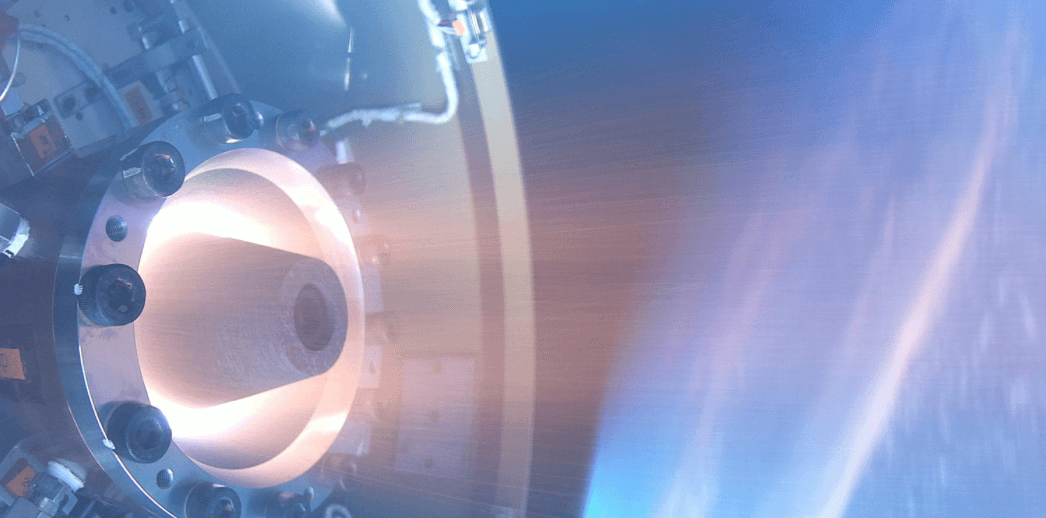

Engineers at a laboratory in Connecticut, USA, successfully tested an RDE engine. Development efforts began at the RTX Technology Research Center, where active RDE research has been ongoing since 2011. Pratt & Whitney has partnered with Raytheon (a missile technology company) to begin work on an RDE prototype.

Chris Hugill from Pratt & Whitney’s GatorWorks team noted that test results have exceeded expectations. According to Hugill, the RDE offers advantages such as high efficiency, power density, compact size, and additional space for fuel, sensors, or payload, thereby increasing system range. It also provides easier maintenance and production due to its reduced part count.

A closed chamber where combustion occurs - RTX

High-speed airflow drawn into the chamber during flight, enabling precise fuel mixture formation - RTX

Fuel injection and ignition of the detonation wave -RTX

Conversion of energy into thrust - RTX

In the paper titled "Operation of a Fully Integrated Rotating Detonation Combustor in a T63 Gas Turbine Engine," presented at Turbo EXPO 2024, the integration of RDE technology into a turbo-shaft engine was examined.

In this context, the Air Force Research Laboratory (AFRL) developed a Rotating Detonation Combustor (RDC) designed to replace the main combustion chamber of the Rolls-Royce T63 turbo-shaft engine. The system was operated using gaseous hydrogen and demonstrated stable performance throughout all tests.

During six-minute tests, the RDC initially exhibited deflagrative combustion (subsonic), then transitioned to detonative combustion (supersonic) as air and fuel flow rates increased. This demonstrated that the RDE can operate stably under varying conditions in practice.

Design and Physical Challenges

Steven Burd, Chief Engineer of Advanced Military Engines at Pratt & Whitney, emphasized that although RDE designs appear simple, their physical implementation is highly challenging. One of the greatest challenges is fuel injection. To generate an effective detonation wave, air and fuel must be mixed with extreme precision and delivered under exact conditions.

As a result, additive manufacturing technologies have become central to the production process. Burd also stated that the RDE is among the most "disruptive" technologies he has worked on in his career.

Thermodynamic Advantages and the PGC Concept

RDEs offer significant thermodynamic advantages because they use detonative combustion as their primary mechanism. Unlike conventional deflagrative systems, this process generates beneficial effects such as increased static pressure.

This concept is known in the literature as Pressure Gain Combustion (PGC). As a result, the engine can achieve the same performance with fewer compressor stages, reducing both size and weight.

However, integrating an RDE into a gas turbine system carries certain risks. One of the major unanswered questions is how turbines will respond to such irregular, high-frequency shock waves. Turbines are typically designed for steady, uniform flow, whereas inside an RDE, shock waves rotating at speeds of 1–2 km/s create complex flow conditions.

AFRL has been conducting various turbine adaptation studies since 2013 to address this issue.
