SAMUR Mobile Swimmer Assault Bridge

The SAMUR Mobile Amphibious Assault Bridge is the first contracted land vehicle project developed through Türkiye’s indigenous design and development process. Created by FNSS to meet the Turkish Armed Forces’ river crossing operational requirements, this system is a multi-purpose military engineering vehicle designed to operate effectively in modern combat environments through its high mobility and amphibious capabilities.

The SAMUR system was entirely designed by FNSS engineers using domestic capabilities. The design process prioritized both tactical operational effectiveness and logistical sustainability. Developed on a concept similar to the 8x8 PARS tactical wheeled armored vehicle platform, it shares key automotive subsystems such as the engine, transmission, and suspension, ensuring ease of integration and maintenance. SAMUR also features a multi-purpose structure capable of supporting civil defense operations during natural disasters such as floods.

Thanks to its independent suspension and 8x8 powertrain system with steering capability on all axles, SAMUR delivers high off-road mobility over rough, muddy, and loose terrain. The system can negotiate gradients of up to 60 percent incline and 30 percent side slope, traverse obstacles up to 0.5 meters in height, and cross ditches up to 2 meters wide. The steering capability of all axles significantly reduces the vehicle’s turning radius, enabling exceptional maneuverability even in confined spaces.

The diesel-powered system is equipped with a fully automatic seven-forward, one-reverse transmission. On land, SAMUR achieves a maximum speed of 76 km/h, while on water it reaches up to 10 km/h using twin jet pumps. When operating on water, the system provides 360-degree maneuverability, enabling precise point turns for high agility. The vehicle’s operational range exceeds 600 kilometers.

SAMUR measures 13 meters in length, 3.5 meters in width, and 3.95 meters in height. Its adjustable ride height allows the ground clearance to vary between 0 and 0.65 meters. Weighing 36,000 kilograms, the vehicle distributes a load of 9,000 kilograms per axle, ensuring low ground pressure and extending tire life. The system accommodates a crew of three.

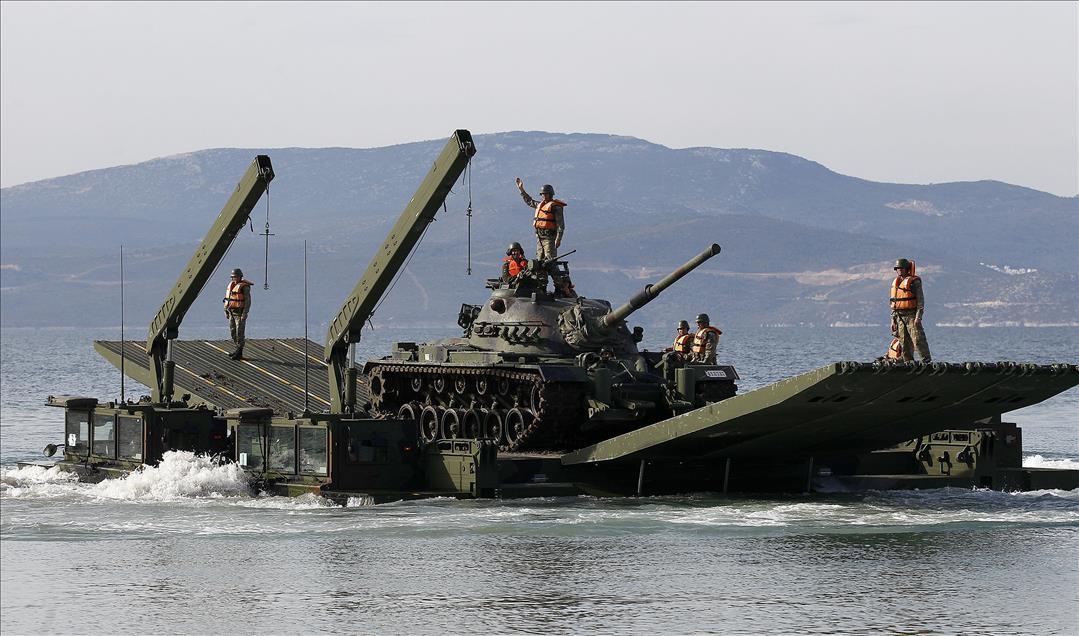

The SAMUR system enables military vehicles to cross water obstacles through various configurations. A single SAMUR unit in ferry mode can transport tracked vehicles up to the AYS 21 class (21 tons). A two-vehicle tandem transport configuration achieves a capacity of AYS 85 P (85 tons tracked vehicles), while a three-vehicle configuration provides capacity for AYS 120 T (120 tons wheeled vehicles). By connecting the ramps of these units, mobile amphibious assault bridges can be constructed.

Eight SAMUR vehicles can form a 100-meter-long bridge configuration capable of supporting the passage of AYS 85 P and AYS 120 T class vehicles. A 12-vehicle configuration enables the construction of a 150-meter bridge. Thanks to its ability to carry its own ramps, the system can be operationally deployed without requiring additional support vehicles. These bridges can be assembled in a maximum of 10 minutes even under combat conditions.

The SAMUR system is equipped with various defense and support systems to ensure safe operations on the battlefield. The crew cabin provides ballistic protection in accordance with NATO STANAG 4569 standards. The vehicle is fitted with a standard CBRN (chemical, biological, radiological, and nuclear) protection system, along with an automatic fire suppression system, portable fire extinguishers, and fixed fire suppression equipment. An air conditioning system is also included as standard equipment.

Designed according to the principle of self-sufficiency, the system enables the recovery of both itself and other units without reliance on external vehicles or support, thanks to integrated support equipment such as a winch. The electrical system includes two 12-volt, 120-ampere-hour batteries and dual 140-ampere brushless alternators. The system is also equipped with emergency and shore anchoring gear. An electronic data communication infrastructure facilitates easy fault detection.

The SAMUR Mobile Amphibious Assault Bridge stands out as an integrated crossing system capable of meeting the dynamic demands of modern battlefields, offering high mobility, amphibious capability, and operational flexibility. With NATO-standard protection, the ability to carry its own ramps, and unique features within its class, SAMUR is regarded as one of Türkiye’s indigenous engineering achievements in defense technology.
