Switch (Electrical)

A switch is a fundamental circuit element used to control the flow of electric current. By interrupting or completing the conductive path in an electrical circuit, it can stop or direct the current. This function makes the switch a vital component for operating and controlling electrical devices.

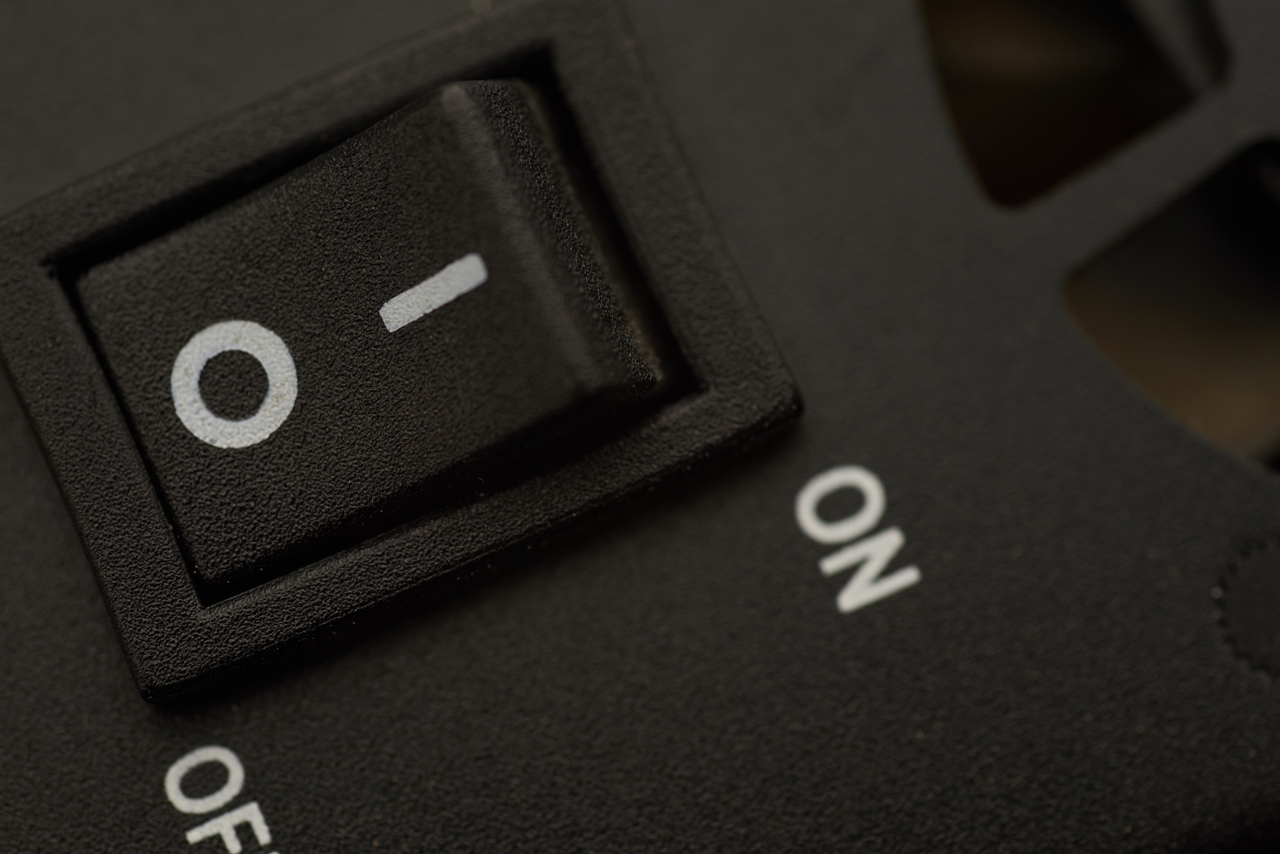

Toggle switch (Source:Vecteezy)

Types of Switches

Switches are manufactured in various types to meet different needs. Broadly, they can be categorized into two main groups: mechanical switches and solid-state switches.

Mechanical Switches

Mechanical switches are devices that open or close a circuit through physical movement. Some common types include:

• Toggle Switches: Switches operated by a lever that is flipped to turn the circuit on or off, commonly used for lighting control in homes. Some models use spring mechanisms to provide a momentary action.
• Push-button Switches: Switches activated by pressing, typically used to temporarily complete a circuit. Some push-button switches toggle between on and off positions with each press.
• Selector Switches: Switches that can be positioned in multiple settings using a rotating knob or lever, used to control different circuits.
• Joystick Switches: Switches that operate through multidirectional movement, commonly used in industrial control systems such as crane or robot control.
• Limit Switches: Switches that detect machine motion, often used for safety purposes. For example, they identify when a machine has reached its operational limit.
• Proximity Switches: Switches that sense the presence of metal objects without physical contact. They operate using magnetic or high-frequency fields and are typically effective at distances of less than an inch.
• Process Switches: Switches that monitor physical variables such as temperature, pressure, or flow, used to control industrial processes. For example, a temperature switch opens or closes a circuit when a specific threshold is reached.

Different industrial switch types (Source:pixabay)

Solid-State Switches

Solid-state switches are devices constructed using semiconductor materials. Since they contain no moving mechanical parts, they offer faster operation and longer lifespan. Important types of solid-state switches include:

• Diodes: Switches that allow current to flow in only one direction, used in rectification applications. For example, power diodes operate at 50–60 Hz frequencies, while fast-recovery diodes are used in high-frequency applications.
• Transistors: Available in various forms such as Bipolar Junction Transistors (BJT), Metal-Oxide-Semiconductor Field-Effect Transistors (MOSFET), and Insulated-Gate Bipolar Transistors (IGBT). MOSFETs are preferred for low-power and high-frequency applications, while IGBTs are favored for medium- and high-power applications.
• Thyristors: Thyristors such as Silicon-Controlled Rectifiers (SCR), Gate-Turn-Off Thyristors (GTO), and triacs are used in high-power applications. For instance, triacs are widely used in light dimming circuits.

Solid-state switches are particularly important for energy efficiency and high-power applications. Their development has supported advancements in energy systems. This information is derived from an article published in the academic journal Micromachines (Power Electronic Switches).

Function of Switches in Circuits

Switches are used to control the flow of current in circuits. When a switch is closed (ON), the circuit is completed and current flows. When open (OFF), the circuit is broken and current stops. This enables devices to be turned on or off. For example, a light switch in a home completes the circuit to turn on a lamp and breaks it to turn it off. In more complex circuits, switches can control multiple paths or serve logical functions in digital electronics. For instance, a SPDT (Single Pole Double Throw) switch can direct current between two different circuits.

Residential switches and outlets (Source:freepik)

Applications and Importance

Switches are widely used in both everyday life and industrial environments. Some key application areas include:

• Residential Applications: Used to control lighting, electrical appliances, and entertainment systems. For example, a wall switch turns lights on or off.
• Industrial Applications: Used for machine operation, safety systems, and process control. Limit switches ensure machines operate within safe boundaries.
• Automotive: Used in applications such as ignition switches and lighting controls.
• Electronics: Used as keyboard keys, power buttons, and function selectors.
• Process Control: Used to monitor and control physical variables such as temperature, pressure, flow, or level.

Switches play a critical role in electrical systems for safety, control, and automation. From a safety perspective, switches isolate circuits to prevent electric shocks or fires. In terms of control, they allow users to turn devices on or off as needed. In automation systems, switches provide automatic control based on environmental conditions, enhancing efficiency and reliability.
