TEBER Guidance Kit

Quote
TEBER Guidance Kit
Developer
ROKETSAN
Variants
TEBER-81TEBER-82TEBER-83
Length
2.3 m (TEBER-81)2.7 m (TEBER-82)
Weight
150 kg (TEBER-81)260 kg (TEBER-82)
Range
23 km (TEBER-81)(Aircraft)8 km (TEBER-81)(UAV)28 km (TEBER-82)(Aircraft)13 km (TEBER-82)(UAV)30 km (TEBER-82)(UAV)(fixed wing)
Guidance
Inertial Measurement UnitGlobal Positioning SystemLaser Seeker Head

TEBER Guidance Kit is a guidance system developed by Roketsan to enable MK-81 and MK-82 general-purpose bombs to strike targets with high precision. This system transforms conventional bombs into smart munitions, providing effective strike capability against both fixed and moving targets. The TEBER is designed for use with combat aircraft, fixed-wing aerial platforms, unmanned aerial vehicles (UAVs), and attack unmanned aerial vehicles (UCAVs) such as the Bayraktar Akıncı.


TEBER Guidance Kit (Anadolu Agency)

Technical Specifications

The guidance system integrates Inertial Measurement Unit (IMU), Global Positioning System (GPS), and semi-active Laser Seeker Head (LSH) technologies. This enables the bombs to strike targets with high accuracy. Additionally, an optional proximity sensor feature is available.

Reference: Roketsan’s published TEBER Guidance Kit catalog.


The TEBER guidance kit has been developed for compatibility with multiple platforms. It consists of three main variants: TEBER-81, TEBER-82, and TEBER-83. The TEBER-81 is adapted for the MK-81 bomb, while the TEBER-82 is designed for the larger MK-82 bomb.


The TEBER can be employed against a variety of targets including military buildings, light armored vehicles, fixed and moving targets, and bunkers.

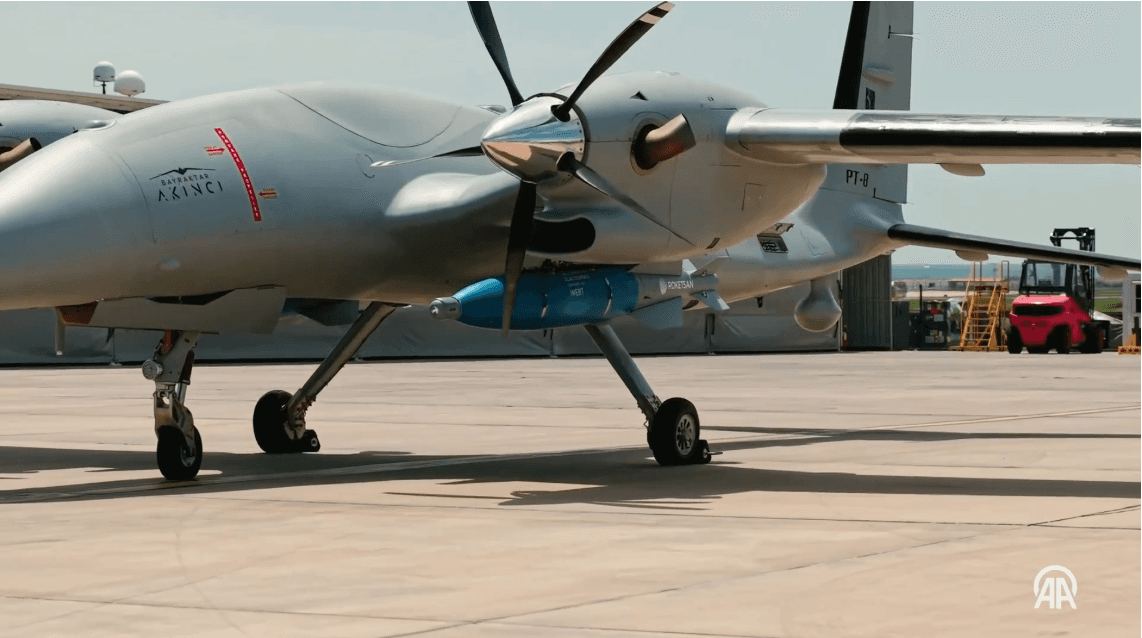

Bayraktar Akıncı TEBER Guidance Kit firing test (Baykar Technologies)
