Yamaha MT-09

Yamaha MT-09 is a road motorcycle model developed by the Japanese motorcycle manufacturer Yamaha and positioned in the "Hyper Naked^【1】" segment. First introduced in 2013, the MT-09 aims to deliver high performance and agile riding dynamics using Yamaha's CP3 (Crossplane Concept 3 Cylinder)^【2】 engine. The model is designed with an aggressive and minimalist aesthetic, placing riding enjoyment at the forefront.

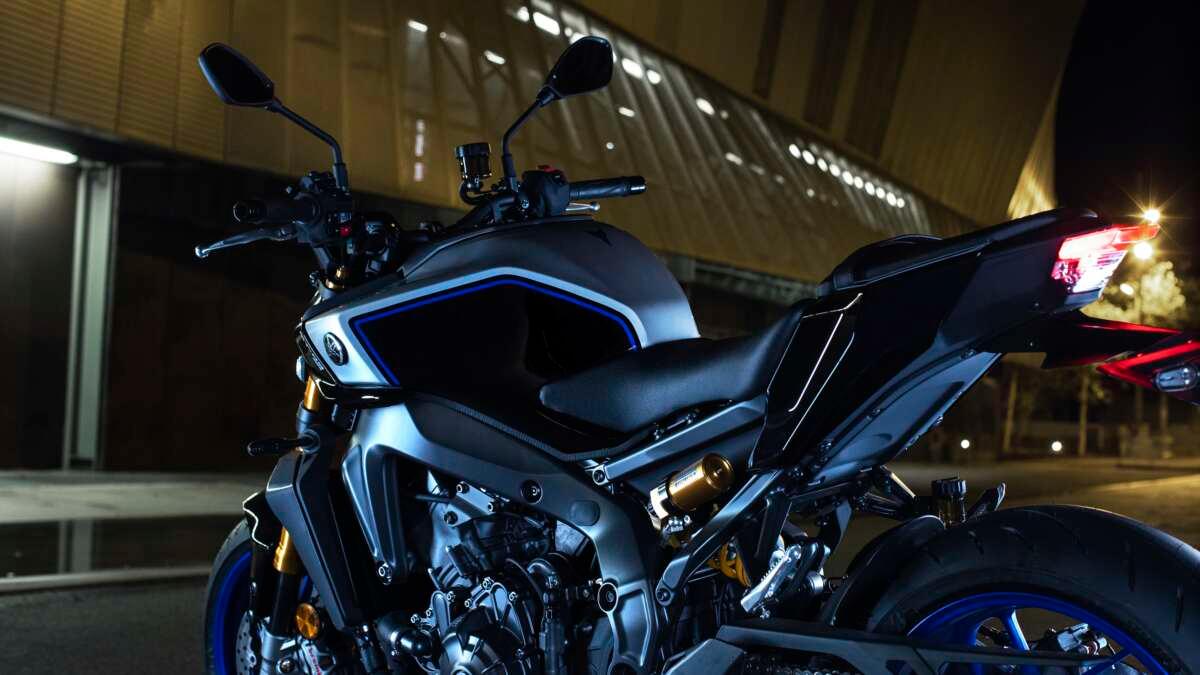

Yamaha MT-09 ()

Design and "Hyper Naked" Aesthetic

The MT-09's design forms the foundation of Yamaha's "Hyper Naked" philosophy. This philosophy embraces a minimalist yet aggressive appearance that reflects the motorcycle's power and agility. The exposed engine and frame uphold the "naked bike" concept.

Key design elements:

• Compact and Aggressive LED Headlights: Particularly in 2021 and later models, a central single or dual LED headlight design stands out.
• Muscular and Short Body: Features a compact structure that rises sharply from the front and ends with a short rear tail.
• Exposed CP3 Engine: The three-cylinder engine block serves as an aesthetic focal point and integral part of the design.
• Minimalist Fairing: A functional body structure free of unnecessary panels, featuring sharp and clean lines.

Engine Specifications and Power Delivery

The Yamaha MT-09 draws its power from an 890 cc liquid-cooled, inline three-cylinder CP3 (Crossplane Concept 3-Cylinder) engine. This engine is renowned for its strong torque output at low and mid-range RPMs, delivering a dynamic acceleration experience.

Main engine and transmission features:

• Engine Type: Liquid-cooled, four-stroke, DOHC, four valves per cylinder, inline three-cylinder (CP3).
• Engine Displacement: 890 cc (previously 847 cc in earlier generations).
• Maximum Power: Approximately 119 PS (87.5 kW) @ 10,000 rpm.
• Maximum Torque: Approximately 93 Nm @ 7,000 rpm.
• Fuel System: Electronic fuel injection system (YCC-T – Yamaha Chip Controlled Throttle).
• Transmission: Six-speed manual gearbox.

The engine is integrated with the Assist and Slipper Clutch (A&S Clutch)^【3】 system. This system helps prevent rear wheel lockup during downshifts and provides a lighter feel on the clutch lever.

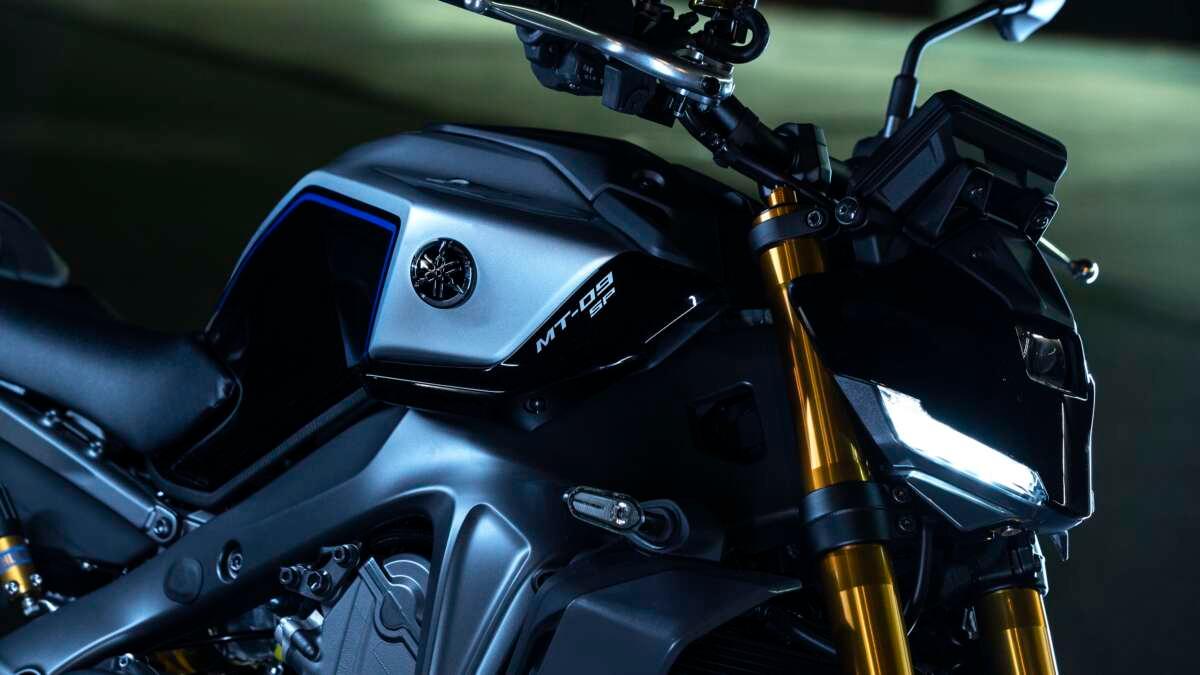

Yamaha MT-09 ()

Chassis, Suspension and Braking Systems

The MT-09's chassis is constructed from lightweight aluminum Deltabox frame. This chassis design determines the motorcycle's agility, stability and road-holding characteristics. The suspension and braking systems are configured to meet the model's sporty and dynamic riding expectations.

Details of the chassis, suspension and braking systems:

• Chassis: Lightweight aluminum Deltabox frame.
• Front Suspension: Typically features a fully adjustable 41 mm inverted (USD) telescopic fork (e.g., premium KYB or Öhlins on SP models).
• Rear Suspension: Equipped with an adjustable link-type monoshock rear suspension system (typically Öhlins on SP models).
• Braking System: Dual front disc brakes with radial-mount calipers and a single rear disc brake. Anti-lock Braking System (ABS) is standard.
• Wheels and Tires: Lightweight alloy wheels and tires matched to the motorcycle's performance requirements.

Yamaha MT-09 ()

Electronic Systems and Rider Aids

The Yamaha MT-09 incorporates comprehensive electronic systems and rider aids designed to enhance control, safety and overall riding experience.

Key electronic features:

• 6-Axis IMU (Inertial Measurement Unit): Detects the motorcycle's motion in three-dimensional space, forming the foundation for multiple electronic systems.
• Traction Control System (TCS): Monitors and controls rear wheel slip, with adjustable sensitivity levels.
• Slide Control System (SCS): Allows controlled rear wheel slide during corner exits.
• Wheelie Control System (LIF): Monitors and manages front wheel lift.
• Brake Control System (BC): Optimizes ABS effectiveness during braking while leaned over in corners.
• Riding Modes (D-Mode): Offers different modes to adjust engine power delivery and throttle response.
• Quick Shift System (QSS): Enables clutchless upshifts and downshifts.
• Full-Color TFT Display: Presents all riding information through a clear and colorful interface.

Market Position and Competitive Landscape

The Yamaha MT-09 is positioned in the mid-to-upper class Hyper Naked segment of the motorcycle market. It stands out with the distinctive torque characteristics of its CP3 engine, lightweight and agile chassis, and comprehensive electronic package. The model enjoys a broad user base across numerous global markets.

Its main competitors include the Kawasaki Z900, Triumph Street Triple, Ducati Monster 937, Honda CB750 Hornet and KTM 890 Duke.
